ALL ON Trigger Input
A 3.5mm mono interconnect cable is used for the ALL ON Trigger Input connection. This Turn-On
Trigger activates ALL channels.
When the trigger is active all channels turn on.
When the trigger is not active all channels turn off.
(See note on triggers on page 41)

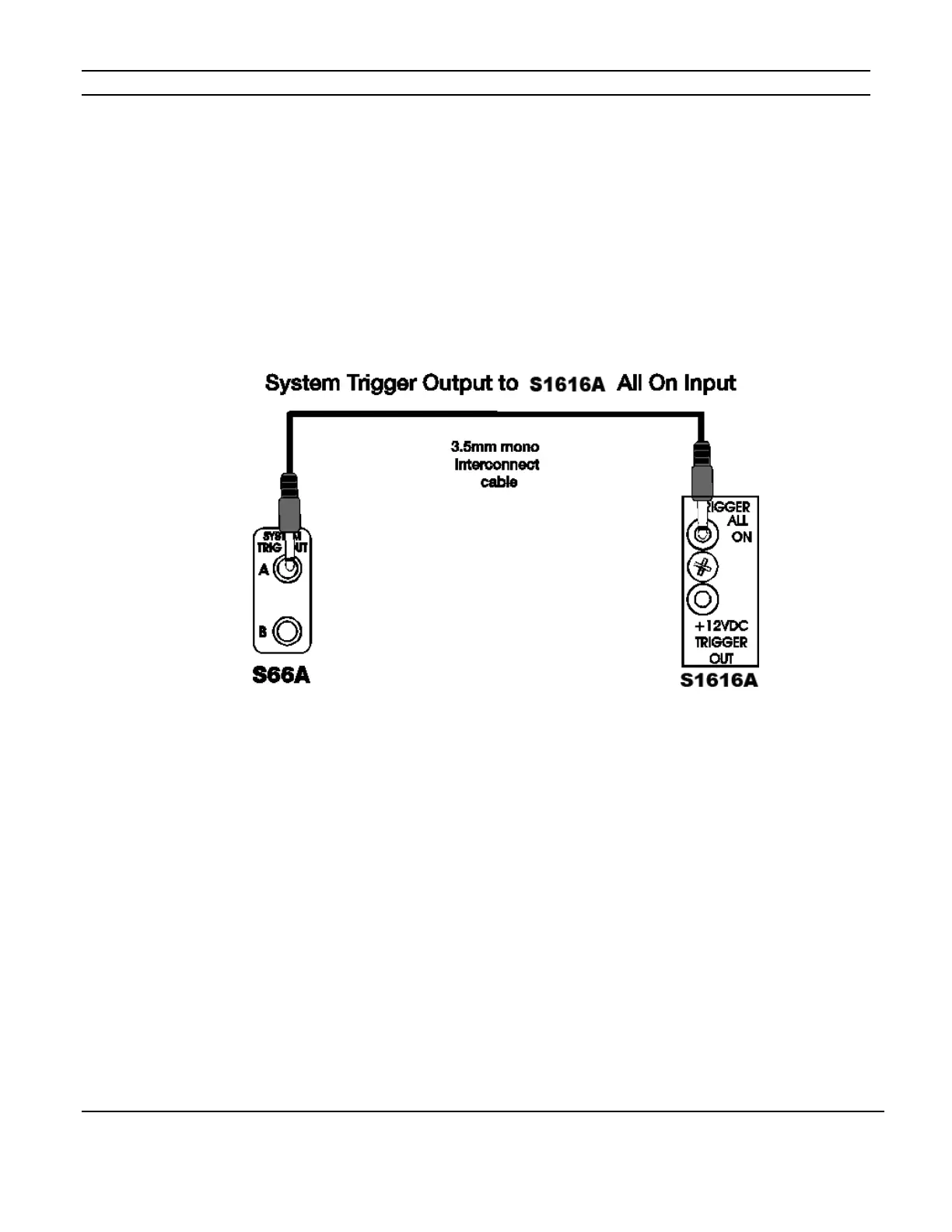

Figure 3-7 S1616A All On Trigger Connections
