18 Replace the belt in the reverse manner in
which it was removed.
Refer the Turbine Blower Belt Tension
Adjust Procedure for correct belt
tensioning.
19 Install the belt guard in place on the
blower.
20 Install the two (2)
1
/
4
-20 x
3
/
4
" socket
head cap screws which retains the belt
guard and tighten it securely using a
3
/
16
"
Allen wrench.
21 For systems configured with Slide-Out
blower access, re-install the M8 x 50 hex
head bolt, M8 nut, M8 lock and flat
washers, and 3/4" spacers removed in
step 9 of this procedure.
For systems configured without Slide-Out
blower access, position the blower
assembly aligned with the mounting holes,
then re-install the three (3) front most
blower base plate mounting bolts (M8 x
35) of the four (4) that were removed in
step 10A.
22 Replace the blower manifolds and secure
them with the hose clamps.

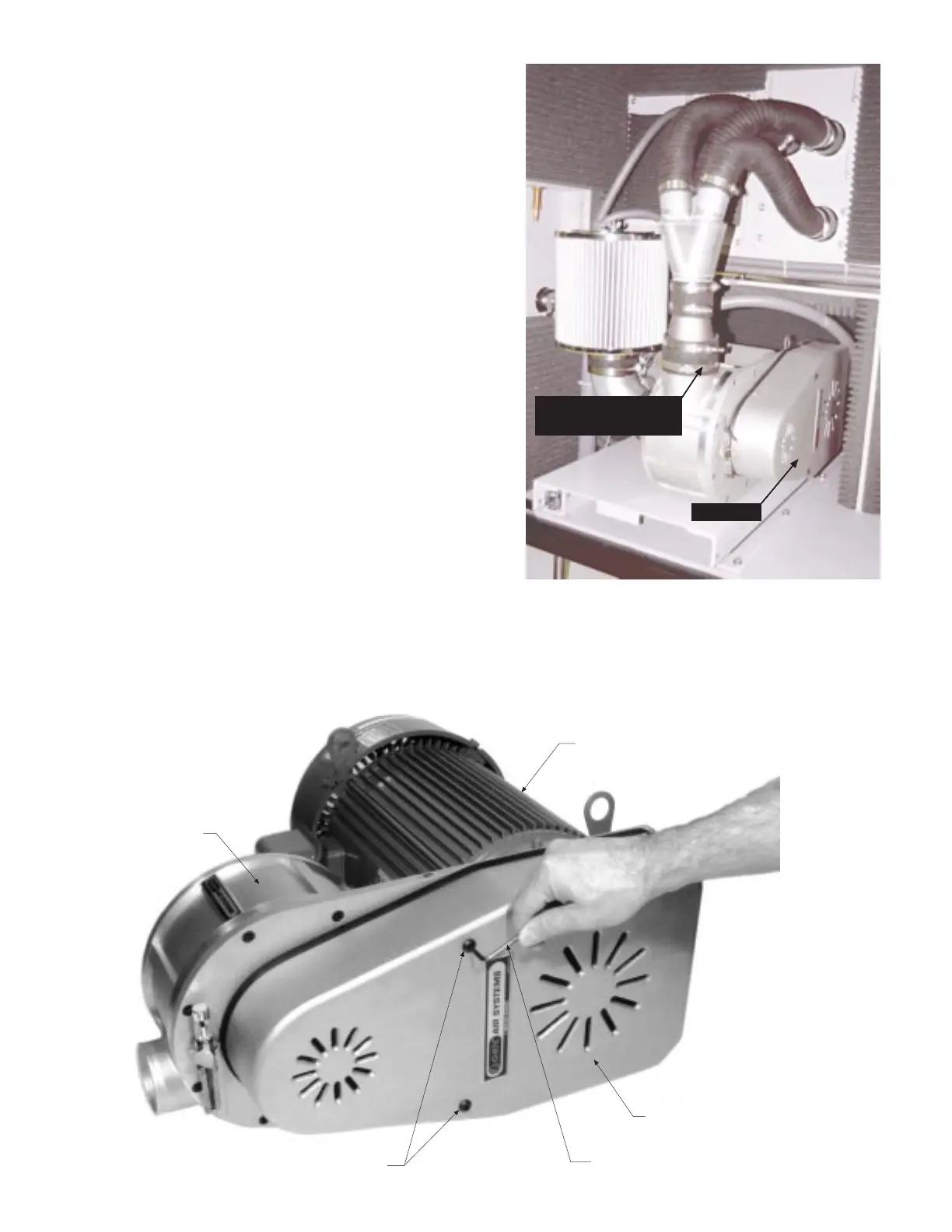

Turbine Blower
Blower Motor
Blower Belt Cover
3/16" Allen Wrench
1/4-20 x 3/4" Socket Head Screws
23 Tighten the hose clamps securely using a
5
/
16
" nut driver so not to allow air leakage
while the blowers are in operation.
24 Replace the turbine blower access panels.
