1.6 ALARM PROCESS SCREEN
This feature allows the user to configure process
alarm configurations for the following processes:
• Wash high and low temperatures
• Chemical Isolation high and low temperatures
• Rinse high and low temperatures
• Radiant heater high and low temperatures
• Conveyor speed deviation
• Resistivity Level deviation
• pH level deviation
• Saponifier tank level
Perform the following steps in the order they
are presented to set the ALARM_PROCESS
values.

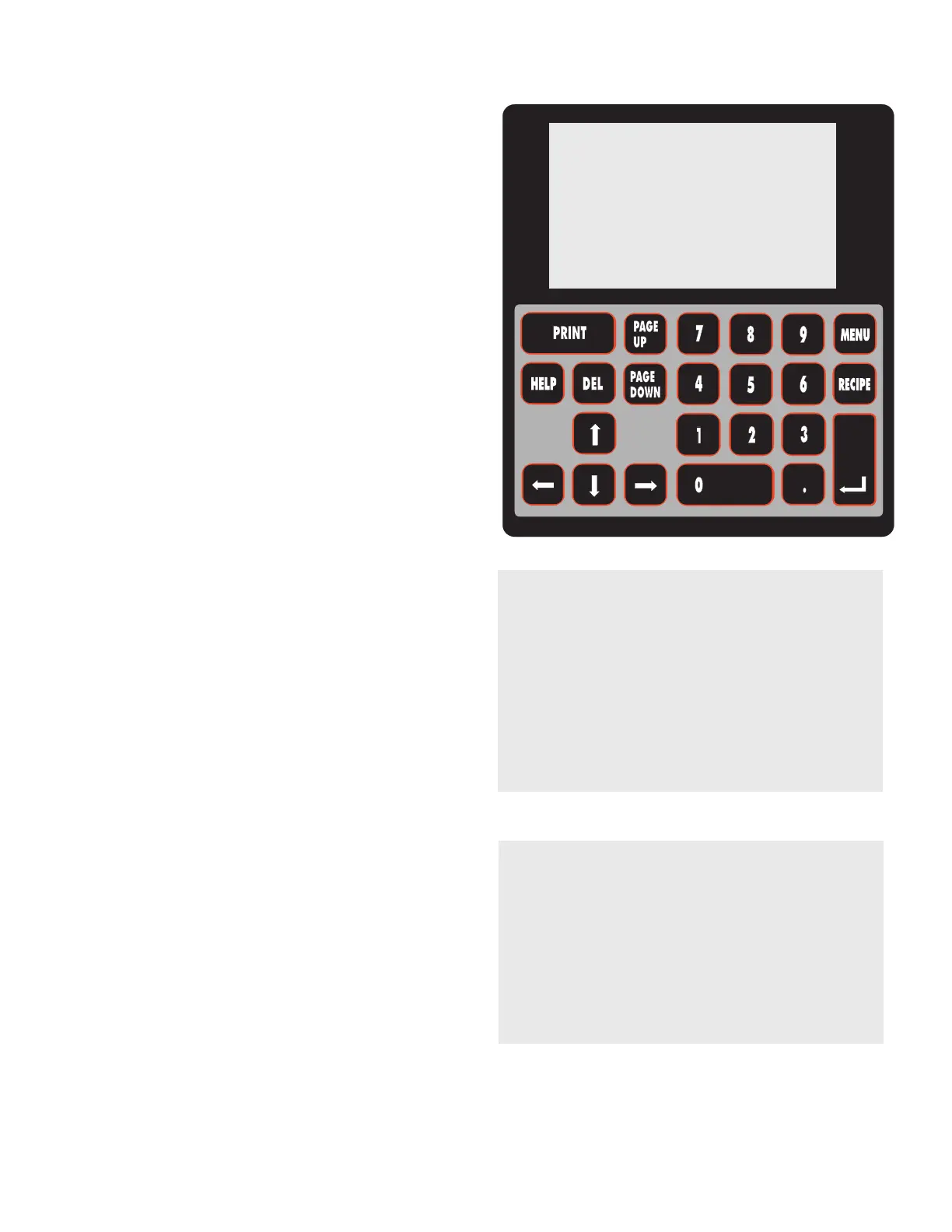

1 To access ALARM_PROCESS, press the
MENU key on the LCD interface keypad
to go to the Configuration Screen.
MODEL 200
TEMP_UNITS F
SPEED_UNITS F/ Min
CHECKMATE NO
pH MONITOR YES
WASH PUMP HURRICANE
RINSE PUMP HURRICANE
CONFIGURATION
C/I HEATER YES
LIGHT TOWER YES
BOARD_TRACKING YES
SYS_CLOCK SET
ALARM_PROCESS SET
WATCH_DOG TEST
ALARM LIMIT ACTION REALARM
WASH 10 F SHUTDOWN 05 MIN
CHEM 10 F IGNORE 05 MIN
RINSE 10 F SHUTDOWN 05 MIN
IR 10 F WARNING 05 MIN
CONV 0.5 F WARNING 05 MIN
RESIS > 18 IGNORE 05 MIN
pH < 4.0 IGNORE 05 MIN
2 Press the Page Down key twice to go to
page three (3) of the Configuration
Screen.
3 Press the Down Arrow key until the
underscore cursor is in line with
ALARM_PROCESS SET, then press
the ENTER key on the LCD interface
keypad.
The ALARM_PROCESS screen is
displayed on the LCD.
