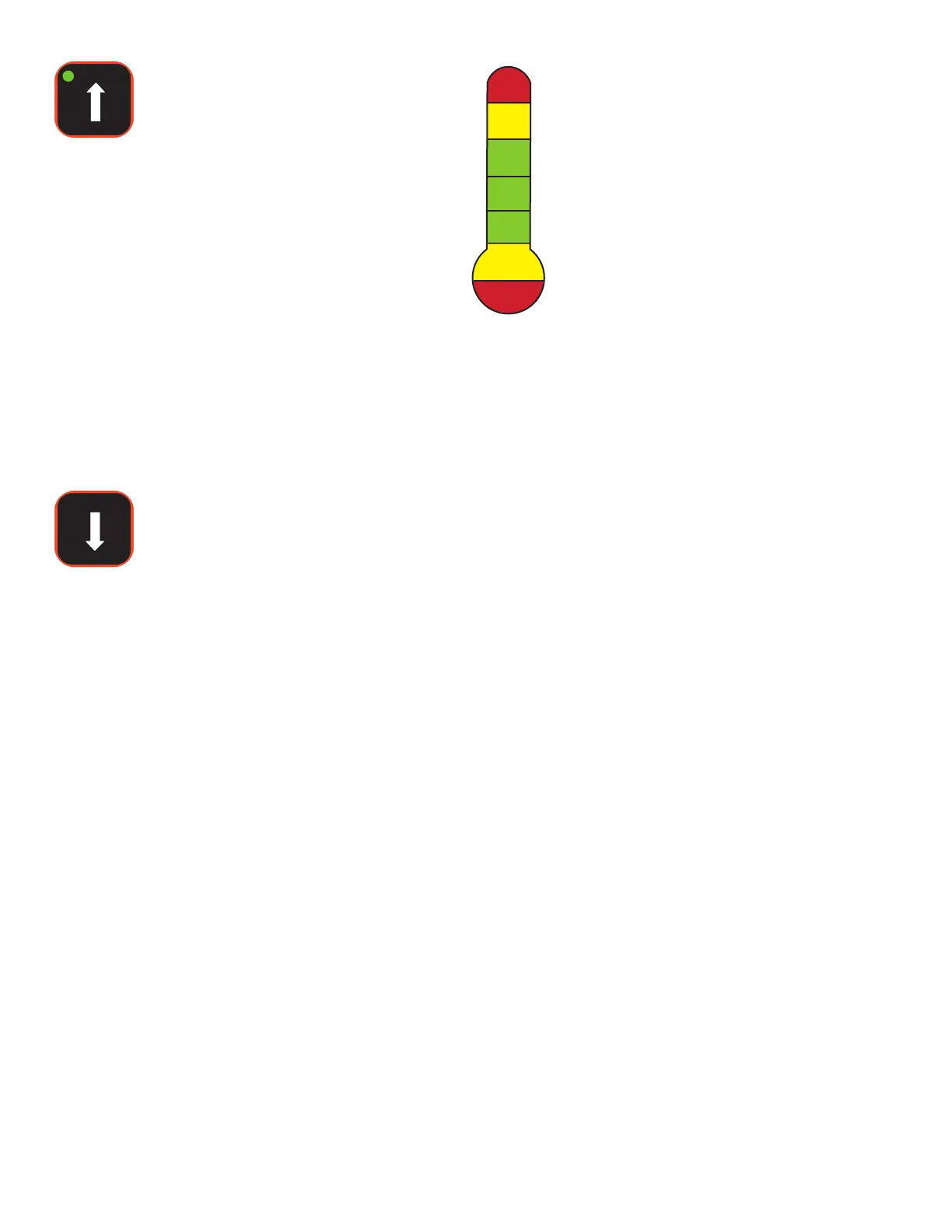

Radiant Heater Increase
Temperature
Press the Radiant Heater Increase Temperature
control to increase the radiant heater
temperature set point.
When pressed once and released, the
temperature set point is increased one
(1) degree.
When the control is pressed and held,
the heater's temperature set point is
increased until the control is released.
NOTE Actual temperature and
temperature set point are visible
on the LCD.
Radiant Heater Decrease
Temperature
Press the Radiant Heater Decrease Temperature
control to decrease the radiant heater
temperature set point.
When pressed once and released, the
temperature set point is decreased one
(1) degree.
When the control is pressed and held,
the heater's temperature set point is
decreased until the control is released.
NOTE Actual temperature and
temperature set point are visible
on the LCD.
Dryer High/ Low
Temperature Indicator
NOTE Only the Process Alarms
configured into the Process Alarms
screen with WARNING or SHUTDOWN
action selected will sound an audible
alarm.
Instructions provided here assume
WARNING or SHUTDOWN is selected
to sound an alarm.
Hardware configured alarms will always
sound when activated.
If the dryer cabinet temperature exceeds 82
o
C
(180
o
F), the following will occur:
• Audible alarm sounds
• Alarm acknowledge indicator flashes
•Dryer high temperature red indicator
illuminates
• Optional status tower flashes red
• LCD displays "Dryer High Temp Alarm"
• Radiant heaters are disabled
• System shuts down
If the dryer cabinet temperature exceeds set point
temperature by the value set for alarming (see
page 3-29 Alarm Process Screen), the following
will occur:
• Audible alarm sounds
• Alarm acknowledge indicator flashes
•Dryer high temperature red indicator
illuminates
• Optional status tower flashes red
• LCD displays "Dryer High Temp Alarm"
• Radiant heaters are disabled
• System shuts down
If the dryer cabinet temperature falls below set
point temperature, by the value set for alarming
(see page 3-29 Alarm Process Screen), the
following will occur:
• Audible alarm sounds
• Alarm acknowledge indicator flashes
•Dryer low temperature red indicator
illuminates
• Optional status tower flashes red
• LCD displays "Dryer Low Temp Alarm"
Normal operating temperature is indicated when
the green LED on the indicator is illuminated.
