Aquastorm 200
1-4 Overview
SECTION 2 DESCRIPTION
The Aquastorm 200™ Aqueous Cleaning System provides automated, aqueous
cleaning and removal of contaminated fluids and particles from PWAs (Printed
Wiring Assemblies), resulting from wavesoldering and reflow processes, in
the following sequence:
2.1 PROCESS ZONE AREA
(See figure below for zone locations)
1. Prewash - 36 cm (14 inches)
2. Heated Recirculating Wash - 122 cm (48 inches)
3. Drag Out/ Enhanced Chemical Isolation - 91.44 cm (35 inches)
4. Heated Recirculating Rinse - 122 cm (48 inches)
5. Fresh Water Final Rinse - 46 cm (18 inches)
6. Blower Drying Station #1 - 76 cm (30 inches)
7. Blower Drying Station #2 - 76 cm (30 inches)
Optional Additional Drying Stations - (Not pictured)
8. Blower Drying Station #3 - 76 cm (30 inches)
9. Blower Drying Station #4 - 76 cm (30 inches)
1
2
3
4
5
6
7

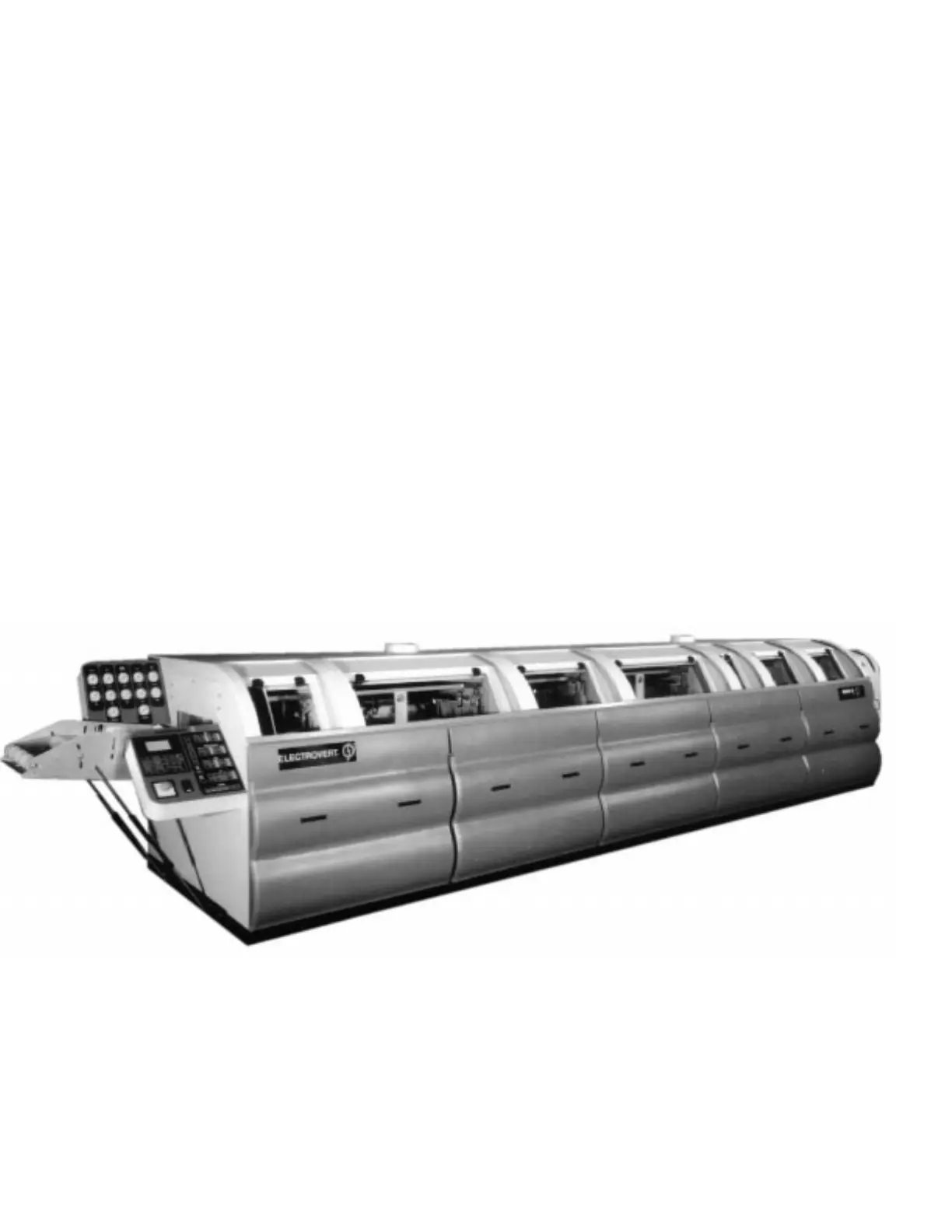

Process Zone Areas of the Aquastorm 200™
