Aquastorm 200
3
3
Start-Up and Operation 3-3
1.2 MEMBRANE KEYPAD
CONTROLS
The main group of controls form the custom Membrane Keypad. The controls are
arranged in a functional flow diagram. The purpose of each control is shown with a
distinct symbol. (Refer to the Control Panel Quick Reference 11 x 17" pull-out page).
NOTE The system disconnect, supplied
with 380 and 460 V systems only,
must be turned on to supply power
to the system and controls.

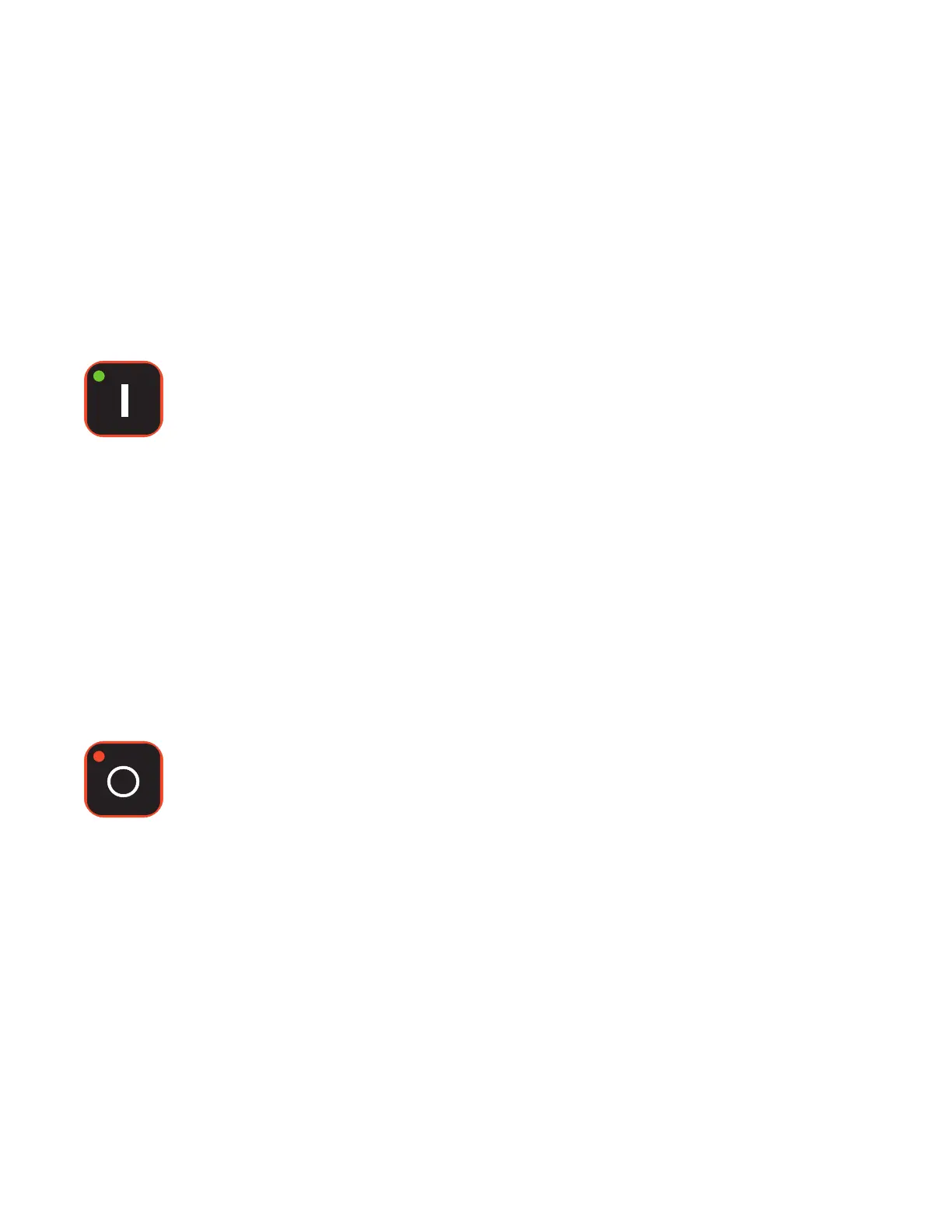

Power On Control
The Power On Control enables power to all stages
of the Aquastorm 200
™
.
Press the Power On Control to enable power.
The Power On green indicator
illuminates to indicate power is on.
When power is activated the tank heaters
activate if the tanks are at operating
levels.
Power Off Control
Press the Power Off Control to disable power to
all stages of the Aquastorm 200
™
.
When pressed, the Power Off red
indicator illuminates.
Any subsystems that were operating
immediately shut off.
The Power On indicator turns off.
The Conveyor Off indicator illuminates.
Tank temperature indicators remain
illuminated.
