Electrovert Aquastrom 200 - Turbine Blower Belt Tensioning Procedure

Aquastorm 200
4-56 Maintenance
3.7 TURBINE BLOWER BELT
TENSIONING PROCEDURE
Tool Kit Required for the Turbine Blower Belt
Replacement Procedure
5
/16" Nut Driver
13 mm Open End Wrench
9
/16" Open End Wrench
3
/4" Drive Socket
3
/8" Drive Ratchet with
3
/8" Drive 2.0" Extension
3
/16" Allen Wrench
Krikit II Belt Tension Gauge
Flashlight
1 Press the Main Power Off Control via
the membrane keypad.
2 Turn off the main power disconnect for
Aquastorm 200
™
system.
3 Locate the blower sections at the rear exit
end of the Aquastorm 200
™
cabinet.
4 Remove the rear blower section access
panels.

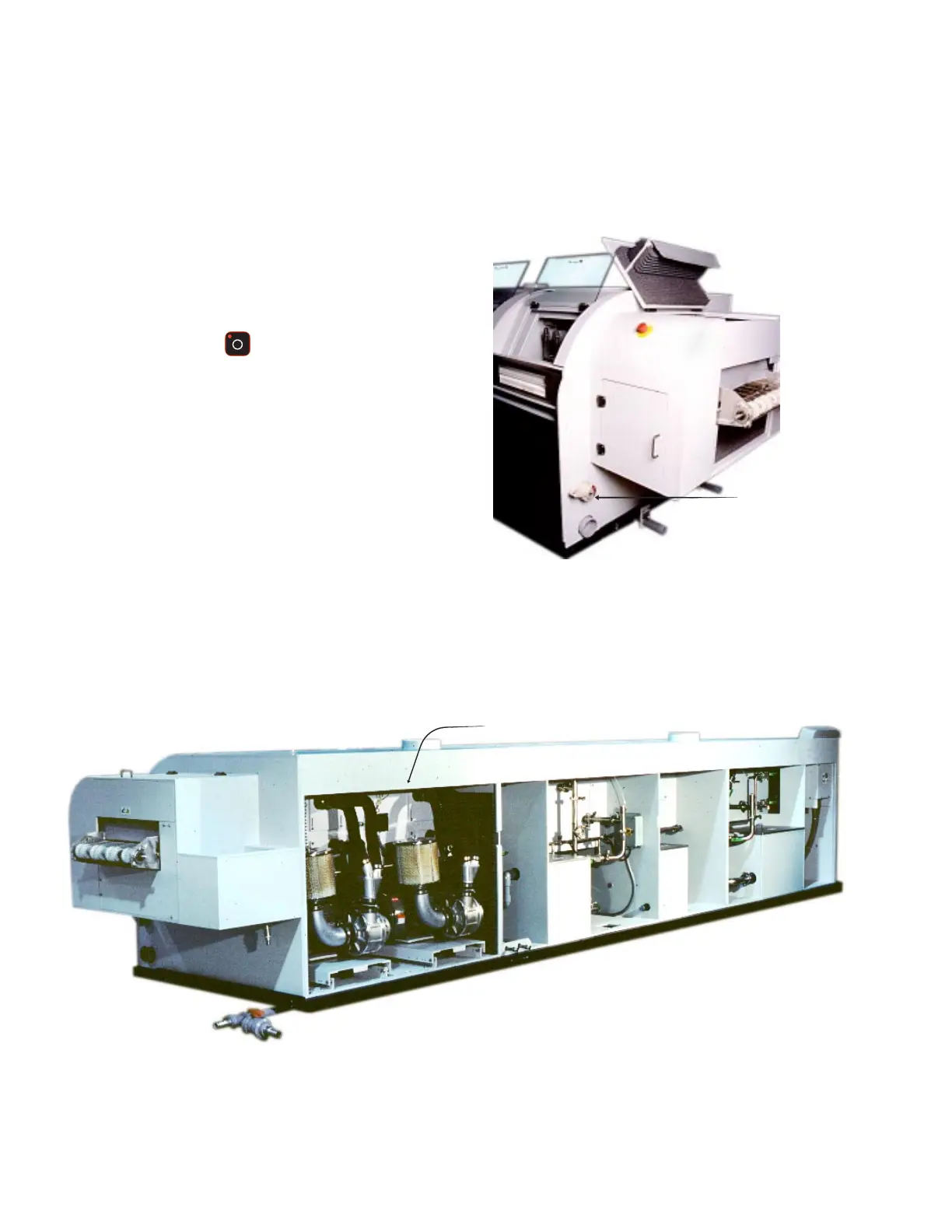

Rear View of Aquastorm 200 with Rear Access Panels Removed
Blower Sections
Main Power Disconnect
