Elmo L-12 User Manual

6
English
BASIC
OPERATIONS


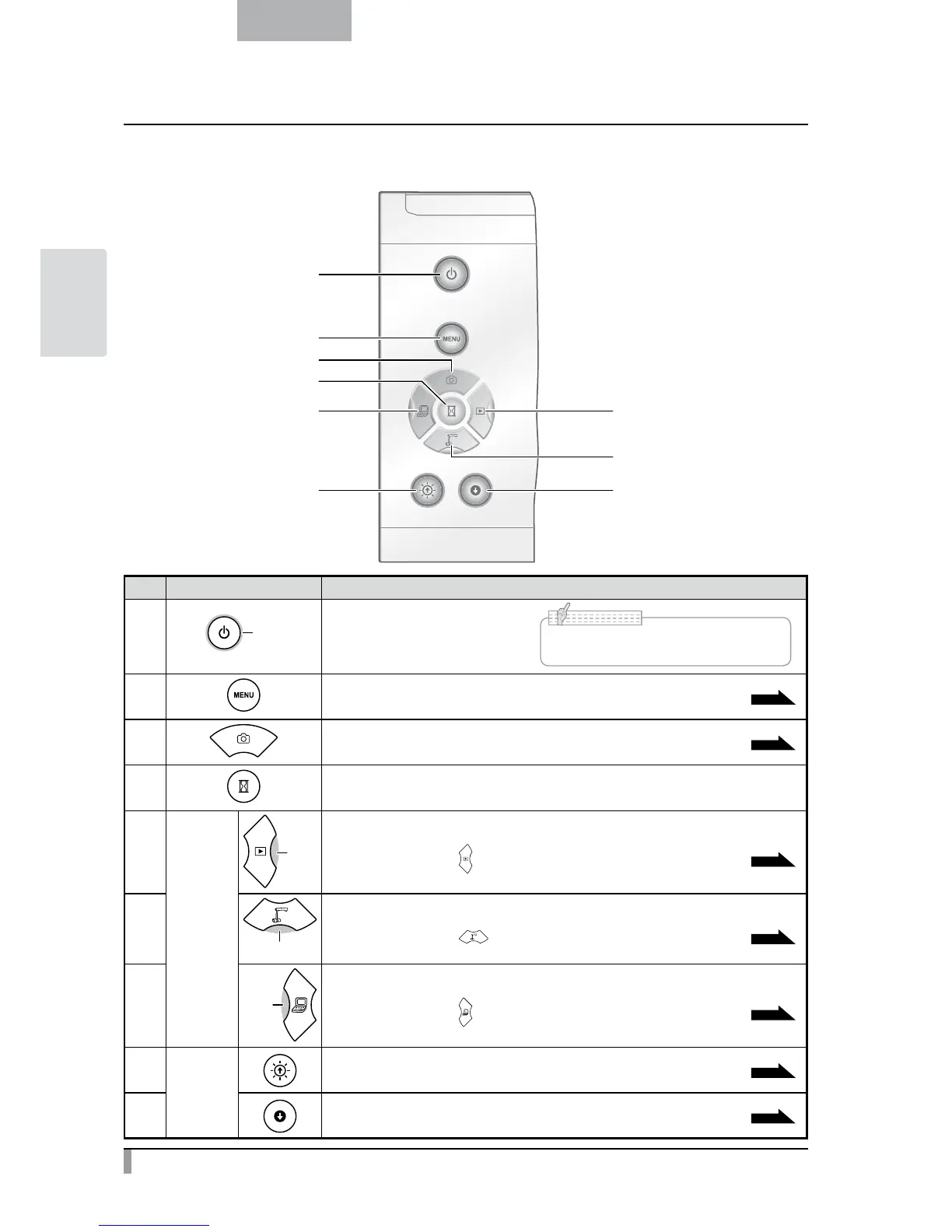

Operating panel
⑧
⑦
①
②
③
④
⑨
⑥
⑤
Mark Function
①
LED
To turn the power ON/OFF.
Power ON: Blue light
Power OFF (standby status): Red light
②
To show/hide the menu on screen.
P.21
③
To save the still image on the SD card/USB flash drive.
P.38
④
To pause the camera image. Press this button again to restart.
⑤
select
LED
To switch the screen to images stored on the SD card/USB flash drive.
The LED is lit when the [
] button is selected.
P.20
⑥
LED
To switch the screen to camera image.
The LED is lit when the [ ] button is selected.
P.20
⑦
LED
To switch the screen to the image input to RGB IN.
The LED is lit when the [ ] button is selected.
P.20
⑧
Brightness
Adjust
To brighten the camera image.
P.17
⑨
To darken the camera image.
P.17
• Press and hold for more than 2 seconds
to turn the power OFF.
N o t e

Elmo L-12 Specifications

General

Sensor type	CMOS
Image freeze	-
White balance	Auto, Manual
Maximum frame rate	30 fps
Optical sensor size	1/2.8 \
Effective sensor resolution	3.4 MP
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1920 x 1080 (HD 1080)
Auto focus	Yes
Digital zoom	8 x
Optical zoom	12 x
Shooting area (WxD)	420 x 313 mm
Maximum focal length (f)	48 mm
USB connector type	USB Type-A
USB 2.0 ports quantity	2
VGA (D-Sub) input ports	1
Lamp type	LED
Product color	White
Camera movement	Manual
AC input voltage	100-240 V
Operating voltage	12 V
Power supply type	AC
Power consumption (typical)	17.5 W
Cables included	AC, USB

Weight and Dimensions

Depth	373.5 mm
Width	355 mm
Height	426.5 mm
Weight	3200 g
Dimensions folded (WxDxH)	195 x 294 x 469 mm
