Mask Function
This is a function to mask a section of an image.

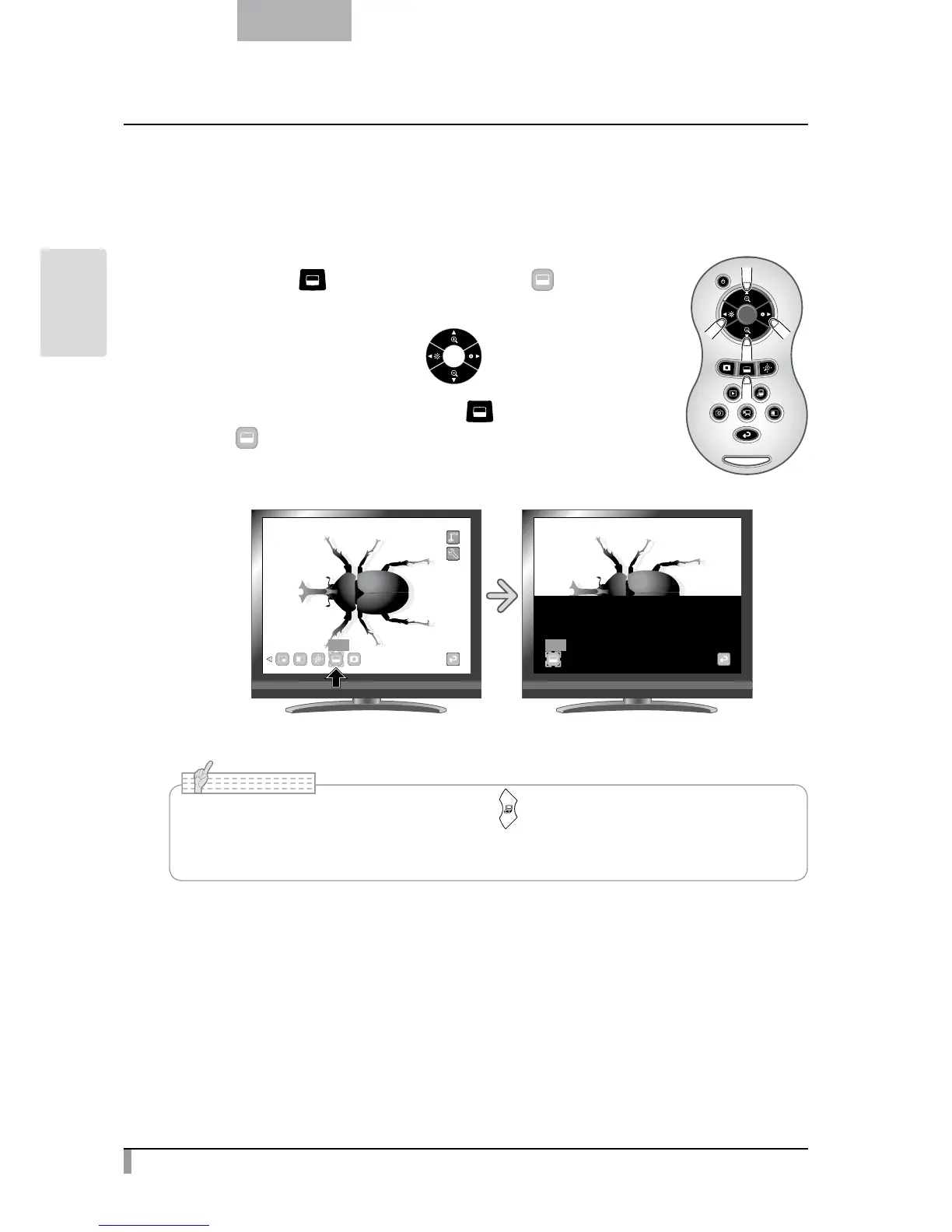

Mask operations
When you press the [ ] button on the remote control or [ ] on the menu
while a camera image or a Play mode is displayed, the mask effect is applied with
the darkness set previously.
You can move the masked area using the [
] buttons on the remote
control.
The mask display is cleared when you press the [
] button on the remote
control or [
] on the menu again.
Mask
Mask
• The Mask function cannot be used when the [ ] button is selected in the Image
Selection.
• Masked image cannot be captured.
N o t e

Elmo L-12 Specifications

General

Sensor type	CMOS
Image freeze	-
White balance	Auto, Manual
Maximum frame rate	30 fps
Optical sensor size	1/2.8 \
Effective sensor resolution	3.4 MP
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1920 x 1080 (HD 1080)
Auto focus	Yes
Digital zoom	8 x
Optical zoom	12 x
Shooting area (WxD)	420 x 313 mm
Maximum focal length (f)	48 mm
USB connector type	USB Type-A
USB 2.0 ports quantity	2
VGA (D-Sub) input ports	1
Lamp type	LED
Product color	White
Camera movement	Manual
AC input voltage	100-240 V
Operating voltage	12 V
Power supply type	AC
Power consumption (typical)	17.5 W
Cables included	AC, USB

Weight and Dimensions

Depth	373.5 mm
Width	355 mm
Height	426.5 mm
Weight	3200 g
Dimensions folded (WxDxH)	195 x 294 x 469 mm
