Elmo L-12 User Manual

33
English
BASIC
OPERATIONS

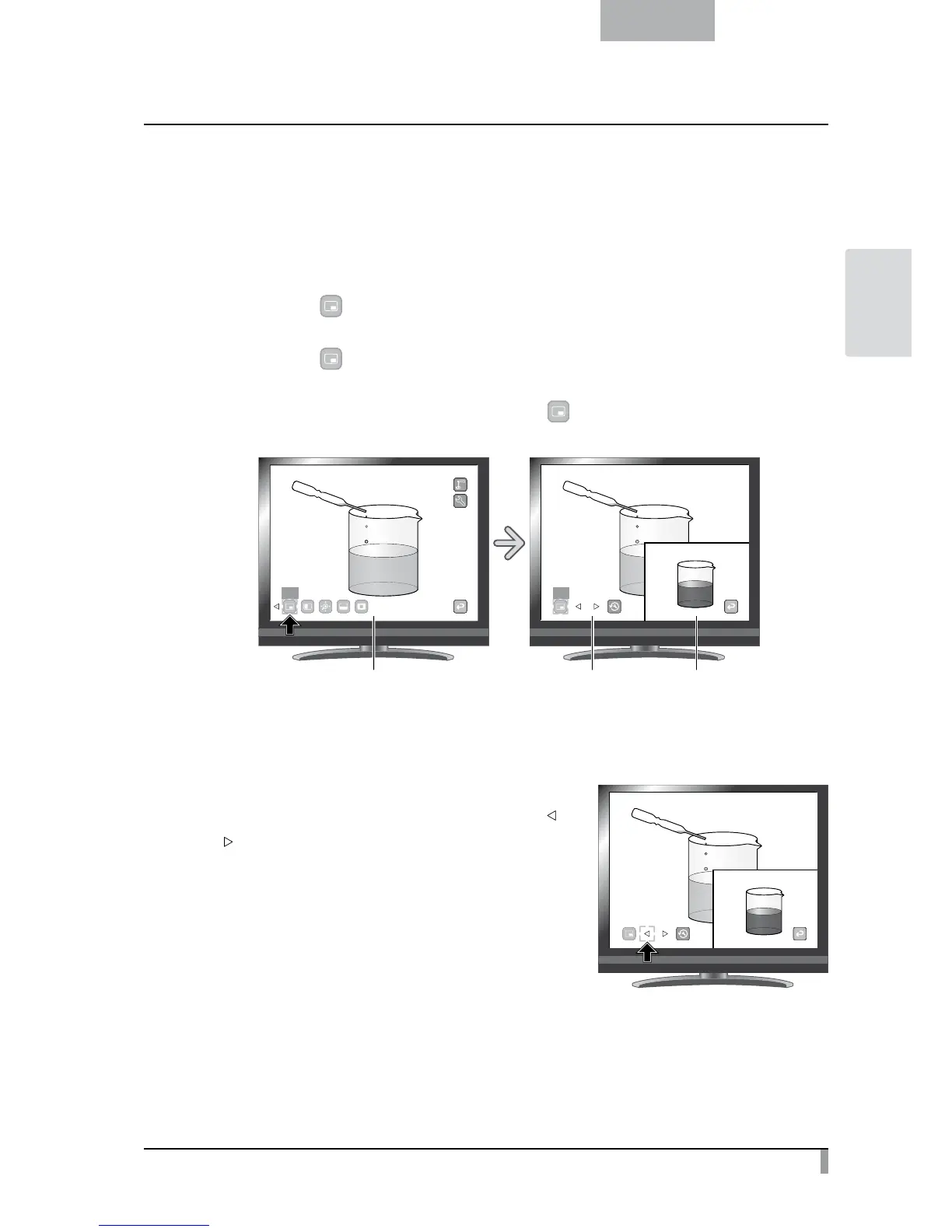

Picture in Picture Function
To display either a picture stored on the SD card/USB flash drive or a camera image at the bottom right of
the screen.
Picture in Picture Operations
When you press the [ ] on the menu, while a camera image is displayed, the picture stored on the SD
card/USB flash drive is displayed at the bottom right of the screen.
When you press the [
] on the menu, while the picture stored on the SD card/USB flash drive is
displayed, a camera image is displayed at the bottom right of the screen.
The Picture in Picture effect is cleared when you press the [
] on the menu again.
PIP
Camera image
PIP
Camera image Picture
Changing the still picture
You can change the picture displayed on the screen to an other
picture stored on the SD card/USB flash drive by selecting [
]
or [ ] on the menu, while the picture in picture function is
working.

Elmo L-12 Specifications

General

Sensor type	CMOS
Image freeze	-
White balance	Auto, Manual
Maximum frame rate	30 fps
Optical sensor size	1/2.8 \
Effective sensor resolution	3.4 MP
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1920 x 1080 (HD 1080)
Auto focus	Yes
Digital zoom	8 x
Optical zoom	12 x
Shooting area (WxD)	420 x 313 mm
Maximum focal length (f)	48 mm
USB connector type	USB Type-A
USB 2.0 ports quantity	2
VGA (D-Sub) input ports	1
Lamp type	LED
Product color	White
Camera movement	Manual
AC input voltage	100-240 V
Operating voltage	12 V
Power supply type	AC
Power consumption (typical)	17.5 W
Cables included	AC, USB

Weight and Dimensions

Depth	373.5 mm
Width	355 mm
Height	426.5 mm
Weight	3200 g
Dimensions folded (WxDxH)	195 x 294 x 469 mm
