Elmo L-12 User Manual

15
English
BASIC
OPERATIONS

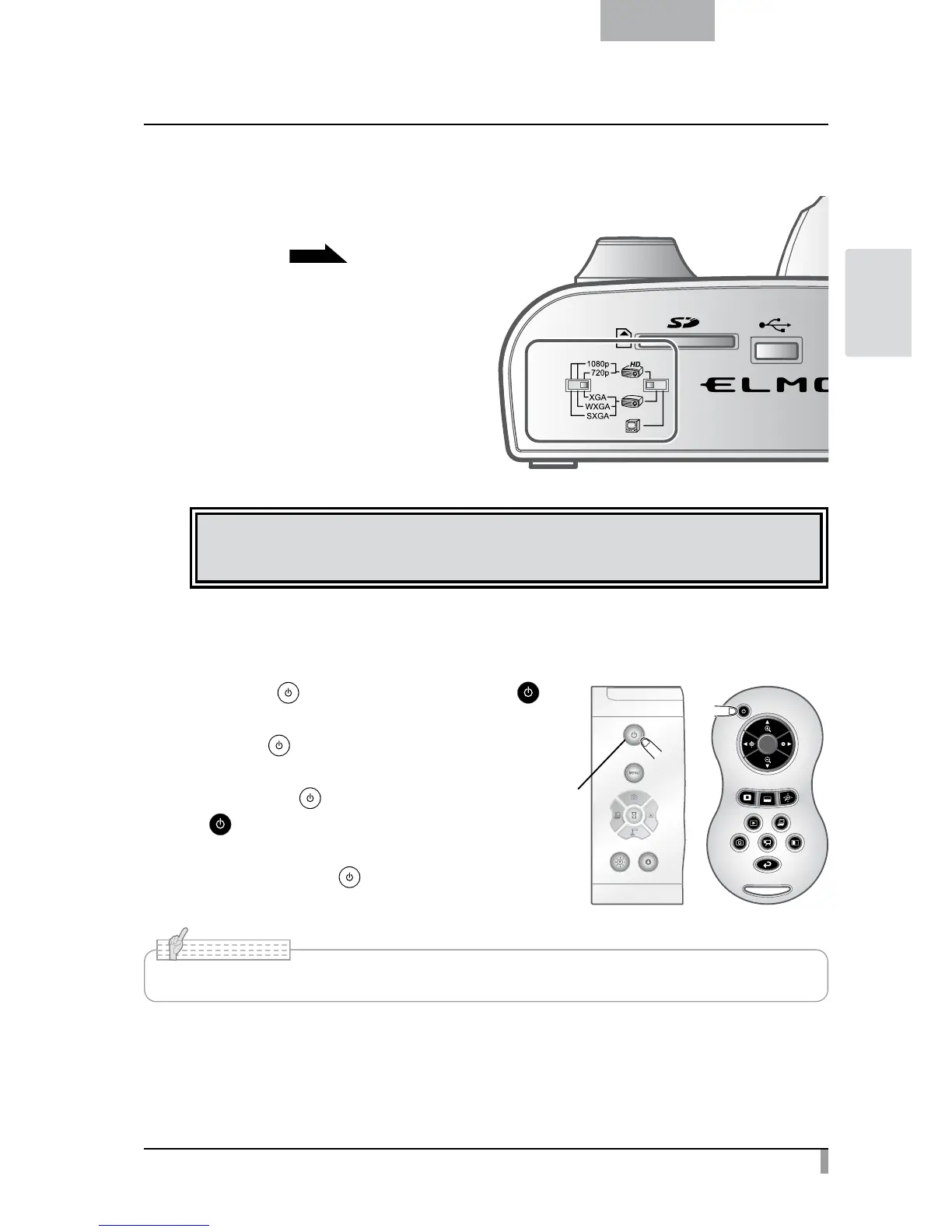

Connecting the video cable
①
Mo ve t h e sw it ch on th e s i d e pa ne l
according to the specification of the display
device.
P.10
②
Use the cable corresponding to the switch
position specified in
①
to connect the
document camera to the display device.
CAUTION
Before connecting the main unit to other devices, be sure to turn OFF the power for all of the devices.

Turning the power ON/OFF
• Press the [ ] on the operating panel or the [ ]
button on the remote control to turn the power ON.
(After the [
] Button flashes blue, it is illuminated a few
seconds later.)
•
Hold down
the [
] button on the operating panel or the
[
] button on the remote control for two seconds or
more to turn the power OFF.
(The LED around the [
] button is illuminated in red.)
• Do not operate this device while it is flashing.
N o t e
LED

Elmo L-12 Specifications

General

Sensor type	CMOS
Image freeze	-
White balance	Auto, Manual
Maximum frame rate	30 fps
Optical sensor size	1/2.8 \
Effective sensor resolution	3.4 MP
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1920 x 1080 (HD 1080)
Auto focus	Yes
Digital zoom	8 x
Optical zoom	12 x
Shooting area (WxD)	420 x 313 mm
Maximum focal length (f)	48 mm
USB connector type	USB Type-A
USB 2.0 ports quantity	2
VGA (D-Sub) input ports	1
Lamp type	LED
Product color	White
Camera movement	Manual
AC input voltage	100-240 V
Operating voltage	12 V
Power supply type	AC
Power consumption (typical)	17.5 W
Cables included	AC, USB

Weight and Dimensions

Depth	373.5 mm
Width	355 mm
Height	426.5 mm
Weight	3200 g
Dimensions folded (WxDxH)	195 x 294 x 469 mm
