Elmo L-12 User Manual

14
English
BASIC
OPERATIONS

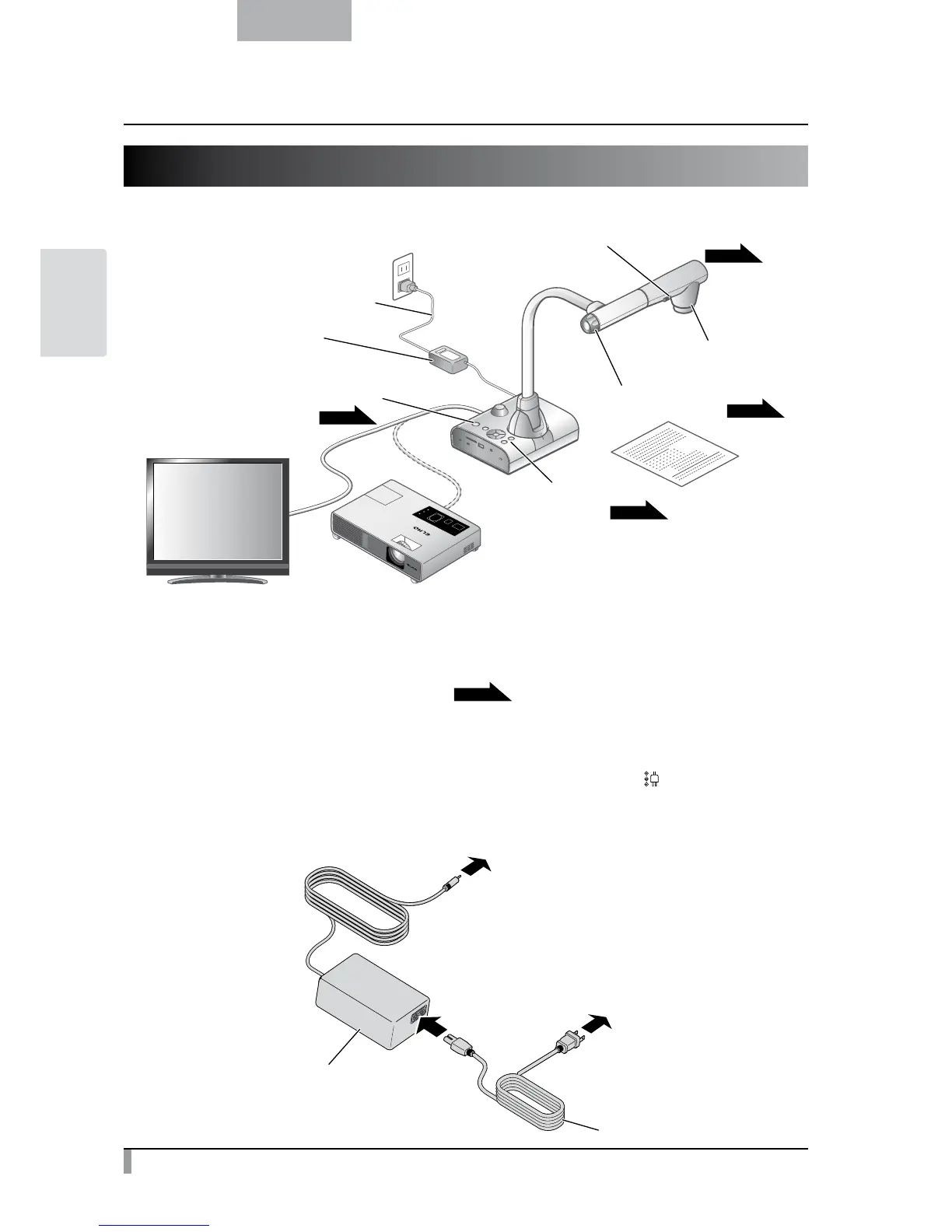

2-3 Shooting Images
Camera
ON/OFF switch for illumination
Zoom dial for size adjustment
Brightness Control button
Power button
AC adapter
AC cord
P.19
P.16
P.17
P.15

Setting up the main unit
Set up the main unit as shown in the figure above. Then connect the main unit to a projector or a PC
monitor, and turn on the power of the main unit.
P.15
Connecting the AC cord
Connect the AC cord and the AC adapter. Then connect the AC adapter to the [
DC IN 12V
] terminal at the rear
panel of the document camera, and insert the AC cord into an outlet.
To main unit
Connect
To wall outlet
AC cord
AC adapter

Elmo L-12 Specifications

General

Sensor type	CMOS
Image freeze	-
White balance	Auto, Manual
Maximum frame rate	30 fps
Optical sensor size	1/2.8 \
Effective sensor resolution	3.4 MP
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1920 x 1080 (HD 1080)
Auto focus	Yes
Digital zoom	8 x
Optical zoom	12 x
Shooting area (WxD)	420 x 313 mm
Maximum focal length (f)	48 mm
USB connector type	USB Type-A
USB 2.0 ports quantity	2
VGA (D-Sub) input ports	1
Lamp type	LED
Product color	White
Camera movement	Manual
AC input voltage	100-240 V
Operating voltage	12 V
Power supply type	AC
Power consumption (typical)	17.5 W
Cables included	AC, USB

Weight and Dimensions

Depth	373.5 mm
Width	355 mm
Height	426.5 mm
Weight	3200 g
Dimensions folded (WxDxH)	195 x 294 x 469 mm
