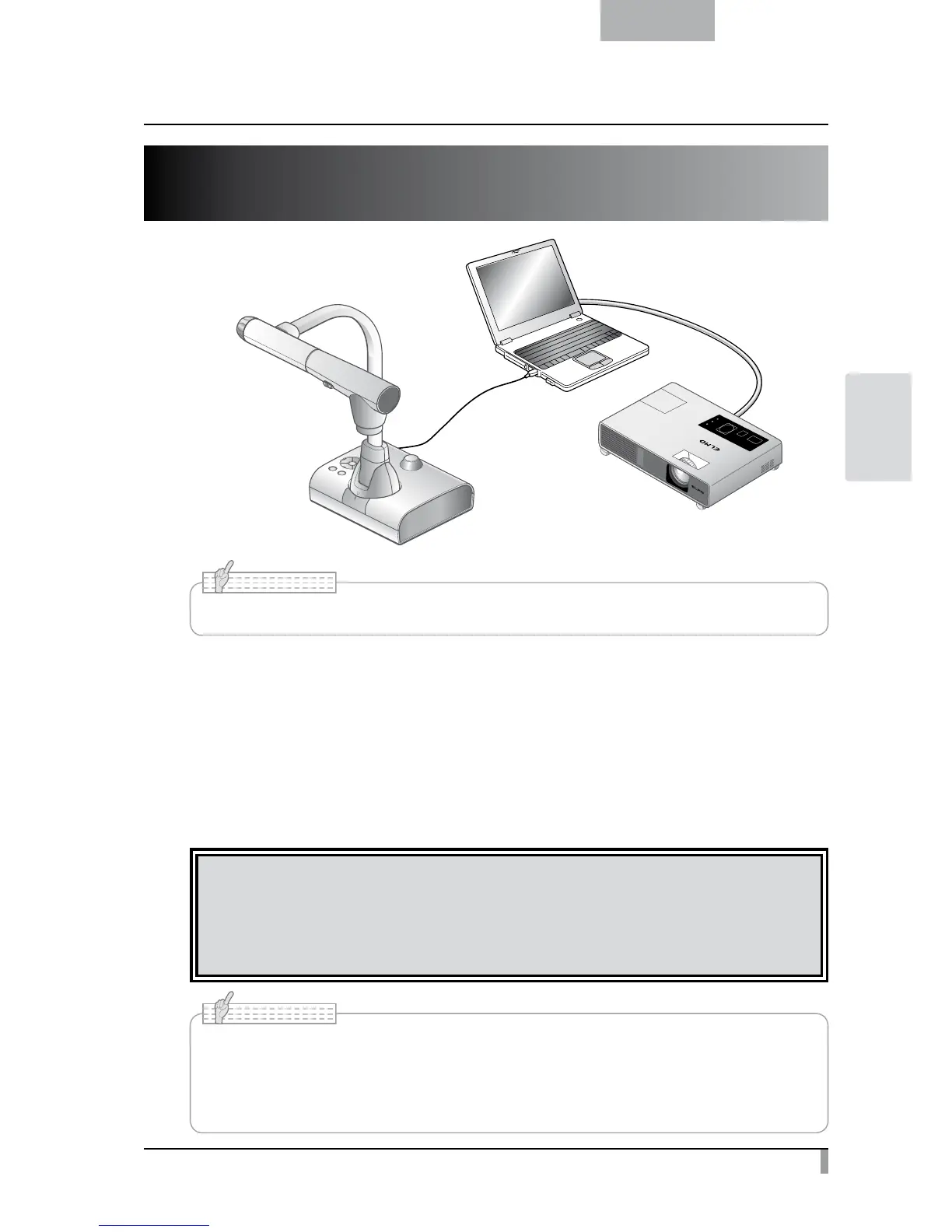

3-3 Presentation using a USB-connected
PC with the supplied software
• Set [USB Mode] to [Application] from the Preferences menu on the screen.
N o t e
“Image Mate” is available from the supplied CD-ROM.
By using the “Image Mate” software for controlling this equipment included in the CD-ROM, you can
perform the following tasks:
・
Transfer movie/picture data to the PC
・
Operate the product from the PC
For information on the requirements of the connected PC, OS types and the software guides, see the “Image
Mate” installation manual and the “HELP folder” on the CD-ROM.
CAUTION
• Do not connect/disconnect the USB cable while operating the equipment using the operating panel
or remote control. This may cause a malfunction.
•
We recommend using a USB 2.0-compliant USB cable
.
• Depending on the USB environment used by the PC or any peripheral device, image
transfer may be disrupted.
• Operation is not guaranteed for all environments.
• Make sure to disconnect the USB cable before switching [USB Mode] from the OSD menu.
N o t e

Elmo L-12 Specifications

General

Sensor type	CMOS
Image freeze	-
White balance	Auto, Manual
Maximum frame rate	30 fps
Optical sensor size	1/2.8 \
Effective sensor resolution	3.4 MP
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1920 x 1080 (HD 1080)
Auto focus	Yes
Digital zoom	8 x
Optical zoom	12 x
Shooting area (WxD)	420 x 313 mm
Maximum focal length (f)	48 mm
USB connector type	USB Type-A
USB 2.0 ports quantity	2
VGA (D-Sub) input ports	1
Lamp type	LED
Product color	White
Camera movement	Manual
AC input voltage	100-240 V
Operating voltage	12 V
Power supply type	AC
Power consumption (typical)	17.5 W
Cables included	AC, USB

Weight and Dimensions

Depth	373.5 mm
Width	355 mm
Height	426.5 mm
Weight	3200 g
Dimensions folded (WxDxH)	195 x 294 x 469 mm
