13
English
BASIC
OPERATIONS

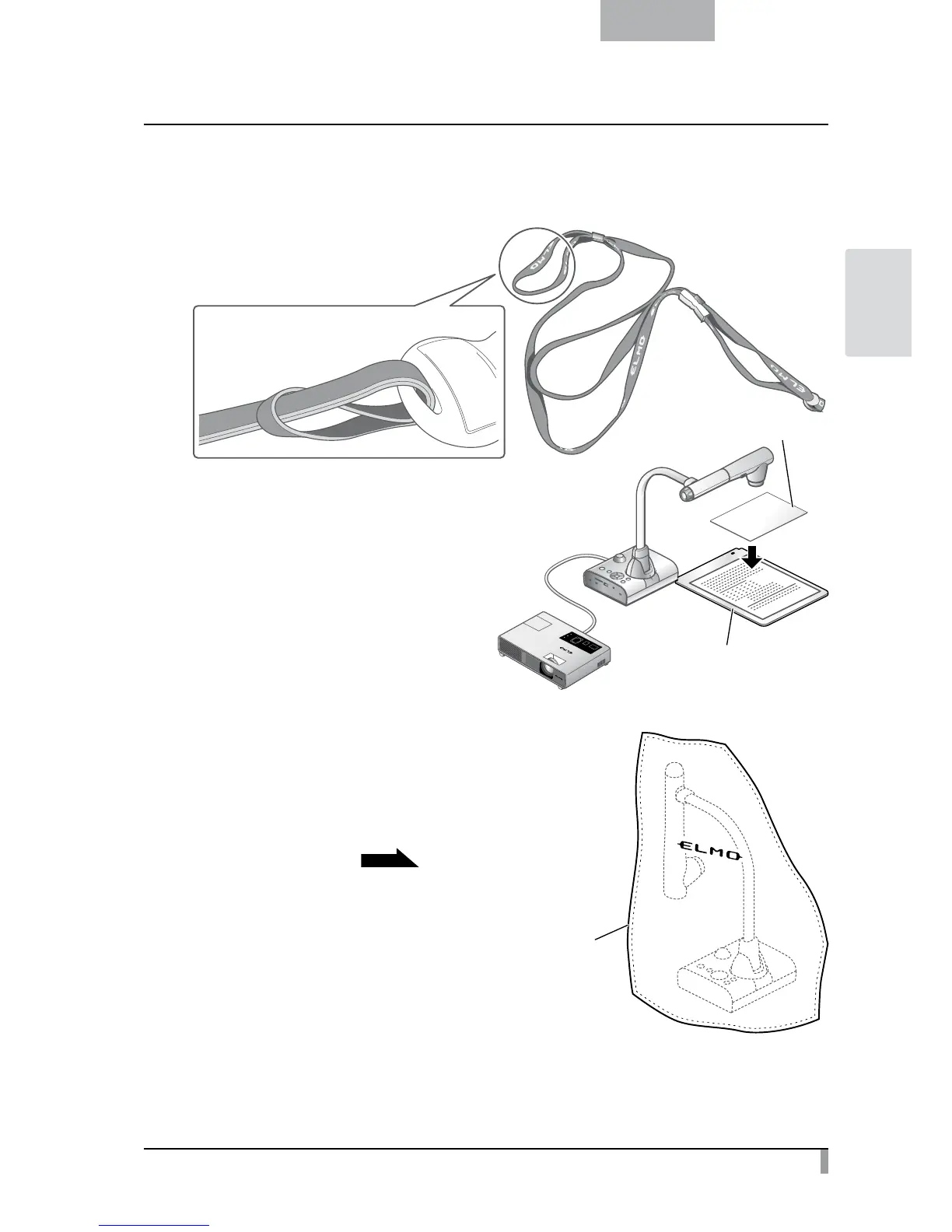

Remote Control Strap
The strap can be fastened to the remote control as shown below.
Stage
Use with the main unit to indicate the shooting range.
Anti-glare sheet
Place it on the document to reduce the amount of reflection.
Dust cover
Cover the main unit when storing to keep it clean.
How to fold the main unit
P.11
Image Mate CD-ROM
The CD-ROM contains the software for connecting to a PC.
Follow the instructions in the separate Installation Manual.
Instruction manual CD-ROM
The CD-ROM contains the Instruction manual.
Stage
Anti-glare sheet
Dust cover
