Elmo L-12 User Manual

7
English
BASIC
OPERATIONS


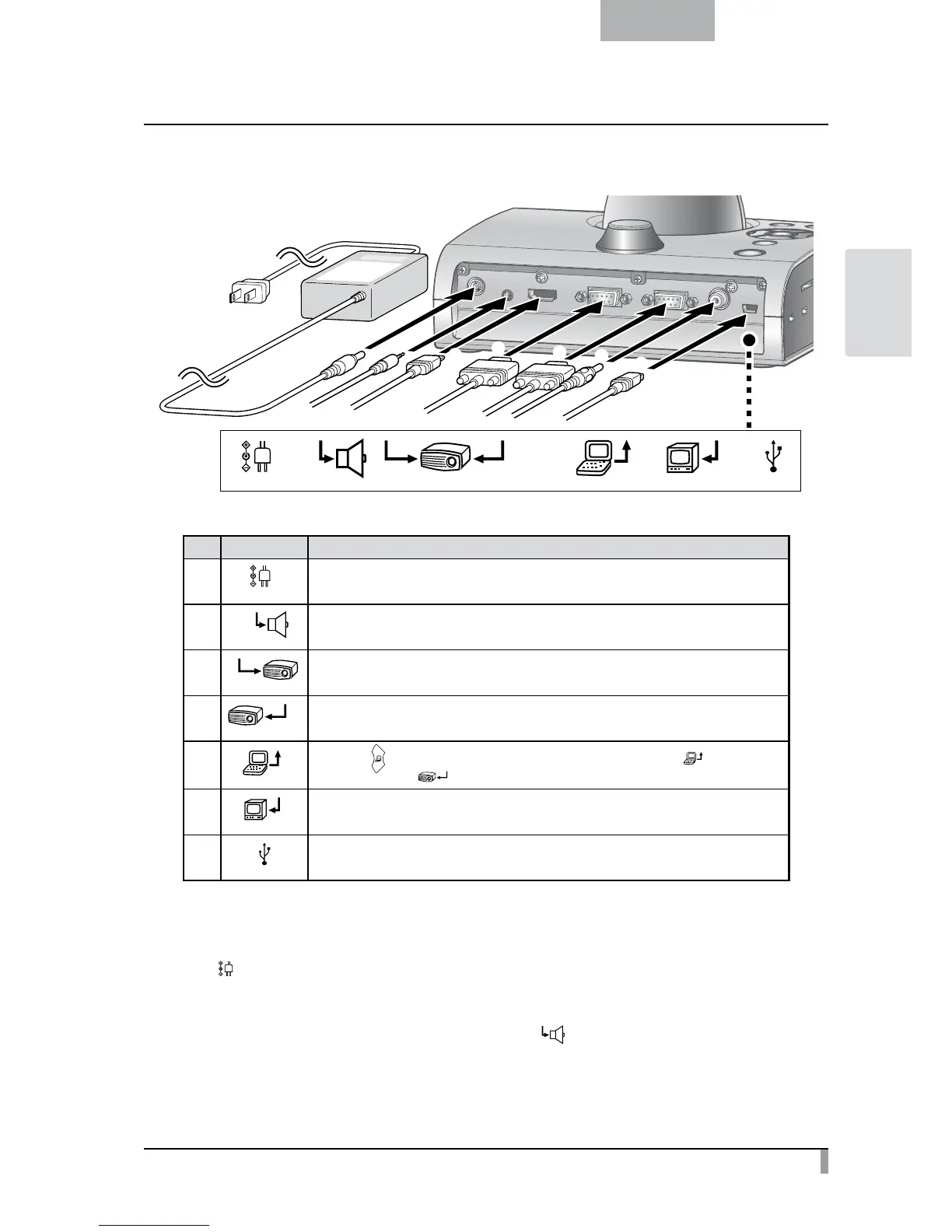

Rear panel and cable connection
①
②
③
④
⑤
⑥
⑦
AUDIO OUT HDMI OUT RGB OUT RGB IN VIDEO USBDC IN 12V
① ② ③ ④ ⑤ ⑥ ⑦
Mark Function
①
DC IN 12V
Plug-in for the AC adapter. (A cable is supplied with this product.)
②
AUDIO OUT
To output audio line . (An audio cable is not supplied with this product.)
③
HDMI OUT
To output digital images. (HDMI cable is not supplied with this product.)
④
RGB OUT
To output analog RGB images. (Analog RGB cable is supplied with this product.)
⑤
RGB IN
When the [ ] button is selected in Image Select, the image input to [
RGB IN
] terminal can
be output from the [
RGB OUT
] terminal. (A cable is supplied with this product.)
⑥
VIDEO
To output video images. (RCA cable is not supplied with this product.)
⑦
USB
To connect to a PC. (USB cable is supplied with this product.)
①
To connect the AC adapter.
Before inserting the A
C adapter in an outlet, connect the DC plug of the supplied AC adapter to the
[
DC IN 12V
] terminal on the rear panel.
②
To connect the unit to a device (speaker with amplifire etc) with an audio line input terminal.
Connect a commercially available audio cable to the [
AUDIO OUT
] terminal on the rear panel.

Elmo L-12 Specifications

General

Sensor type	CMOS
Image freeze	-
White balance	Auto, Manual
Maximum frame rate	30 fps
Optical sensor size	1/2.8 \
Effective sensor resolution	3.4 MP
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1920 x 1080 (HD 1080)
Auto focus	Yes
Digital zoom	8 x
Optical zoom	12 x
Shooting area (WxD)	420 x 313 mm
Maximum focal length (f)	48 mm
USB connector type	USB Type-A
USB 2.0 ports quantity	2
VGA (D-Sub) input ports	1
Lamp type	LED
Product color	White
Camera movement	Manual
AC input voltage	100-240 V
Operating voltage	12 V
Power supply type	AC
Power consumption (typical)	17.5 W
Cables included	AC, USB

Weight and Dimensions

Depth	373.5 mm
Width	355 mm
Height	426.5 mm
Weight	3200 g
Dimensions folded (WxDxH)	195 x 294 x 469 mm
