64
English
ADVANCED
OPERATIONS

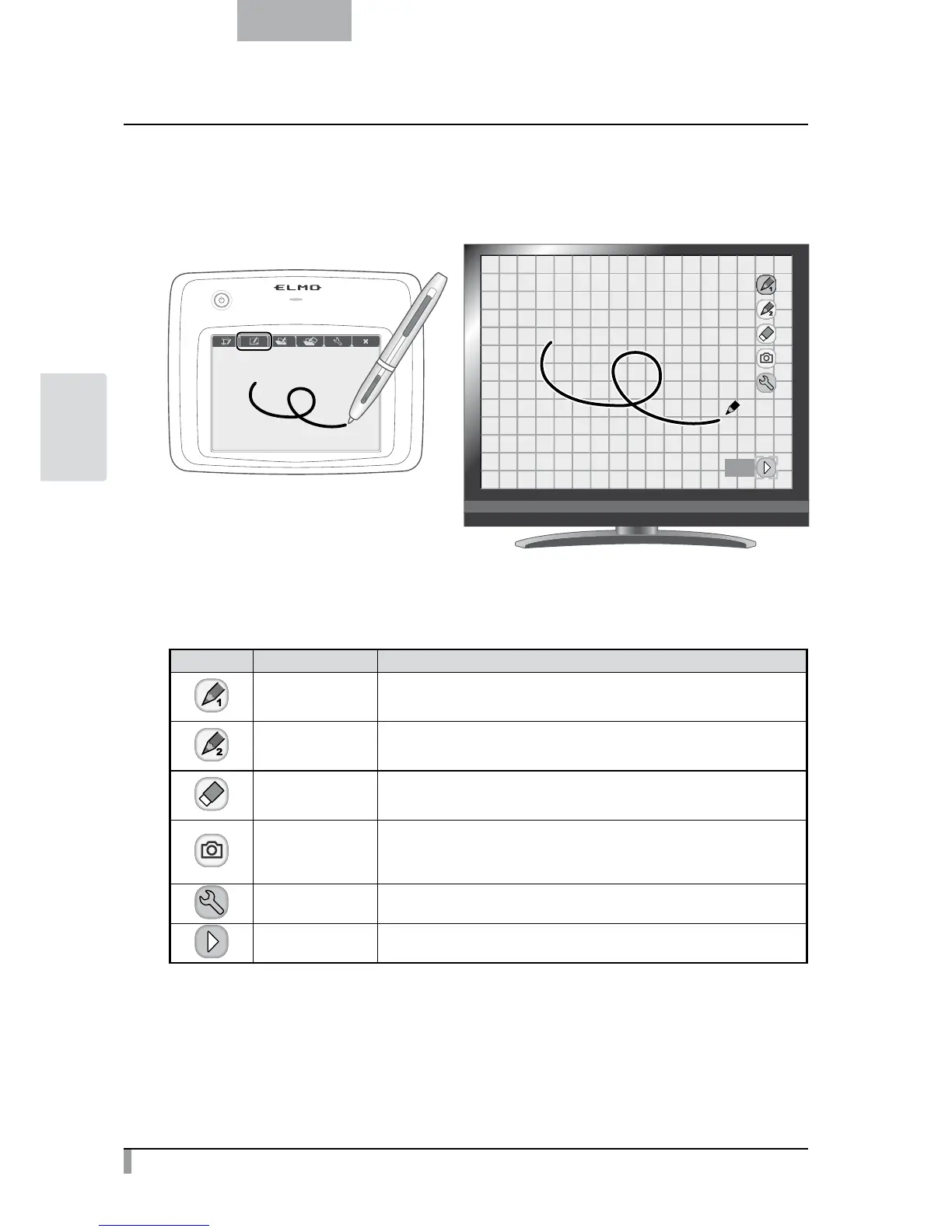

Using as a whiteboard
You can draw on any blank white images or areas used as a background.
Next
Menu descriptions
Main Menu
Icon Name Function
Pen 1
To select Pen 1.
The initial color setting is Red.
You can change the settings for the pen in the Setting menu.
Pen 2
To select Pen 2.
The initial color setting is Black.
You can change the settings for the pen in the Setting menu.
Clear Screen
To erase anything drawn on the screen.
If you need to erase a part of a drawing, move the cursor to the section to be
erased, and touch the section with the pen while pressing the pen Erase button.
Capture
To capture the image currently displayed on the screen as a picture and save it
on the SD card.
This feature captures only the displayed camera image and your comments/
drawings; the cursor and menu icons are not captured.
Setting To specify the settings for Pen and Eraser.
