Elmo L-12 User Manual

20
English
BASIC
OPERATIONS


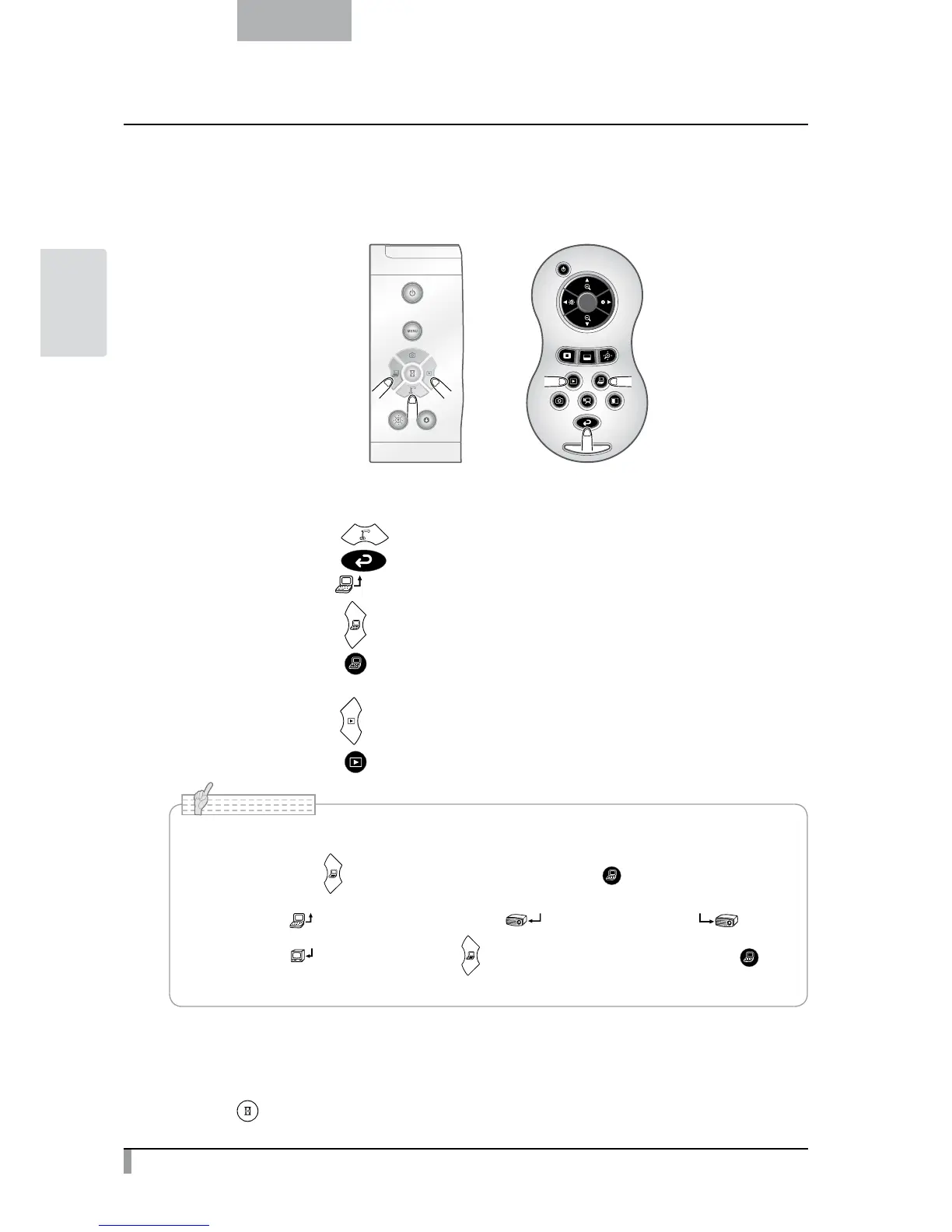

Image selection
Select the image as described below.
Camera image:
[
] button on the operating panel or
[ ] button on the remote control.
Image input to the [
RGB IN
] terminal:
[
] button on the operating panel or
[
] button on the remote control.
Image stored on the SD card/USB flash drive:
[
] button on the operating panel or
[
] button on the remote control.
• When using a PC with an external output mode, set the PC to the external output mode
after pressing the [ ] button on the operating panel or the [ ] button on the remote
control.
• Image of the [
RGB IN
] terminal is output from the [
RGB OUT
] terminal only. As to [
HDMI OUT
]
terminal and [
VIDEO
] terminal, press the [ ] button on the operating panel or the [ ]
button on the remote control to display the camera image on the screen.
N o t e

Pausing the image
Press the [ ] button on the operating panel to pause the camera image. Press the button again to
cancel the pause.

Elmo L-12 Specifications

General

Sensor type	CMOS
Image freeze	-
White balance	Auto, Manual
Maximum frame rate	30 fps
Optical sensor size	1/2.8 \
Effective sensor resolution	3.4 MP
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1920 x 1080 (HD 1080)
Auto focus	Yes
Digital zoom	8 x
Optical zoom	12 x
Shooting area (WxD)	420 x 313 mm
Maximum focal length (f)	48 mm
USB connector type	USB Type-A
USB 2.0 ports quantity	2
VGA (D-Sub) input ports	1
Lamp type	LED
Product color	White
Camera movement	Manual
AC input voltage	100-240 V
Operating voltage	12 V
Power supply type	AC
Power consumption (typical)	17.5 W
Cables included	AC, USB

Weight and Dimensions

Depth	373.5 mm
Width	355 mm
Height	426.5 mm
Weight	3200 g
Dimensions folded (WxDxH)	195 x 294 x 469 mm
