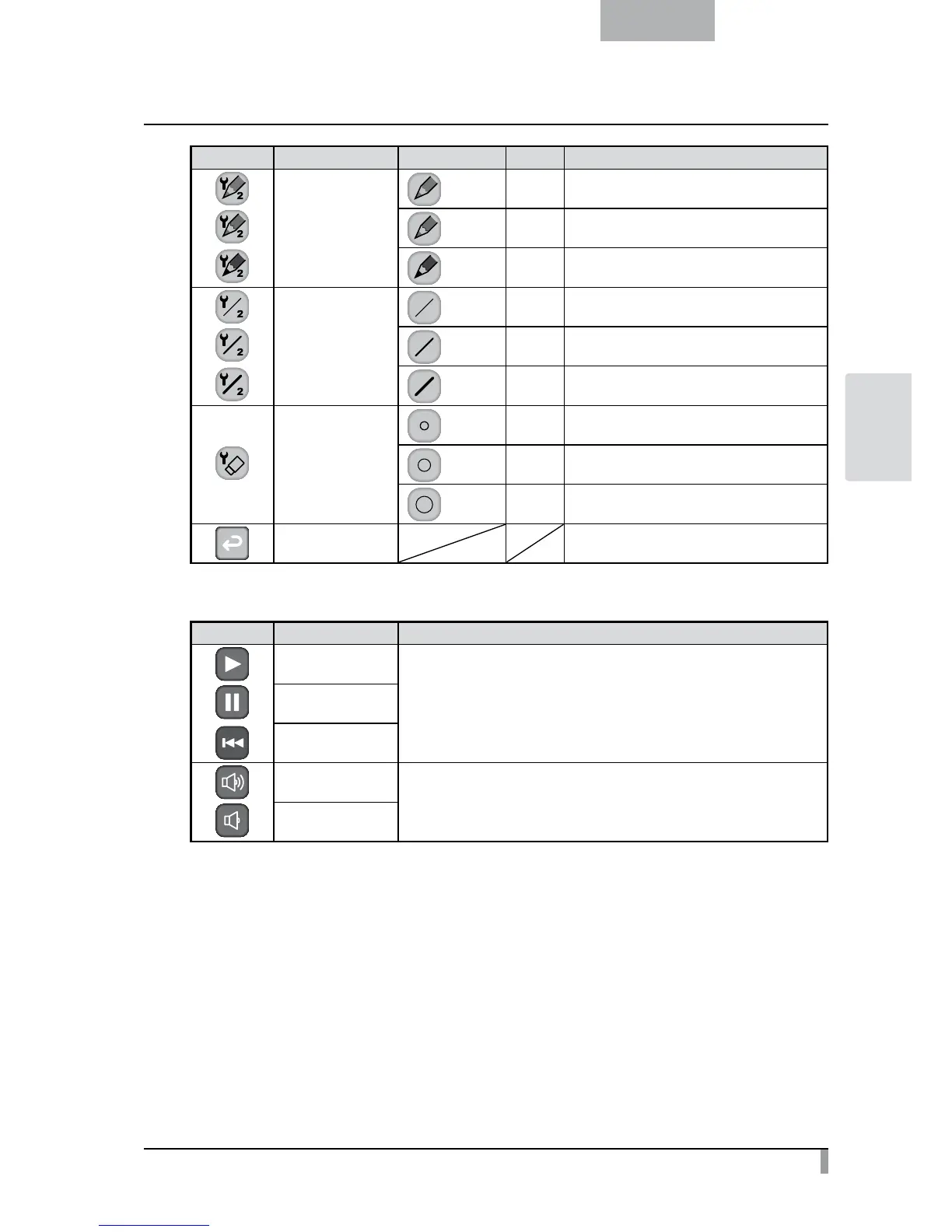

Elmo L-12 User Manual

69
English
ADVANCED
OPERATIONS
Icon Name Selection Item Default Function
Pen 2 Color
Red To set the pen color to red.
Blue To set the pen color to blue.
Black
✔
To set the pen color to black.
Pen 2 Thickness
Thin To decrease the pen thickness.
Medium
✔
To set the pen thickness to medium width.
Thick To increase the pen thickness.
Erase Area
Narrow To decrease the area of partial erasure.
Medium
✔
To set the area of partial erasure to the medium
range.
Wide To increase the area of partial erasure.
Exit To return to the previous level of menu.
• Movie Play Menu
Icon Name Function
Play/Stop
To play/stop/Cueing the movie.
Pause
Cueing
Up
To set the output audio volume.
Down

Elmo L-12 Specifications

General

Sensor type	CMOS
Image freeze	-
White balance	Auto, Manual
Maximum frame rate	30 fps
Optical sensor size	1/2.8 \
Effective sensor resolution	3.4 MP
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1920 x 1080 (HD 1080)
Auto focus	Yes
Digital zoom	8 x
Optical zoom	12 x
Shooting area (WxD)	420 x 313 mm
Maximum focal length (f)	48 mm
USB connector type	USB Type-A
USB 2.0 ports quantity	2
VGA (D-Sub) input ports	1
Lamp type	LED
Product color	White
Camera movement	Manual
AC input voltage	100-240 V
Operating voltage	12 V
Power supply type	AC
Power consumption (typical)	17.5 W
Cables included	AC, USB

Weight and Dimensions

Depth	373.5 mm
Width	355 mm
Height	426.5 mm
Weight	3200 g
Dimensions folded (WxDxH)	195 x 294 x 469 mm
