Elmo L-12 User Manual

71
English
ADVANCED
OPERATIONS
③

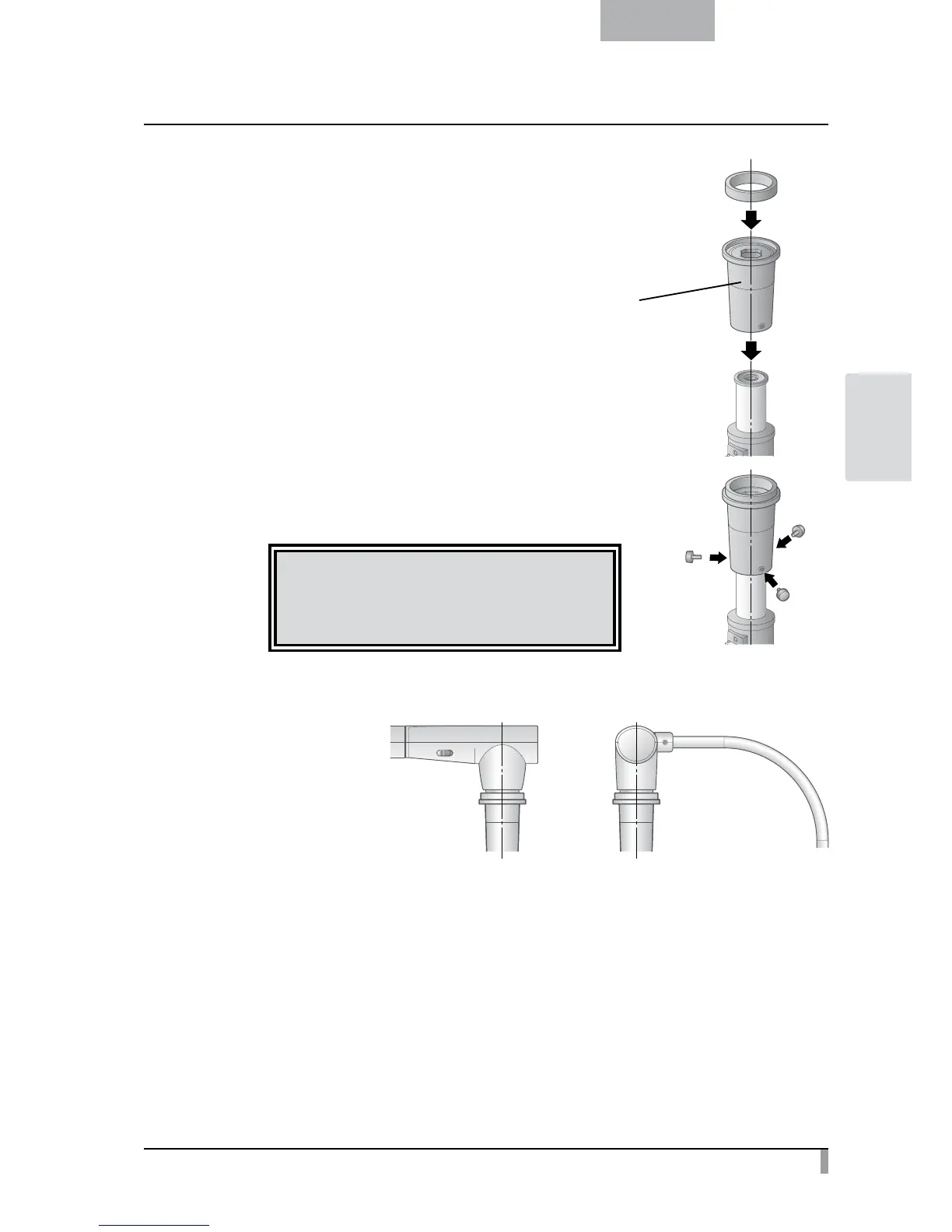

Attach the microscope attachment lens.
•
Att
ach the guide ring to the microscope attachment
lens and cover the eyepiece with it.
•
Mat
ch the centers of the microscope attachment lens
and eyepiece, and use the three screws to evenly
tighten the lenses against each other.
CAUTION
If the screws are screwed too tightly, the microscope
eyepiece or tube may be damaged.
④
Adjust the angle of the microscope and the equipment to fit each other.
⑤
Adjust the brightness.
Adjust the brightness with the mirror or the light on the microscope.
Set the microscope attachment lens

Elmo L-12 Specifications

General

Sensor type	CMOS
Image freeze	-
White balance	Auto, Manual
Maximum frame rate	30 fps
Optical sensor size	1/2.8 \
Effective sensor resolution	3.4 MP
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1920 x 1080 (HD 1080)
Auto focus	Yes
Digital zoom	8 x
Optical zoom	12 x
Shooting area (WxD)	420 x 313 mm
Maximum focal length (f)	48 mm
USB connector type	USB Type-A
USB 2.0 ports quantity	2
VGA (D-Sub) input ports	1
Lamp type	LED
Product color	White
Camera movement	Manual
AC input voltage	100-240 V
Operating voltage	12 V
Power supply type	AC
Power consumption (typical)	17.5 W
Cables included	AC, USB

Weight and Dimensions

Depth	373.5 mm
Width	355 mm
Height	426.5 mm
Weight	3200 g
Dimensions folded (WxDxH)	195 x 294 x 469 mm
