2.7 ems25advanced wiring diagram
The wiring diagram for the ems25advanced:
Drip loops must be made in all cables
Note:
l For security, once fitted, the rear cover can only be removed using a tool, such as a small, flat bladed
screwdriver.
2.8 how to mount ems25 series controllers
ems25 series controllers have an IP (Ingress Protection) rating of IP45. That is, the ems controller has protection against
water jets. An appropriate level of protection must be given for the effects of water ingress due to water jetting, con-
densation, product spillage, and so on.
Before beginning installation, remove all protective film from between the rear seals of the controller. The seals are mal-
leable, to ensure a water resistant seal around cables and prevent water ingress.
Caution
l The ems25 series controllers must not be exposed to temperatures greater than 55°C (131°F) or
lower than 0°C (32°F).

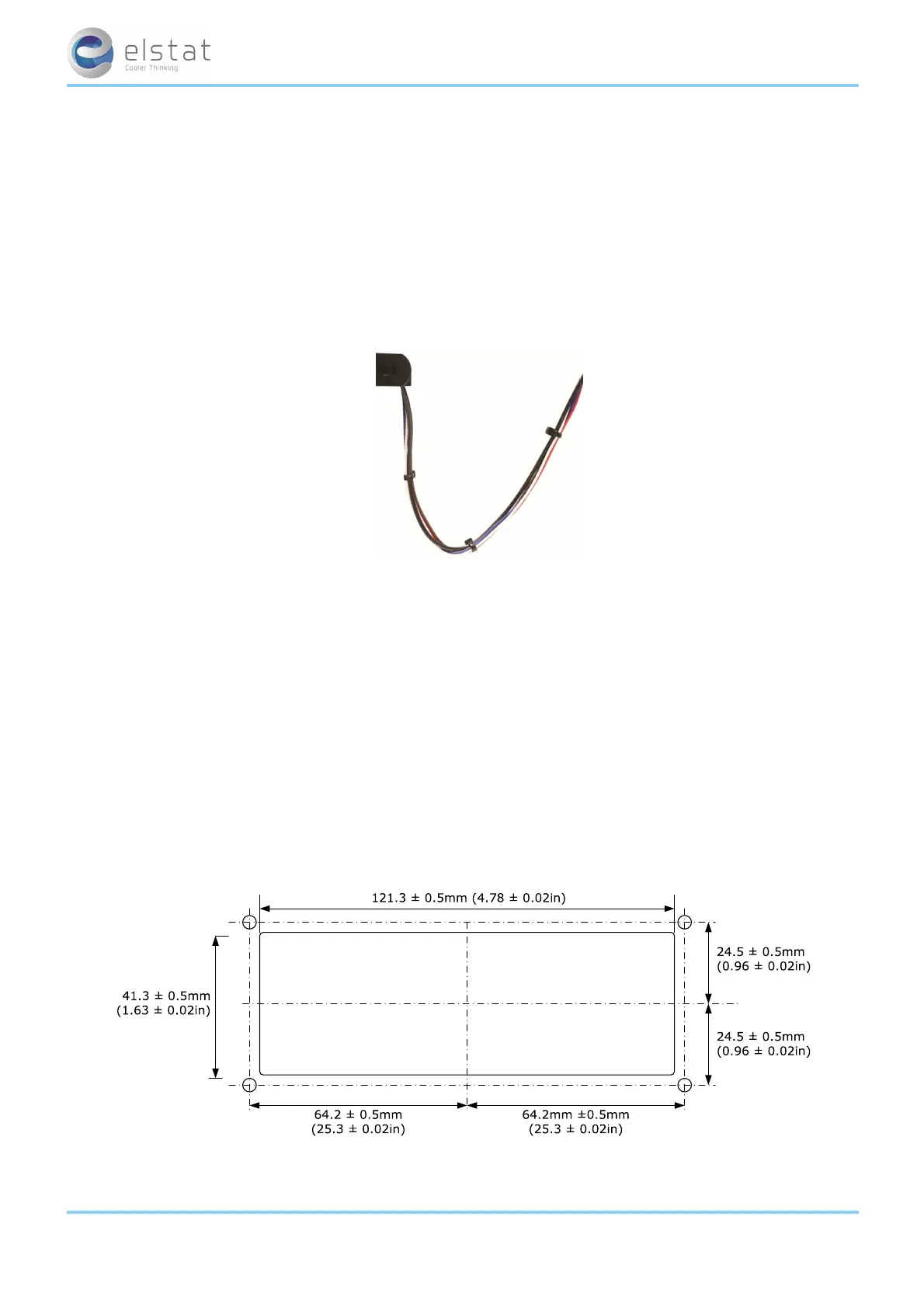

ems25 series controllers are designed for panel mounting. The panel aperture dimensions are shown below.
ems25+ and ems25advanced / General Use
12 of 89
