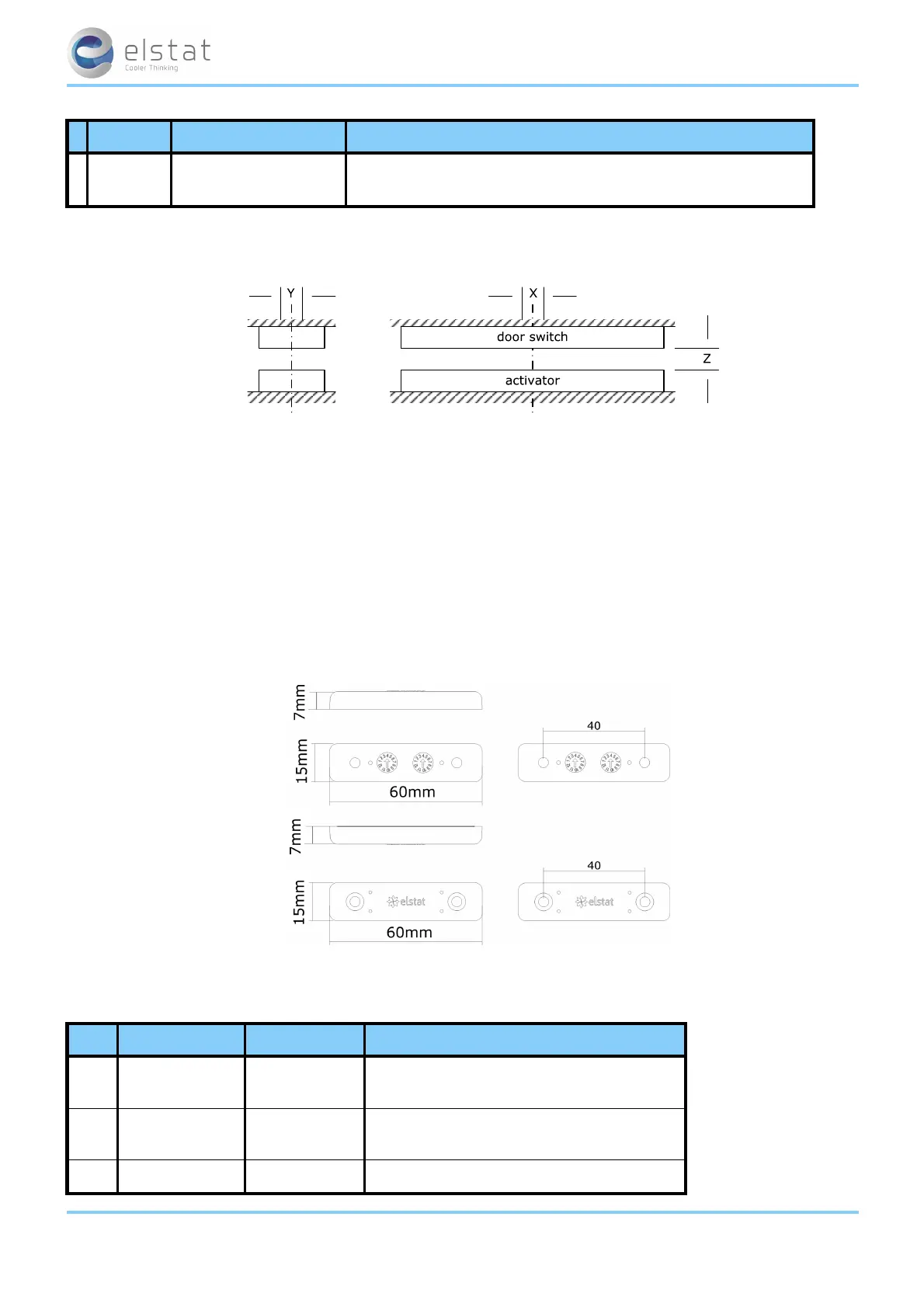

l Do not use cable ties.
The head of the sensor is fragile and can be easily damaged. Using cable ties to secure the sensor head, or sensor cable, invalidates the
warranty.
3.3 how to mount the condenser sensor
This sensor measures the temperature of the refrigeration system. Excessive condenser temperature is usually due to poor
preventive maintenance, i.e poorly cleaned condenser, or condenser fan failure.
3.3.1 condenser sensor
ems controllers can generate alarms if the refrigeration system temperature rises too high.
The value of the high temperature is set by measuring the refrigeration system temperature, when the condenser is approx-
imately 75% blocked. The temperature is then set as the value of the condenser high temperature (Ht) parameter.
l See "condenser high temperature (Ht)" on page 73
For example, fix using a metal pipe clip or direct fitting, as shown below.
Elstat can supply pipe clips for 6-8mm and 8-10mm pipes.
Caution:
l Do not use cable ties.
The head of the sensor is fragile and can be easily damaged. Using cable ties to secure the sensor head or sensor cable invalidates the war-
ranty.
l Do not attach sensor cables to hot pipes or allow the sensor cables to come into contact with hot pipes.
ems25+ and ems25advanced / General Use
17 of 89
