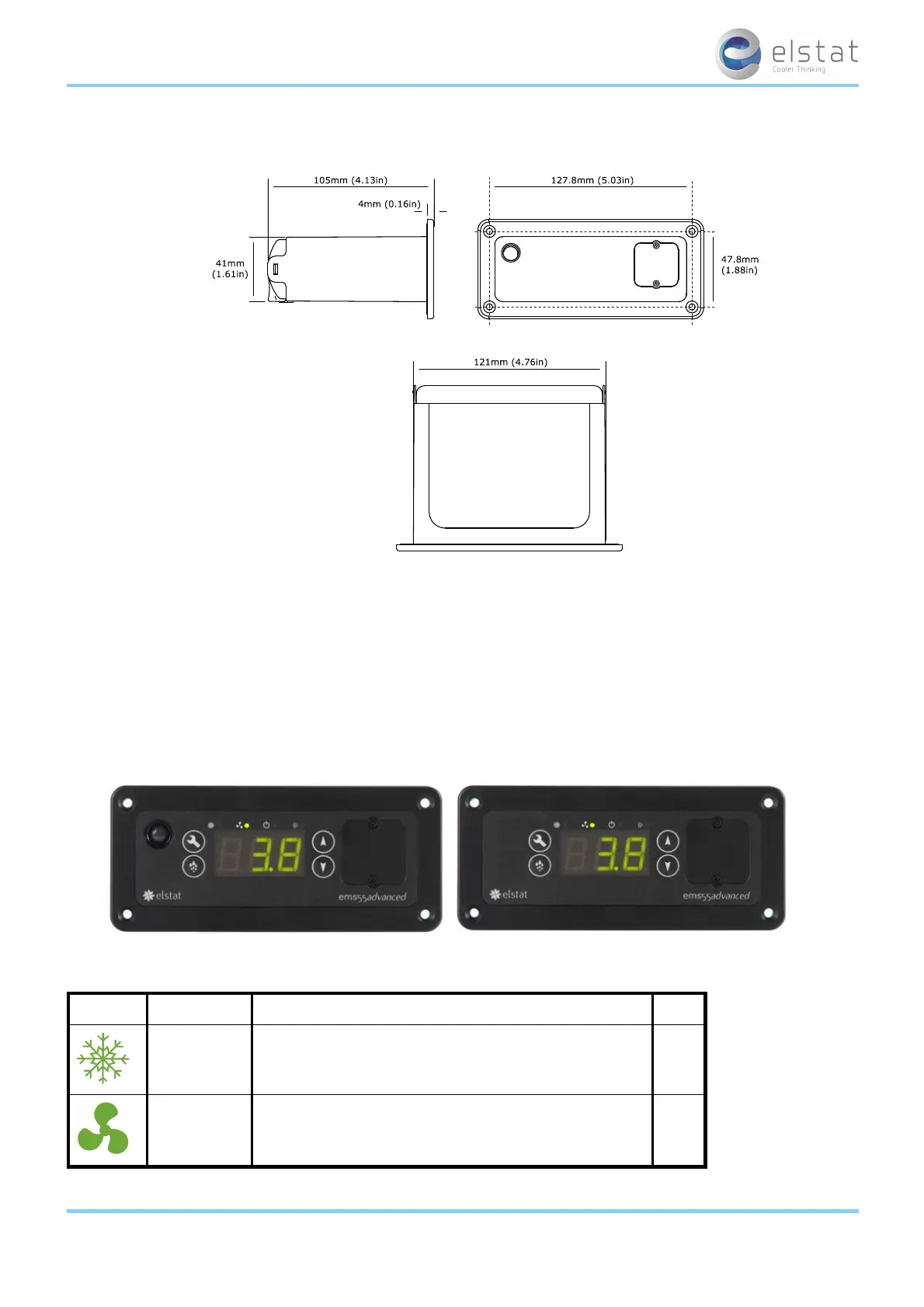

button name function
down scrolls down menus, decreases parameter values, and cancels alarms.
2.3 environmental ratings
The table below details the general characteristics of the ems25 series.
characteristic value
IP rating IPX5
maximum operating temperature 55ºC (131ºF)
minimum operating temperature 0ºC (32ºF)
housing material black polycarbonate
2.4 ems25 series relay ratings
The table below details the relay ratings of ems25
+
controllers.
ems25
+
maximum IEC rating @100-240VAC maximum UL ratings @ 120VAC
compressor 6(6)A, p.f. 0.6 6 FLA, 36 LRA
lights 2(2)A, p.f. 0.6 120VAC, 60Hz, 250W florescent
evaporator fan not applicable not applicable
The table below details the relay ratings of ems25advanced controllers.
ems25advanced maximum IEC rating @100-240VAC maximum UL ratings @ 120VAC
compressor 10(10)A, p.f. 0.6
not applicablelights 2(2)A, p.f. 0.6
evaporator fan 4(4)A, p.f. 0.6
2.5 ems25
+
wiring diagram
The wiring diagram for the ems25
+
:
ems25+ and ems25advanced / General Use
