20 MES3000 Ethernet switch series

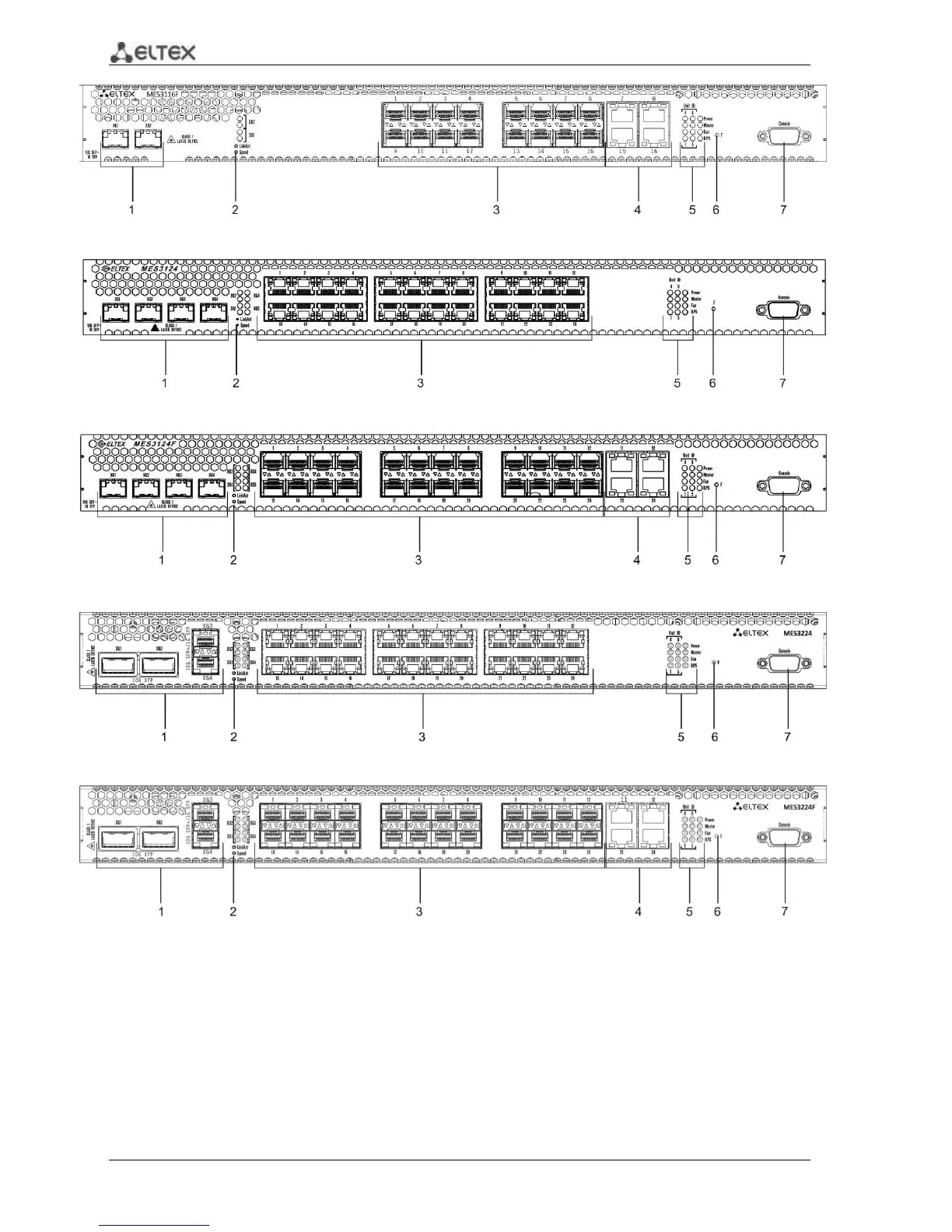

Fig. 4—MES3116F, front panel
Fig. 5—MES3124, front panel
Fig. 6—MES3124F, front panel
Fig. 7—MES3224, front panel
Fig. 8—MES3224F, front panel
Table 2.10 lists sizes, LEDs and controls located on the front panel of the switch.
