22 MES3000 Ethernet switch series
Table 2.11 lists rear panel connectors of the switch.
Table 2.11 —Description of rear panel connectors of the switch
№
Rear panel element
Description
1
Connector for DC power supply
2
Connector for AC power supply
3
Removable fans
Removable ventilation modules with hot-swapping.
4
Earth bonding point
Earth bonding point of the device.
2.4.3 Side panels of the device

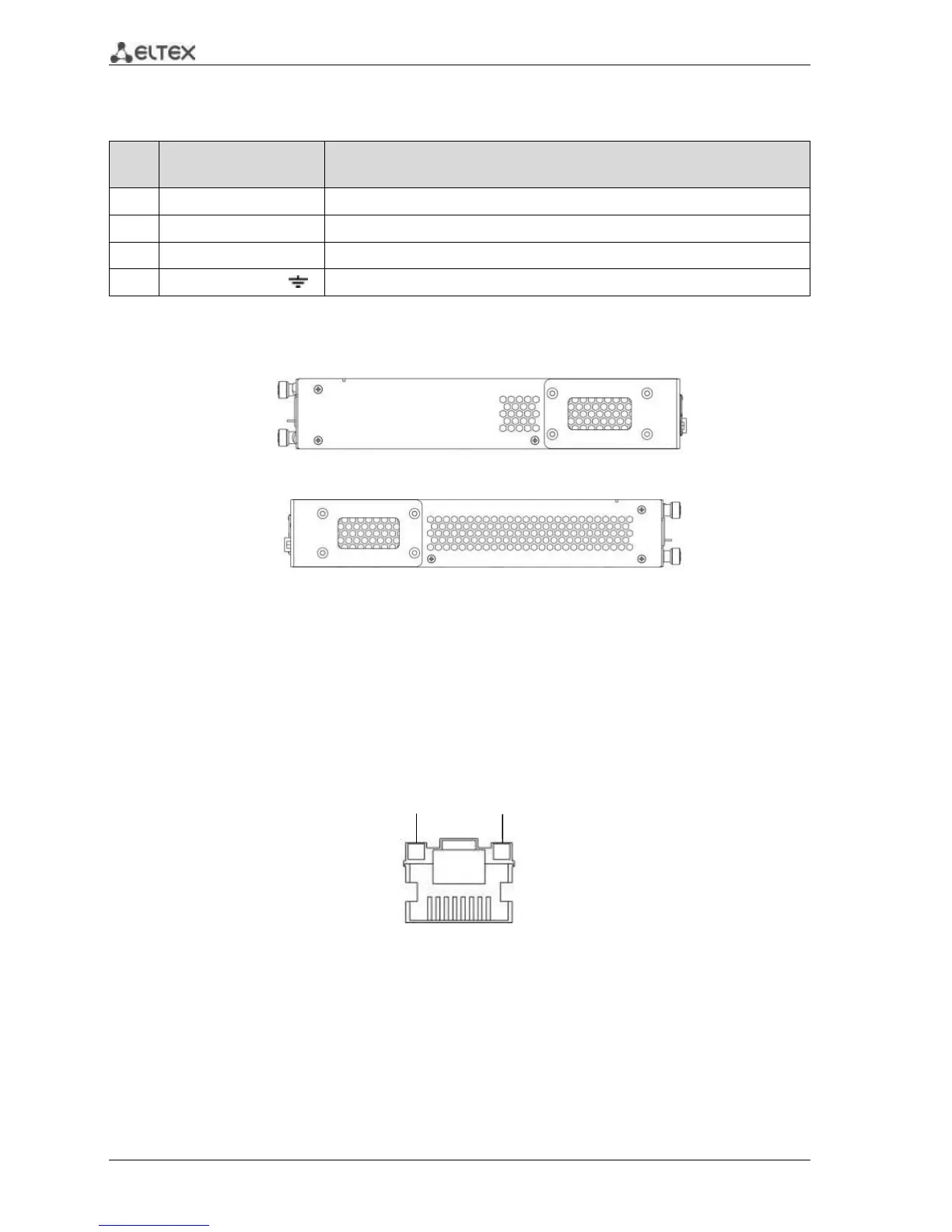

Fig. 10—The right-side panel of MES3000 series Ethernet switches
Fig. 11—The left-side panel of MES3000 series Ethernet switches
Side panels of the device have air vents for heat removal. Do not block air vents. This may cause
components overheating which may result in terminal malfunction. For recommendations on device
installation, see section 'Installation and connection'.
2.4.4 Light Indication
Ethernet interface status is represented by two LEDs—green LINK/ACT and red SPEED. Location of
LEDs is depicted on Fig. 12,13.
Fig. 12—RJ-45 socket appearance
LINK/ACT
SPEED
