131
Memory memory usage in %
KNX/IP / KNX/TP type of connection to KNX bus. If KNX/TP is set and it is not
available, there will be error notification
Sync project data save all project data to internal flash by pressing this button.
Otherwise the data is saved once in 30 minutes from RAM to Flash, or when Reboot
or Shutdown commands are sent
KNX statistics graphs shows average KNX bus load

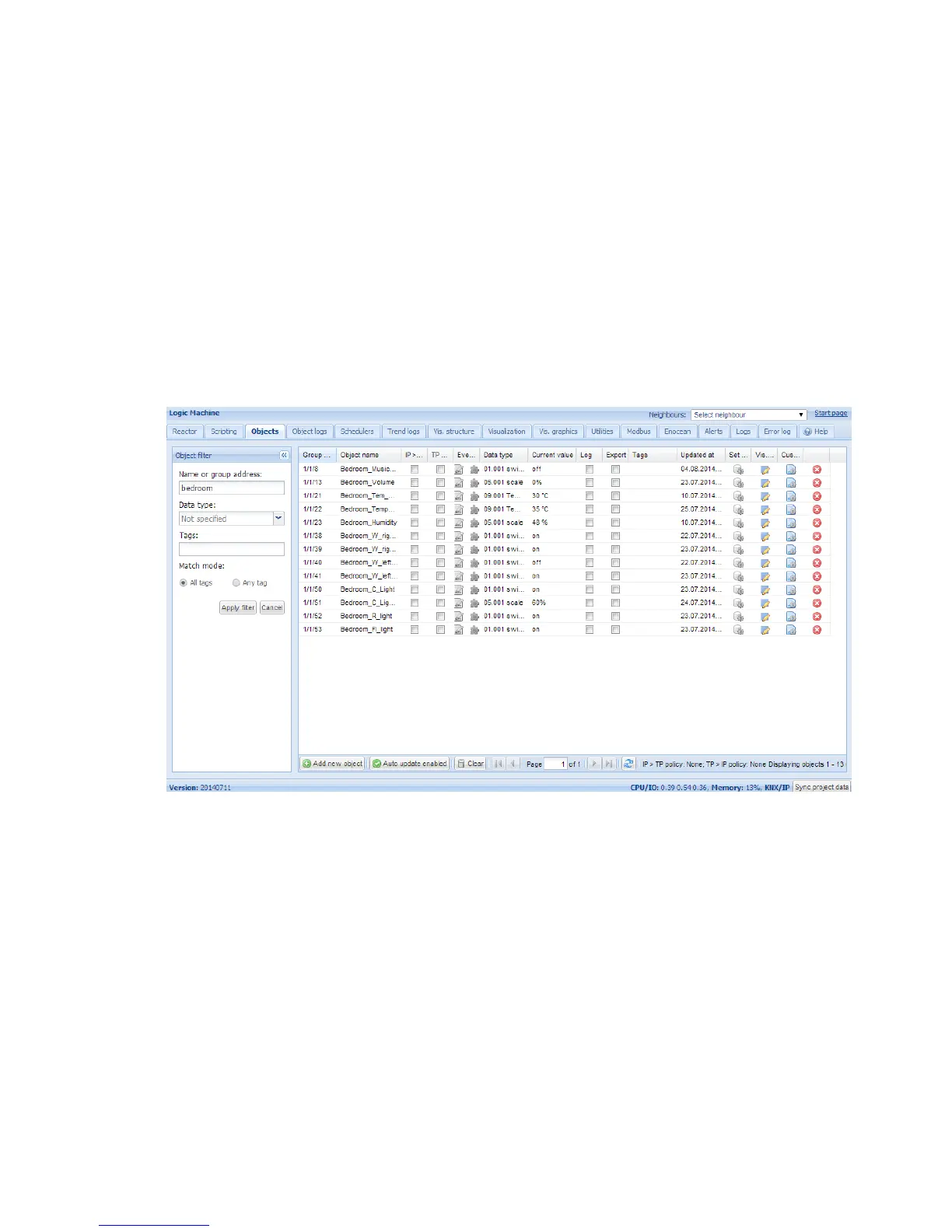

6.3.7. Filter objects
On the left side of the object list there is filtering possible. To perform the filtering type the
name, group address, tag or specify the data type of the object and press on Filter button.
Match mode:
All tags represents AND function when all tags should match
Any tag represents OR function when any one of listed should match
