Embedded Systems LM5p-GSMC User Manual

75

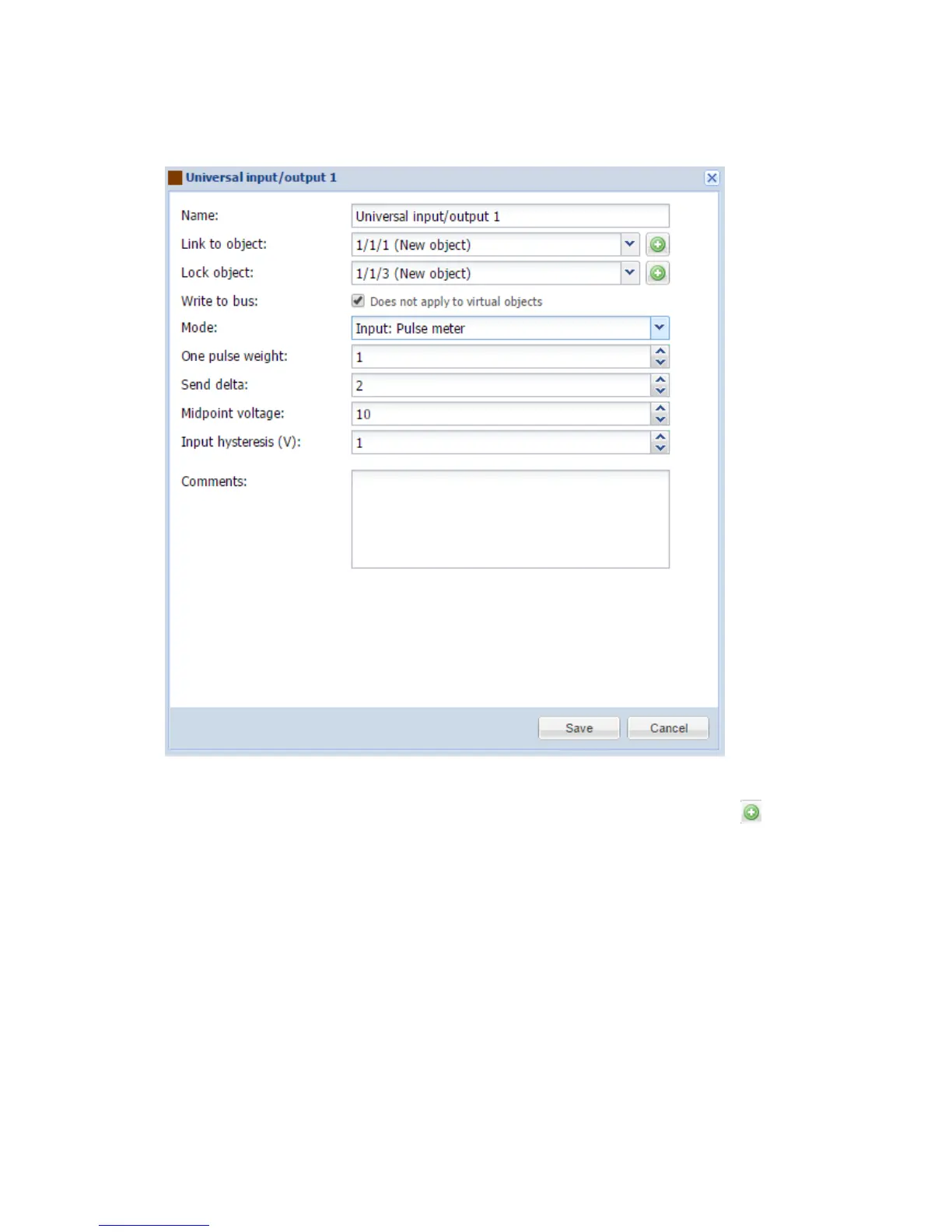

6.1.8. Input: Pulse meter
 Name  name of the port
 Link to object  group address to link the object with. By pressing the button, the
field will be automatically filled with the next free group address.
 Lock object  lock object group address
 Write to bus  defines either to write or not to bus on value change
 Mode  port operating mode
 One pulse weight  multiplier of the received value
 Send delta  send the data upon specific delta value has changed
 Midpoint voltage  voltage midpoint
 Input hysteresis (V)  If binary input is OFF, it will change to ON when voltage level is
above MIDPOINT + HYSTERESIS. If binary input is ON, it will change to OFF when
voltage level is below MIDPOINT  HYSTERESIS
 Comments  comment of the object
