159

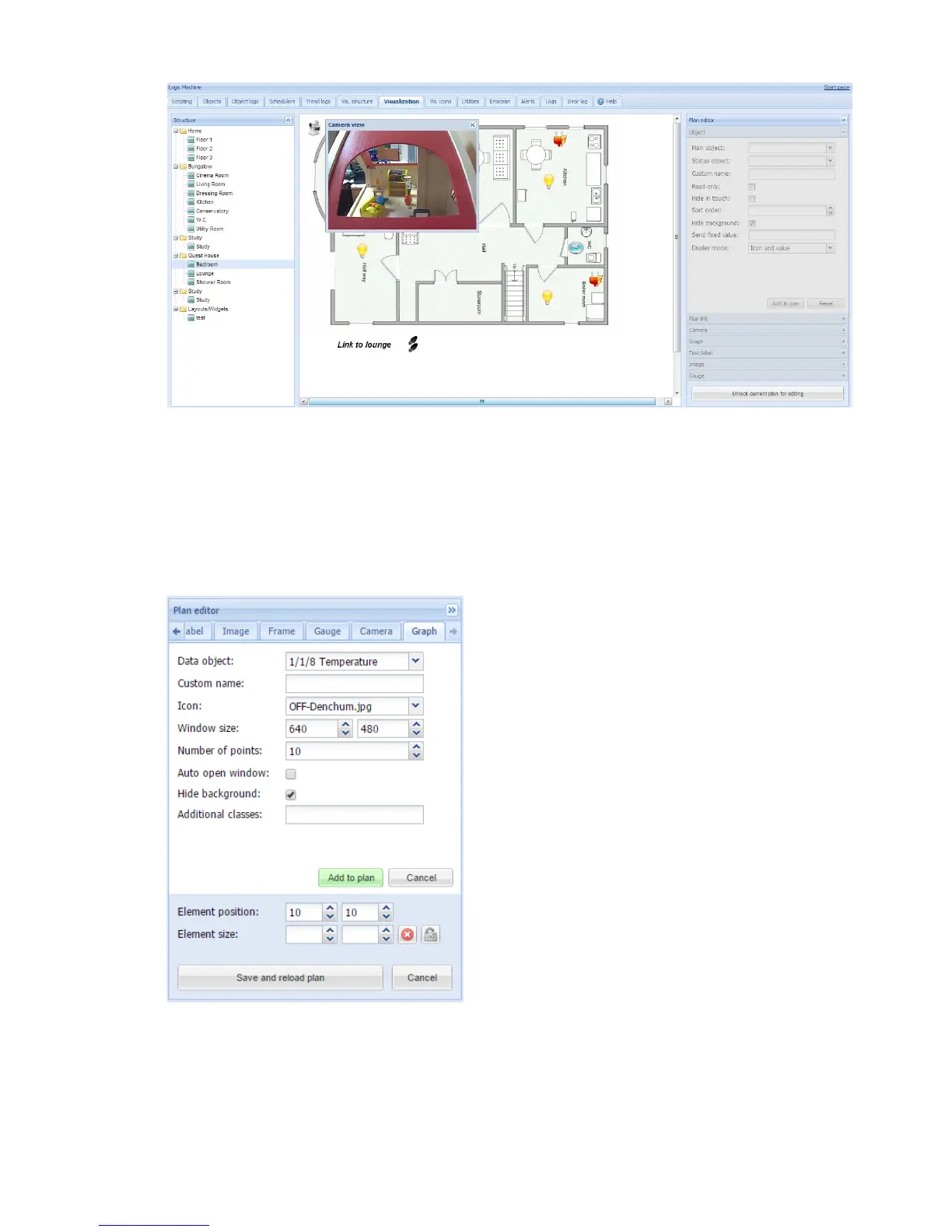

6.9.9. Graph
Real-time graphs can be integrated into visualization system to monitor the current and old
value of scale-type objects. Make sure logging is enabled for the object in Object tab which
values is planned to be shown in the graph.
Data object group address of the object
Custom name name of the object
Icon icon to launch the graph
Windows size size of the graph window
