Embedded Systems LM5p-GSMC User Manual

69

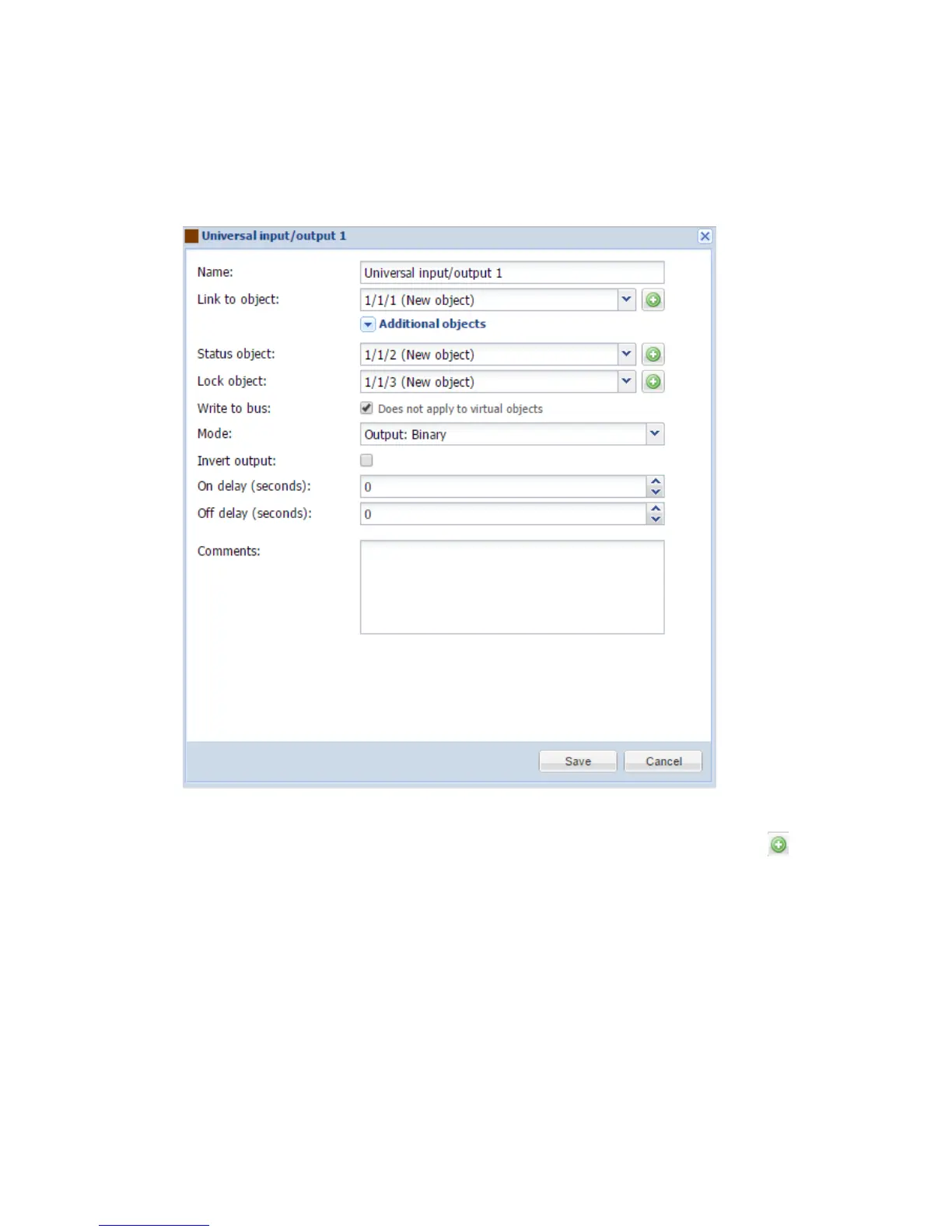

6.1.2. Output: Binary
 Name  name of the port
 Link to object  group address to link the object with. By pressing the button,
the field will be automatically filled with the next free group address. You can
add up to 6 objects to one output.
 Status object  status object group address.
 Lock object  lock object group address
 Write to bus  defines either to write or not to bus on value change
 Mode  port operating mode
 Invert output  defines either to invert the output value
 On delay (seconds)  delay in seconds when getting in On state
 Off delay (seconds)  delay in seconds when getting in Off state
 Comments  comment of the object
