6.2.1. Functional Blocks (FB) app
FB (Function blocks) editor allow easy, PLC like approach to programming based on IEC
61499(event execution) and on IEC61131(cyclic execution) standard. FB editor allows of mixing
both standards on single diagram.

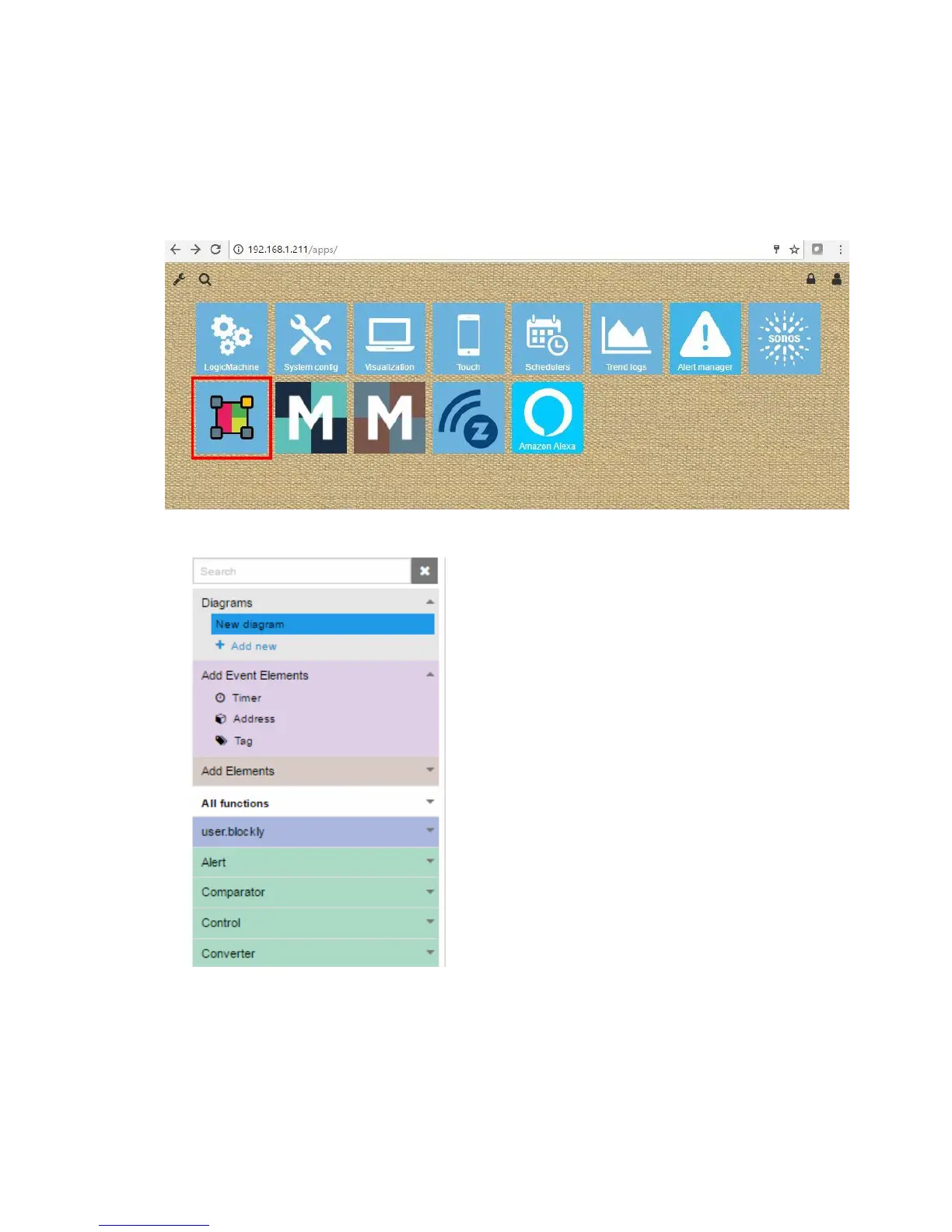

Menu
Diagrams All logic diagrams are created here. Name of diagram must be unique
Event Elements elements used to trigger event type logic
Elements Ale normal elements which are equal to function properties
All functions - Contains build in functions (green) and user defined function (purple)
Search box- will find function block containing typed letter
