Embedded Systems LM5p-GSMC User Manual

49
4. Graphical User Interface Login
KNX/EIB LogicMachine has IP address 192.168.0.10 set by default to LAN interface. Use this
address as www address in the browser's address field.
Note! Make sure that the PC connecting to the LogicMachine has IP set from the same subnet.

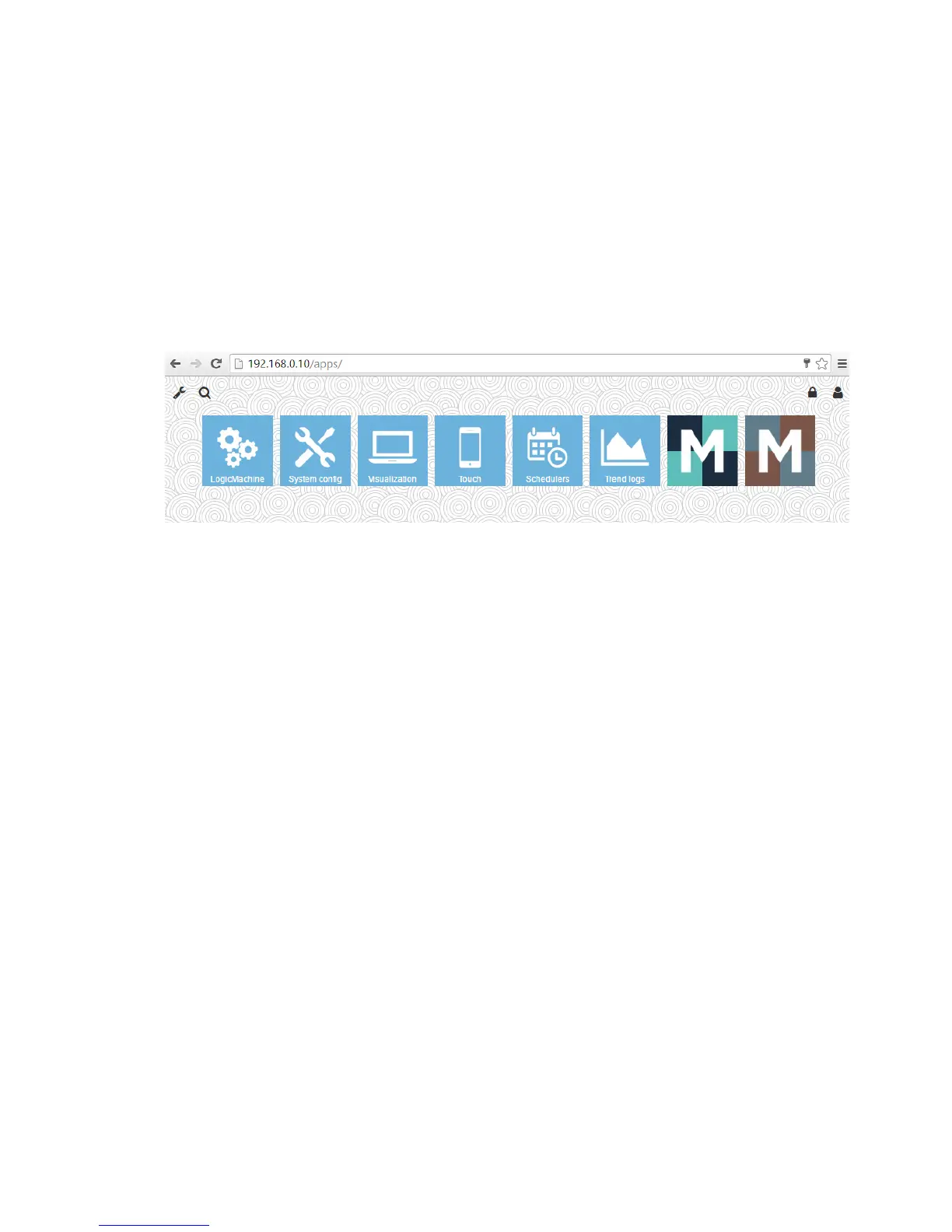

After successful login a default page appears.
 Logic Machine  visualization creator, scripts, object relations, alerts, KNX objects and
KNX objects, designing building view and visualization maps
 System config  IP and KNX specific configuration
 Visualization  defined visualization maps with objects
 Touch  Visualization system for iPhone/iPod/iPad/Android touch screen devices
 Schedulers  User defined schedulers
 Trend logs  Trends for data logs
 Mosaic app  Mosaic easy visualization creation and presentation apps
