200

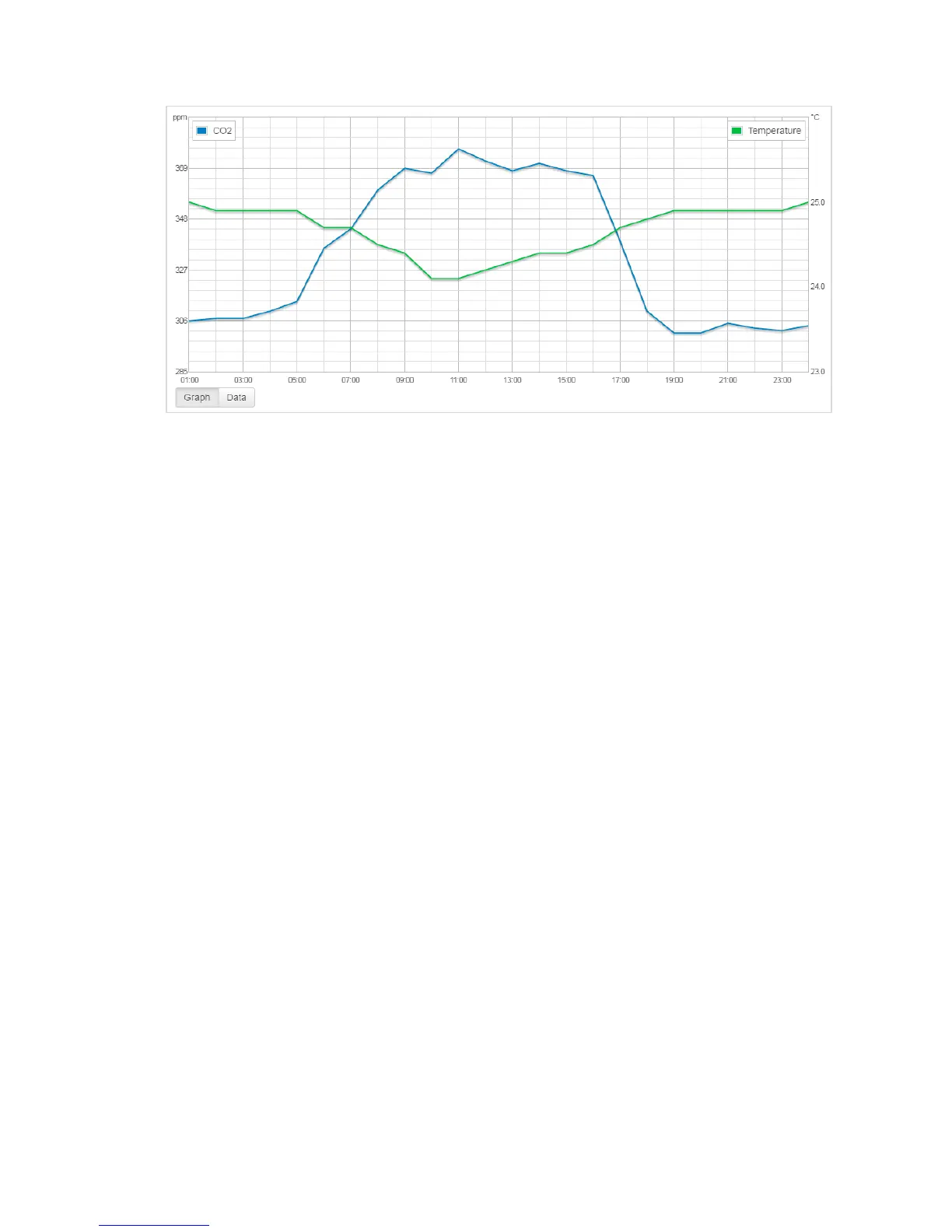

There is an automatic secondary axis  for two trends with different units / scales.

By clicking on Data button, data points will be shown in a way of table which can be later

exported as CSV file.
