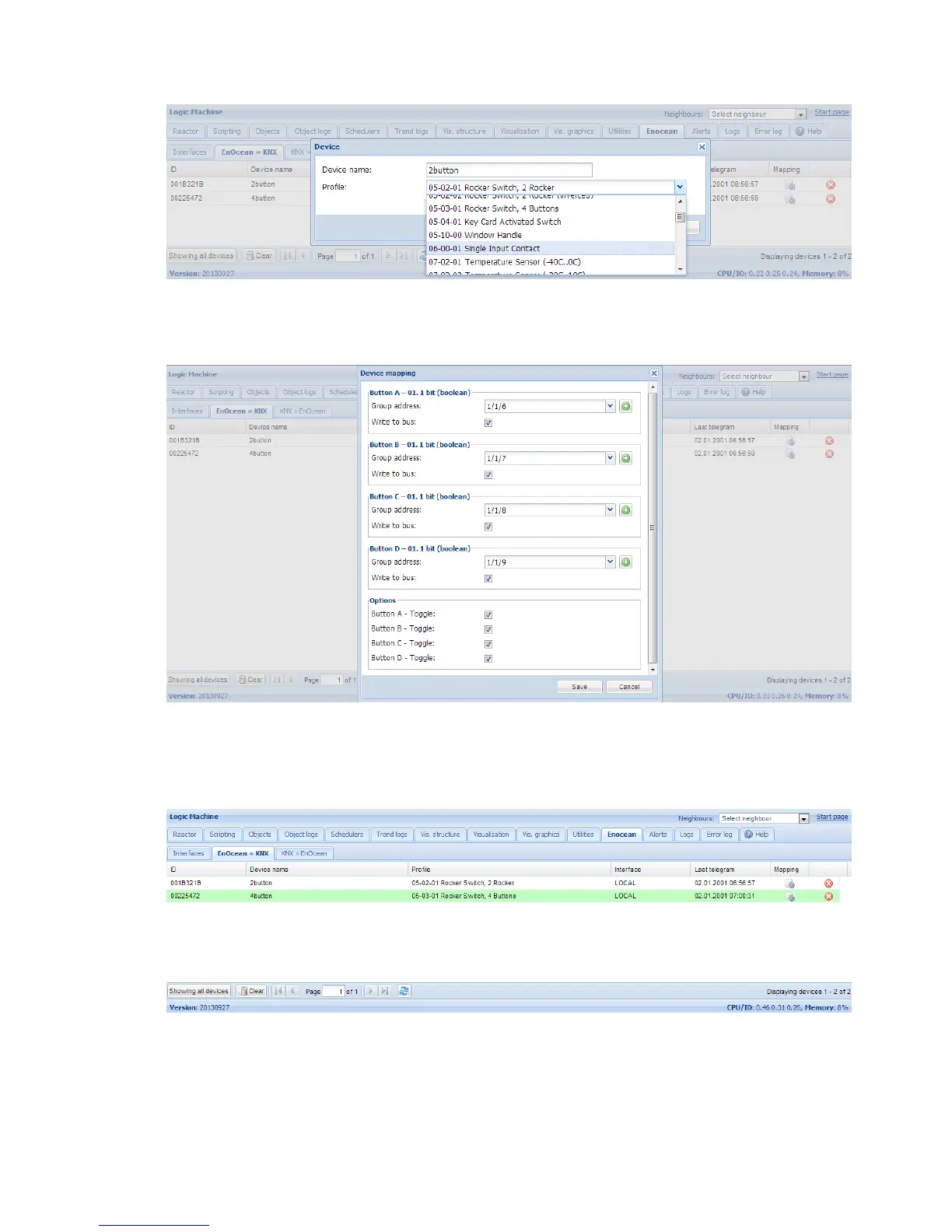

Once the device profile is set, you can map functionality of the specific device to KNX group

addresses by clicking on Mapping icon.

When EnOcean gateway received telegram from specific device, the respective row gets light

green.

Respective KNX group addresses get updated with the new values.
