285
Time time of telegram received
Type (RX/TX; Object/Device/Group/Control) type of telegram
Address group or physical device address the telegram was received to/from
Name name of the device
Command command received
Data data received

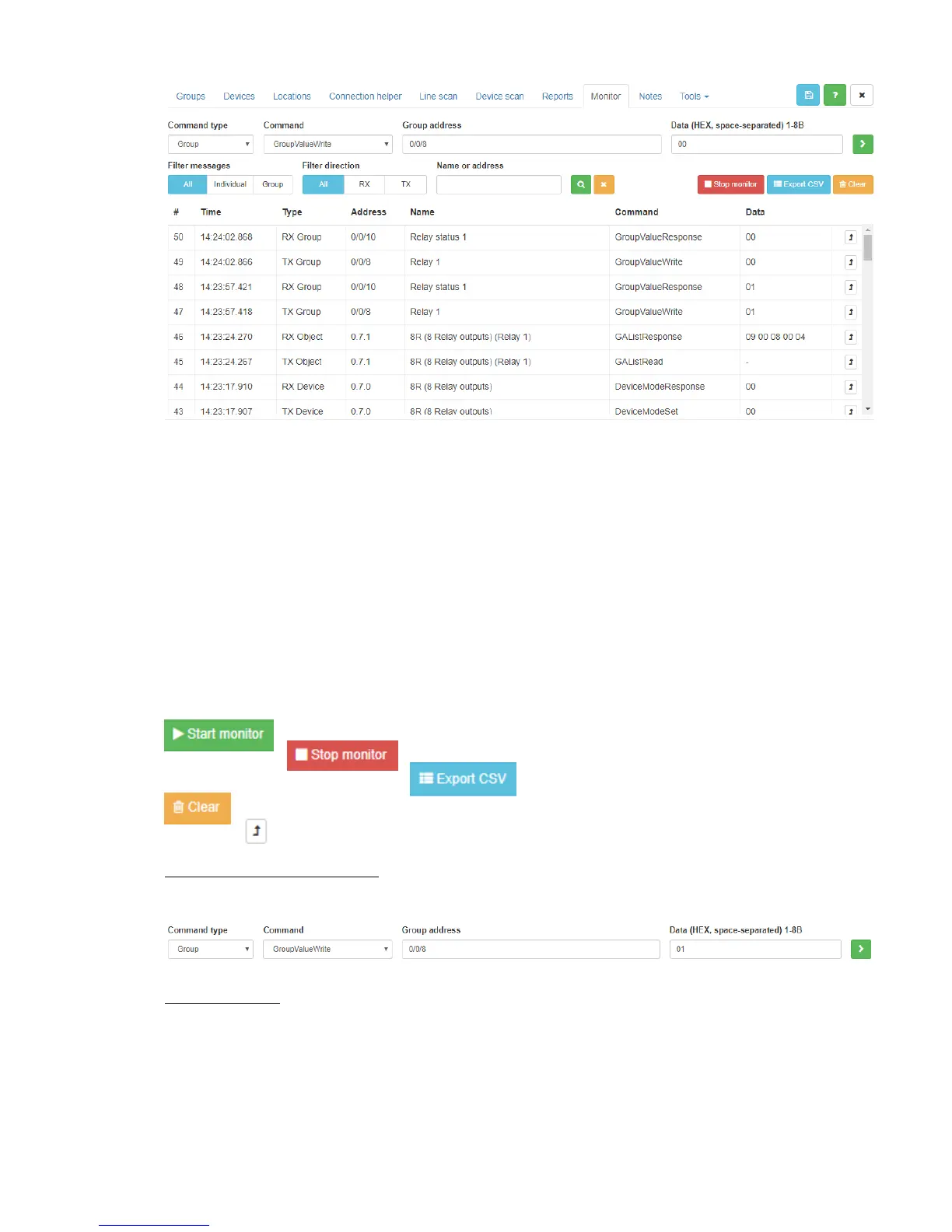

Start monitor to see real-time messages
Stop monitoring
Export monitoring results to CSV file
Clear the list
Fill the search fields with a respective data from a selected entry
Send a command to a bus line
Choose command type and other parameters and click on green arrow to send request
Command types
Object
ObjectValueRead - Request of Value for Object
ObjectValueResponse (1..8 bytes) – Response for ObjectValueRead command, return Value
for given Object
ObjectValueWrite (1..8 bytes) – Write Value to given Object
