EMC VNX Series

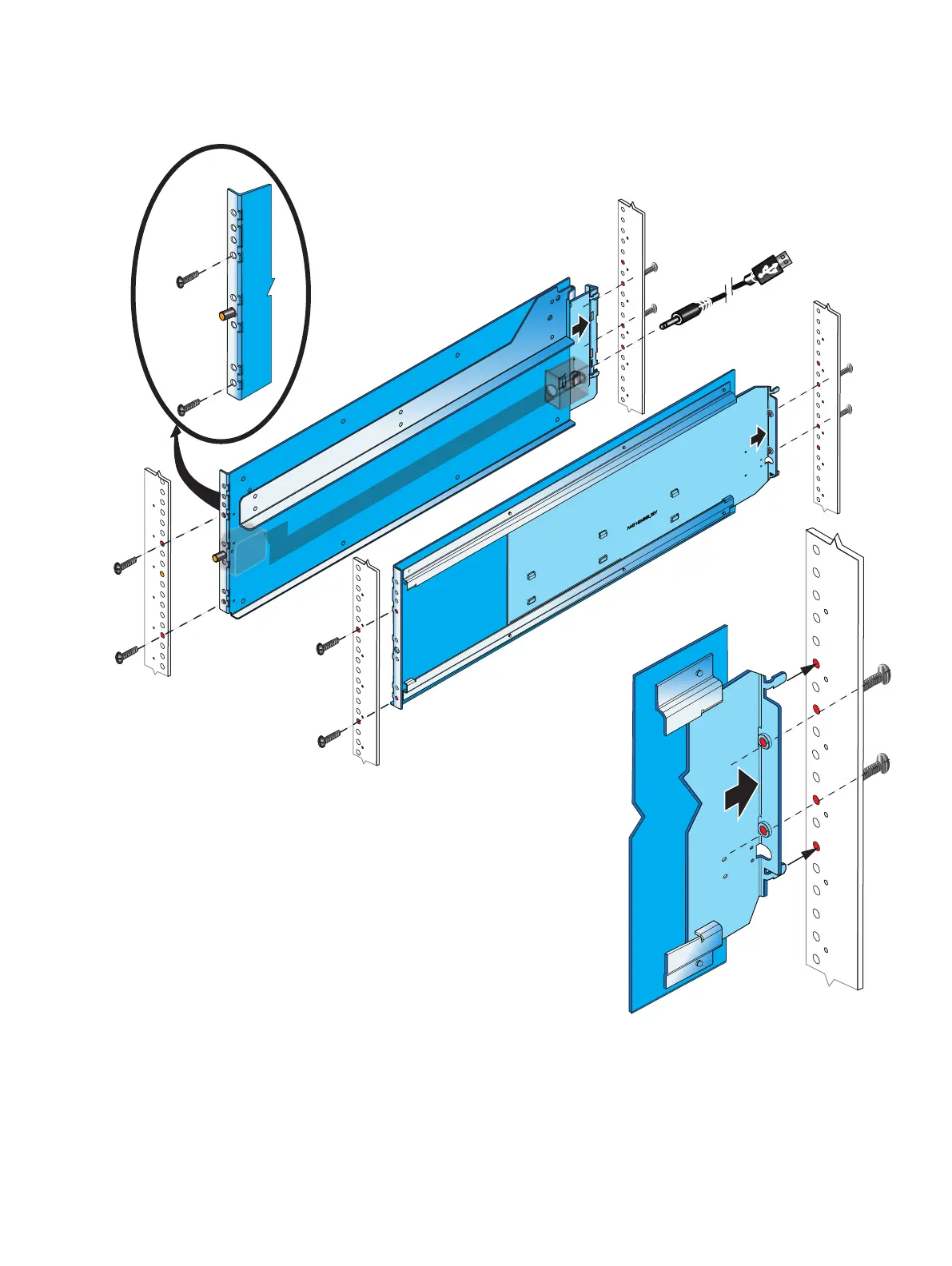

Figure 6 Installing the ganged rails
VNX-000366
Installing the blade enclosure 1 adjustable rails
The blade enclosure 1 2U adjustable rails are installed directly above the rails for blade
enclosure 0.
Assemble components in your cabinet
Installing the blade enclosure 1 adjustable rails 23
