Figure 35 Cable storage processors to blade 5
2
2
2
0
0
1
1
AC
!
2
2
2
0
0
1
1
1
2
Cabling SPs to the blade management modules
When cabling your system, the cables from the SP management modules always connect
to the highest numbered blade enclosure at port 0.
Cabling for one blade enclosure
Before you begin

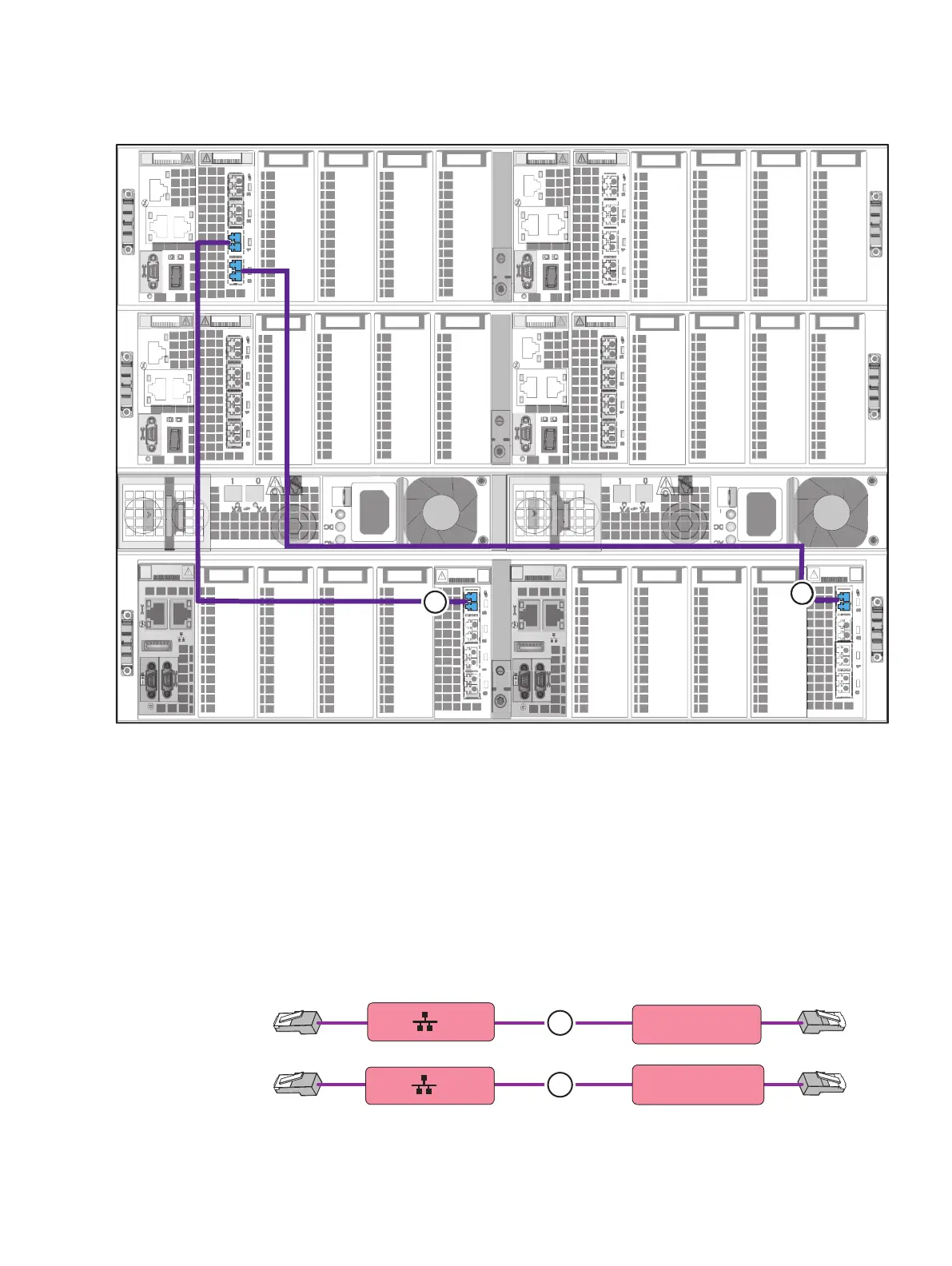

Locate the cables as shown in Figure 36 on page 49.
Figure 36
Blade enclosure cables
SP A MGMT
Blade Encl 0
MMA Port 0
SP B MGMT
Blade Encl 0
MMB Port 0
1
2
Refer to Figure 37 on page 50 when completing this task.
Cable your system
Cabling SPs to the blade management modules 49
