Figure 43 DPE Front LEDs (continued)
LEDs Location State/Color
SP Power 3 On/Solid green
DPE Power 4 On/Solid blue
DPE Fault 5 Off
Procedure
1. Verify that the DPE Power LED located on the front is solid blue and the DPE Fault is off
as shown in Figure 43 on page 57.
2. Verify that the SP Power LEDs on both SP A and SP B are solid green and the SP Fault/
Status LEDs are off as shown in Figure 43 on page 57.
If any fault LEDs are on, or if any power LEDs remain flashing after approximately 15
minutes of operation, contact your authorized service provider.
3. Ensure the power-up is complete before you continue with the next task.
Verifying Control Station status
Ensure that each Control Station is powered up correctly using the physical indicators on
each enclosure. The hardware information guide for your system provides more
information on all the LEDs.

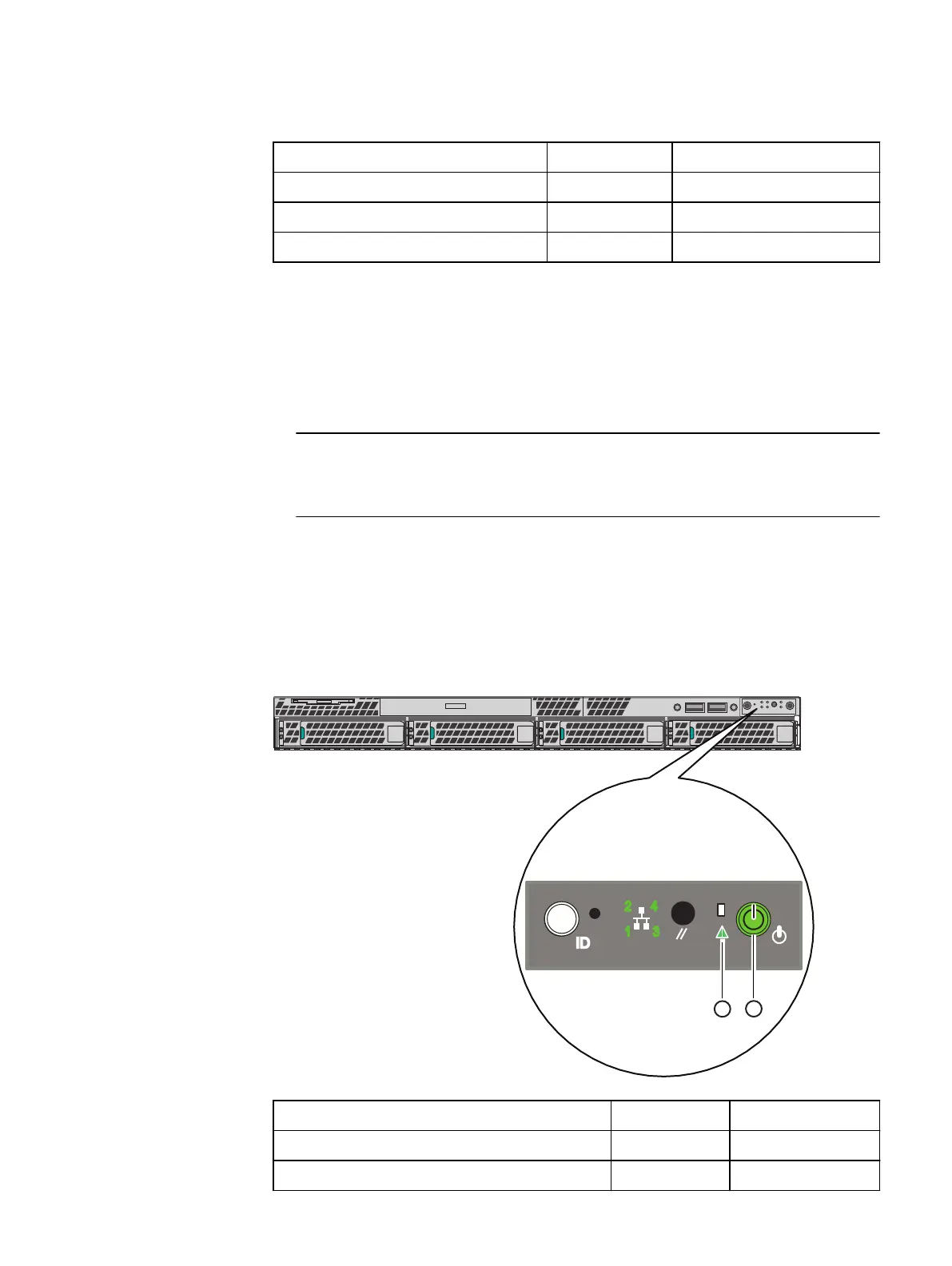

Figure 44 Control Station LEDs
LEDs Location State/color
Control Station power 1 On/green
Control Station status/fault 2 On/green
Power up
58 EMC VNX Series VNX5600 Unified Installation Guide
