EMC VNX Series Installation Guide

Procedure
1. Connect SP A MGMT to blade enclosure 0 MMA port 0. See cable 1.
2. Connect SP B MGMT to blade enclosure 0 MMB port 0. See cable 2.

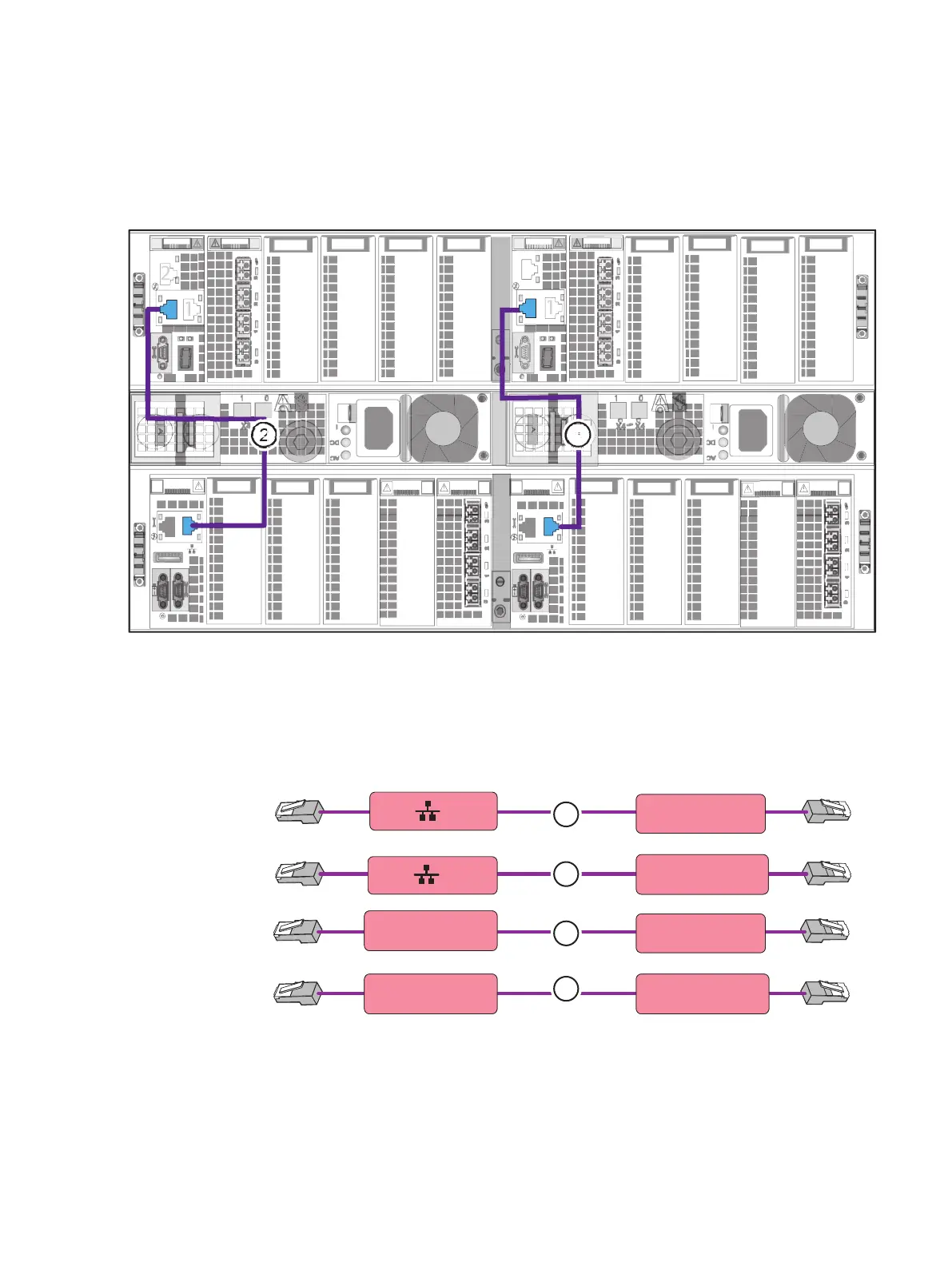

Figure 37 Cabling SPs to blade enclosure 0
2
0
0
1
2
Cabling for two blade enclosures
Before you begin
Locate the cables as shown in Figure 38 on page 50.
Figure 38 Blade enclosure cables
SP A MGMT
Blade Encl 1
MMA Port 0
SP B MGMT
Blade Encl 1
MMB Port 0
Blade Encl 1
MMA Port 1
Blade Encl 1
MMB Port 1
Blade Encl 0
MMB Port 0
Blade Encl 0
MMA Port 0
1
2
3
4
Refer to Figure 39 on page 51 when completing this task.
Procedure
1. Connect SP A MGMT to the highest blade enclosure, which is blade enclosure 1 port 0
on the A. See cable 1.
2. Connect SP B MGMT the highest blade enclosure, which is blade enclosure 1 port 0 on
the B side. See cable 2.
Cable your system
50 EMC VNX Series VNX5600 Unified Installation Guide

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
