EMC VNX Series Installation Guide

Figure 60 2U, 25 2.5" drive DAE LEDs (continued)
LEDs Location State/Color Description
DAE Power 2 On/Blue OK
Disk drive Fault 3 Off
On/Amber
OK
Fault has occurred
Disk drive Status/Activity 4 On/Blue OK
Verify 3U, 15 3.5" drive DAE status
Procedure
1. Verify that the status of the 3U DAE Power LED located on the front is solid blue and
the DAE Fault/Status LED is off as shown in Figure 61 on page 76.
2. If any fault LEDs are on, or if any power LEDs are flashing, contact your authorized
service provider.

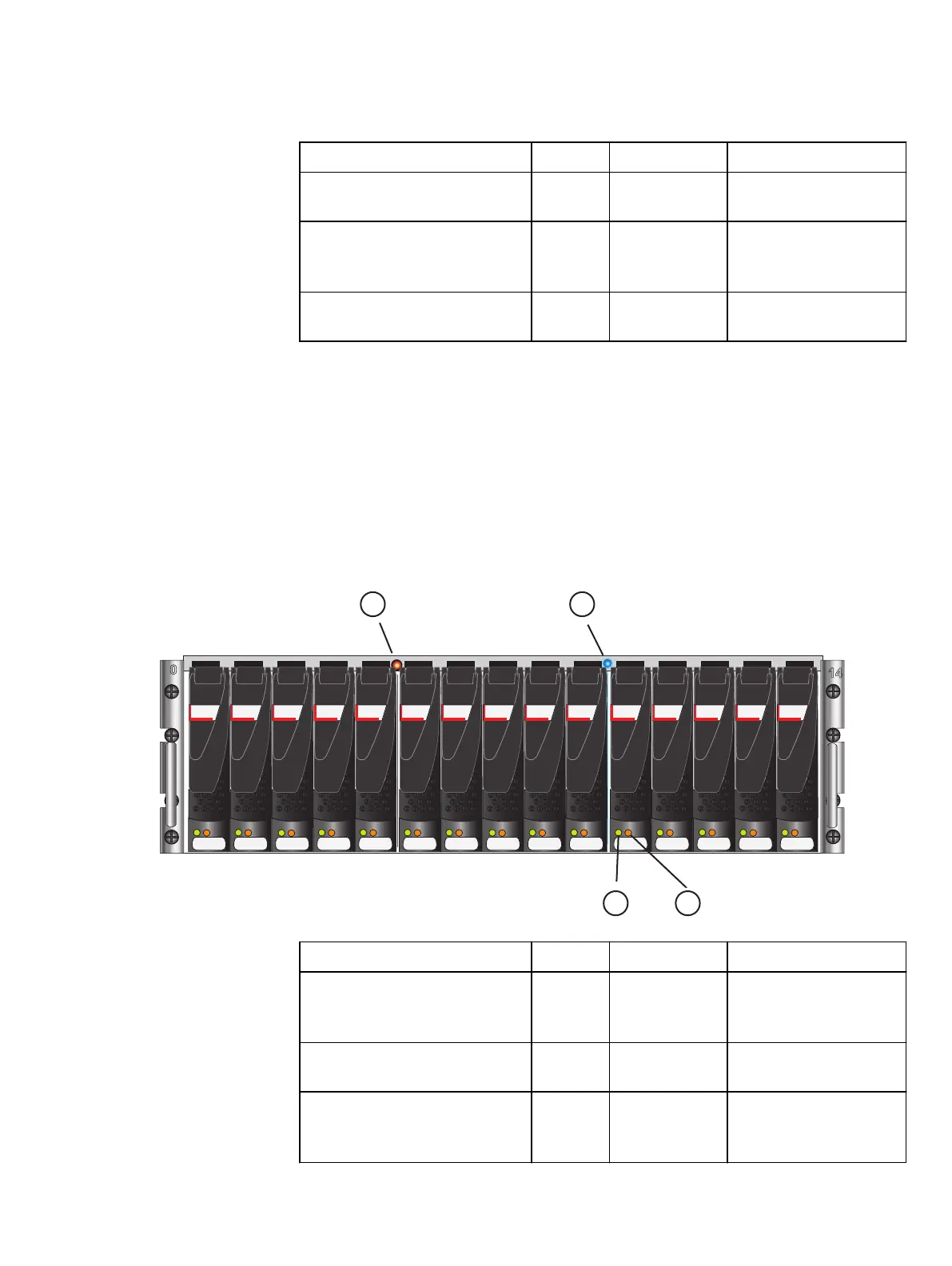

Figure 61 3U, 15 3.5” drive DAE LEDs
SAS SAS SAS SAS SAS SAS SAS SAS SAS SAS SAS SAS SAS SAS SAS
1 2
3
4
LEDs Location State/Color Description
DAE Fault/Status 1 Off
On/Amber
OK
Fault has occurred
DAE Power 2 On/Blue OK
Disk drive Fault 3 Off
On/Amber
OK
Fault has occurred
Add additional storage
76 EMC VNX Series VNX5600 Unified Installation Guide

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
