EMC VNX Series Installation Guide

b. Connect CS1 B cable to Blade Enclosure 0 MMB port 2 (cables 2 and 3).
Cabling storage processors to blades
Your system has two storage processors (SP A and SP B). You will connect each SP to
each equipped blade.
CAUTION
If you are connecting Fibre cables, ensure that you remove the dust caps from the cables
before installation.
Cabling storage processors to blade 2
Before you begin
If your VNX shipped un-cabled, locate the Fibre Channel cables required to connect blade
2.

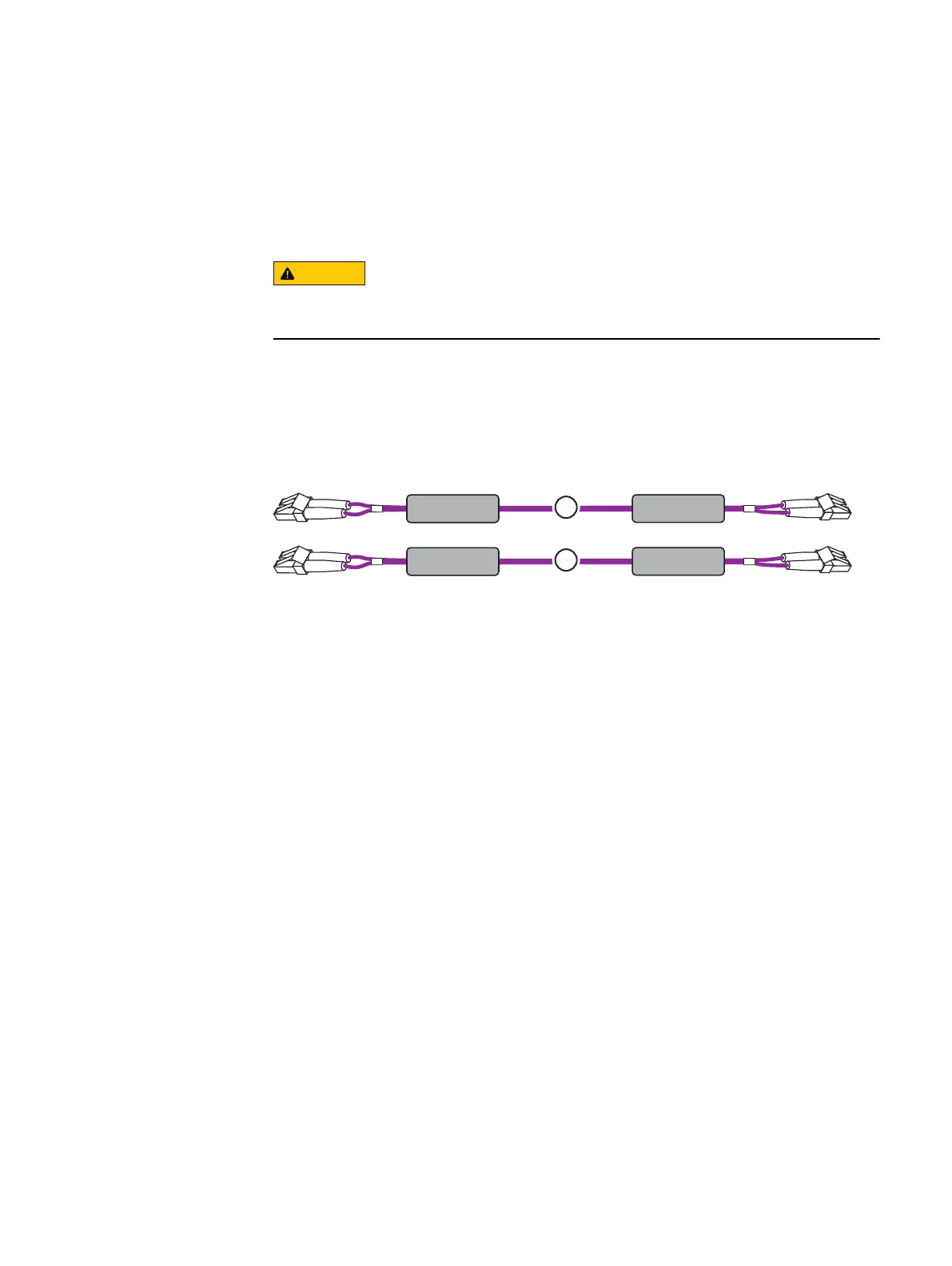

Figure 31 FC Cables
SP A A4
Port 0
Blade2 Slot 0
Port 0
Blade2 Slot 0
Port 1
SP B B4
Port 0
1
2
Refer to Figure 32 on page 46 when completing this task.
Procedure
1. Connect SP A slot A4 port 0 to blade 2 slot 0 port 0 as shown in Figure 32 on page
46. See cable 1.
2. Connect SP B slot B4 port 0 to blade 2 slot 0 port 1. See cable 2.
Cable your system
Cabling storage processors to blades 45

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
