EMC VNX Series Installation Guide

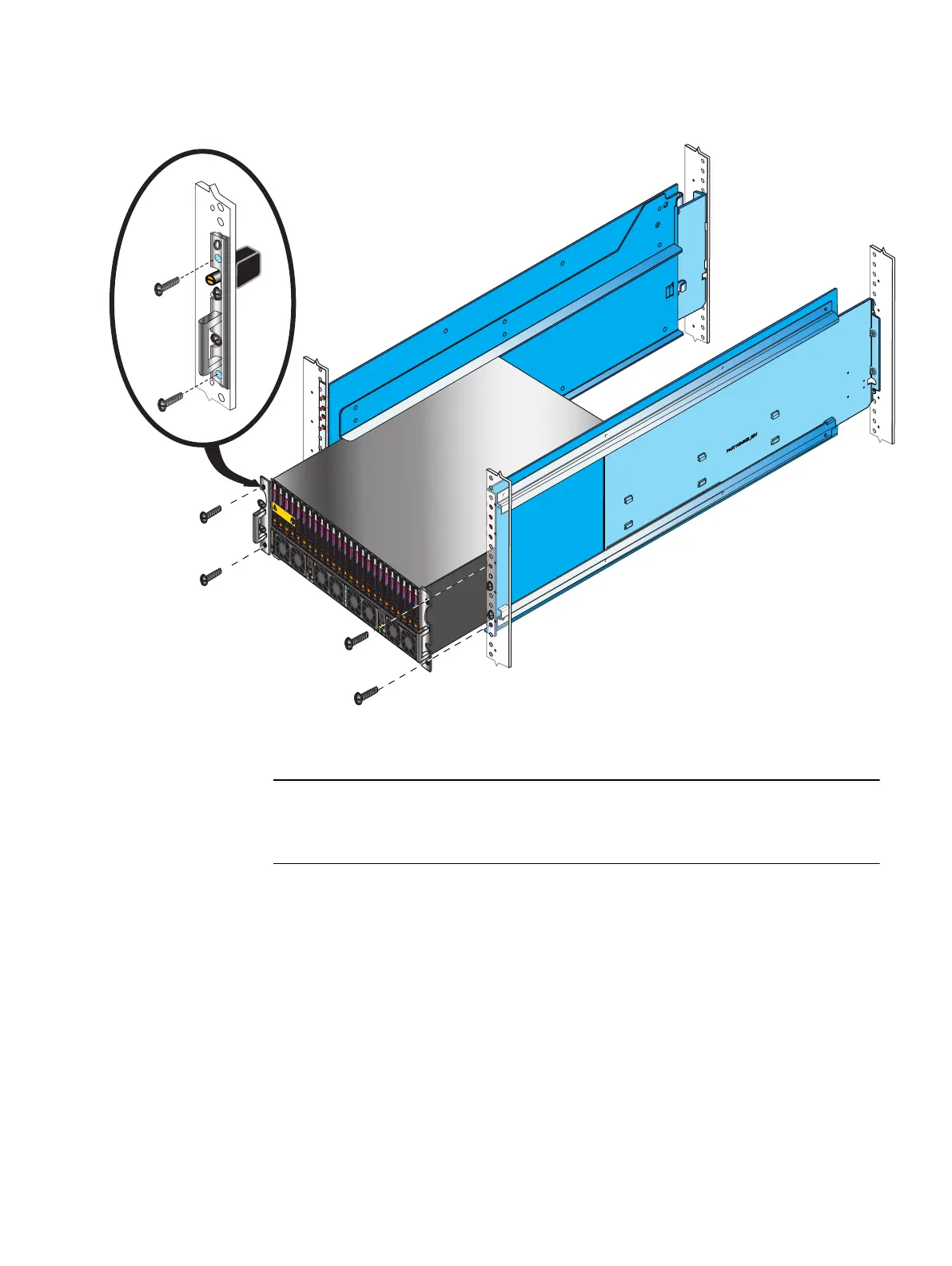

Figure 16 Installing the DPE
1
G
b
E
0
1
X4
6Gb SAS
6Gb SAS
2 3
1
0
1
G
b
E
0 1
X4
6Gb SAS
6Gb SAS
2
3
1
0
0
Will Make the Array Unusable
Caution: Array Software on drives 0-3. Removing or relocating them
A
B
SP
SP
Installing blade enclosure 0
Note
Do not lift the blade enclosure by its I/O module handles. Use two people to lift the BE on
each side.
Procedure
1. Slide blade enclosure 0 above the DPE into the ganged rails by inserting the
component into the tabs at the rear of the rails as shown in Figure 17 on page 34.
2. Insert the four screws previously removed from the mini-rack (but do not fasten) in a
diagonal pattern (bottom left, top right, bottom right, and top left) through the blade
enclosure, the cabinet or rack post, and then into the ganged rails as shown in Figure
17 on page 34.
Assemble components in your cabinet
Installing blade enclosure 0 33

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
