EMC VNX Series Installation Guide

Figure 33 Cable storage processors to blade 3
AC
!
1
0
0
2
2
1
2
Cabling storage processors to blade 4
Before you begin
If your VNX shipped un-cabled, locate the Fibre Channel cables required to connect blade
4.
SP A A4
Port 2
Blade4 Slot 0
Port 0
Blade4 Slot 0
Port 1
SP B B4
Port 2
1
2

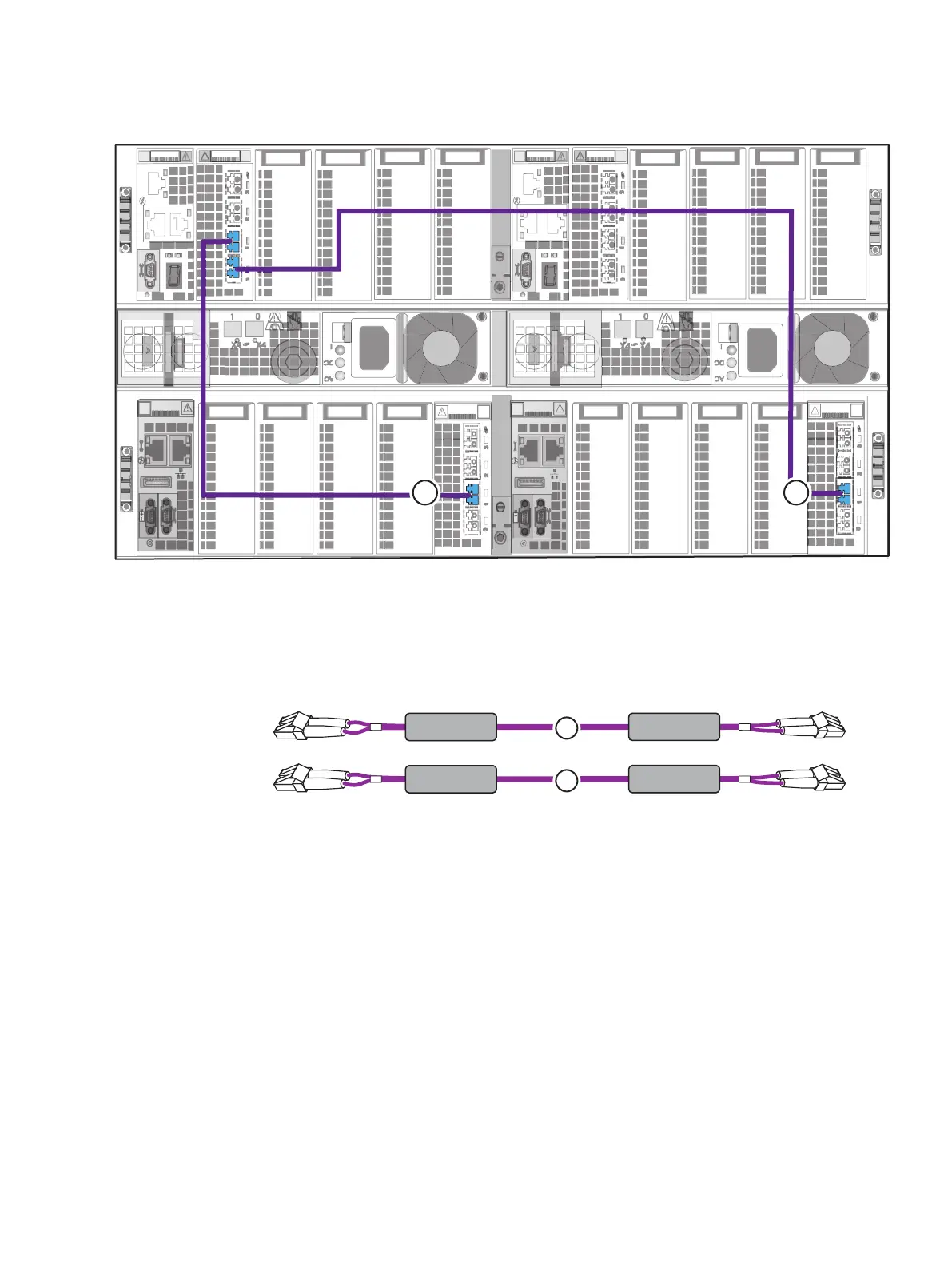

Refer to Figure 34 on page 48 when completing this task.
Procedure
1. Connect SP A slot A4 port 2 to blade 4 slot 0 port 0 as shown in Figure 34 on page
48. See cable 1.
2. Connect SP B slot B4 port 2 to blade 4 slot 0 port 1. See cable 2.
Cable your system
Cabling storage processors to blade 4 47

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
