EMC VNX Series Installation Guide

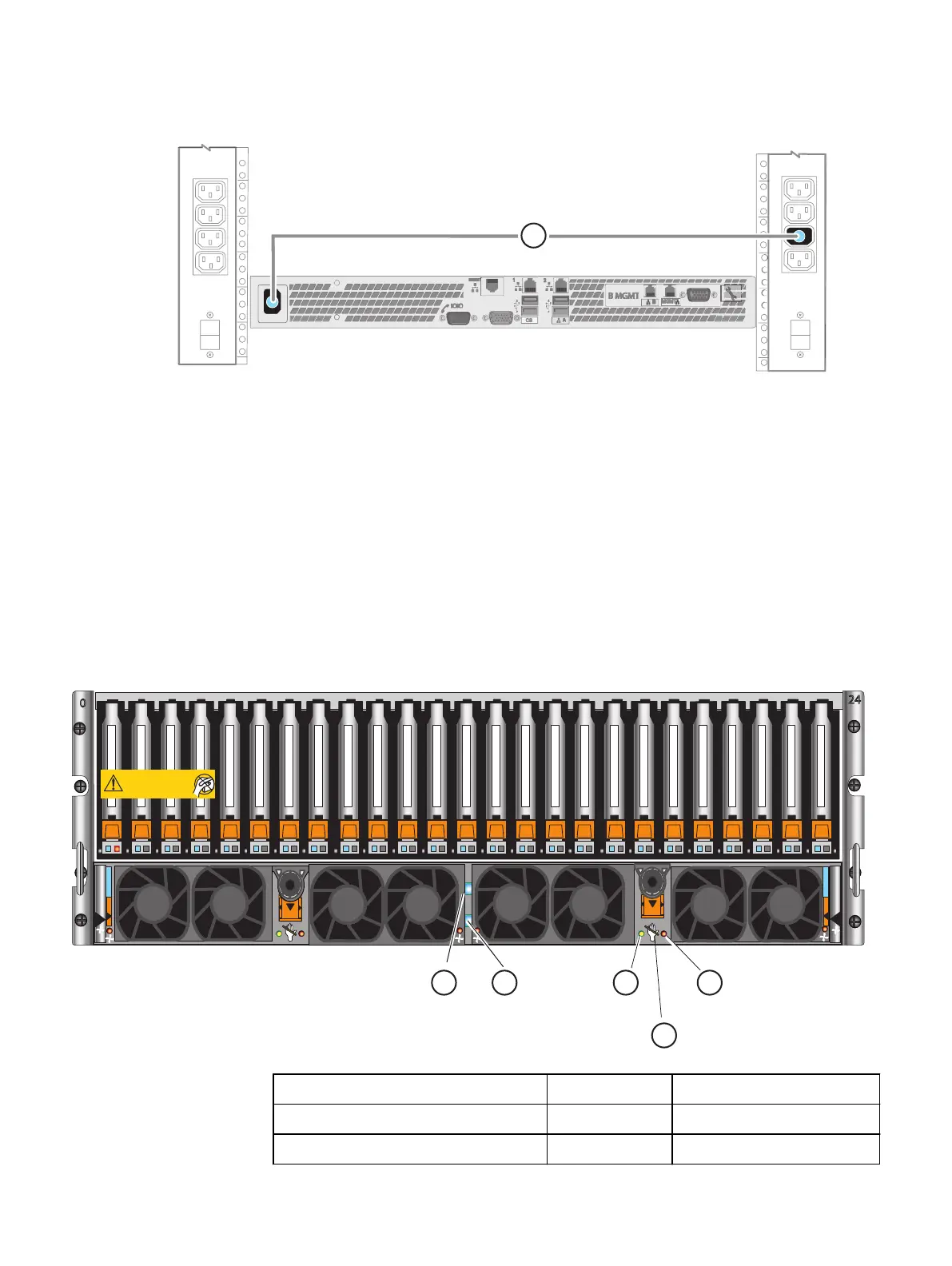

Figure 42 Connecting the gray power cable to CS1
CS
1
Verifying system status
While your system powers up, the software goes through a number of stages causing LED
activity lights to blink. You can verify that your system powered up correctly and
completely after 15 minutes. The hardware information guide for your system provides
details on all LEDs.
Verify DPE status
Ensure that the DPE is powered up correctly using the physical indicators on the
enclosure. The hardware information guide for your system provides more information on
all the LEDs.
Figure 43 DPE Front LEDs
A
B
SP
SP
Will Make the Array Unusable
Caution: Array Software on drives 0-3. Removing or relocating them
01
01
1
2
3
45
LEDs Location State/Color
SP Fault/status 1 Off
SP Unsafe to remove 2 Off
Power up
Verifying system status 57
