EMC VNX Series Installation Guide

Figure 32 Cable storage processors to blade enclosure 0
AC
!
1
0
0
2
2
1
2

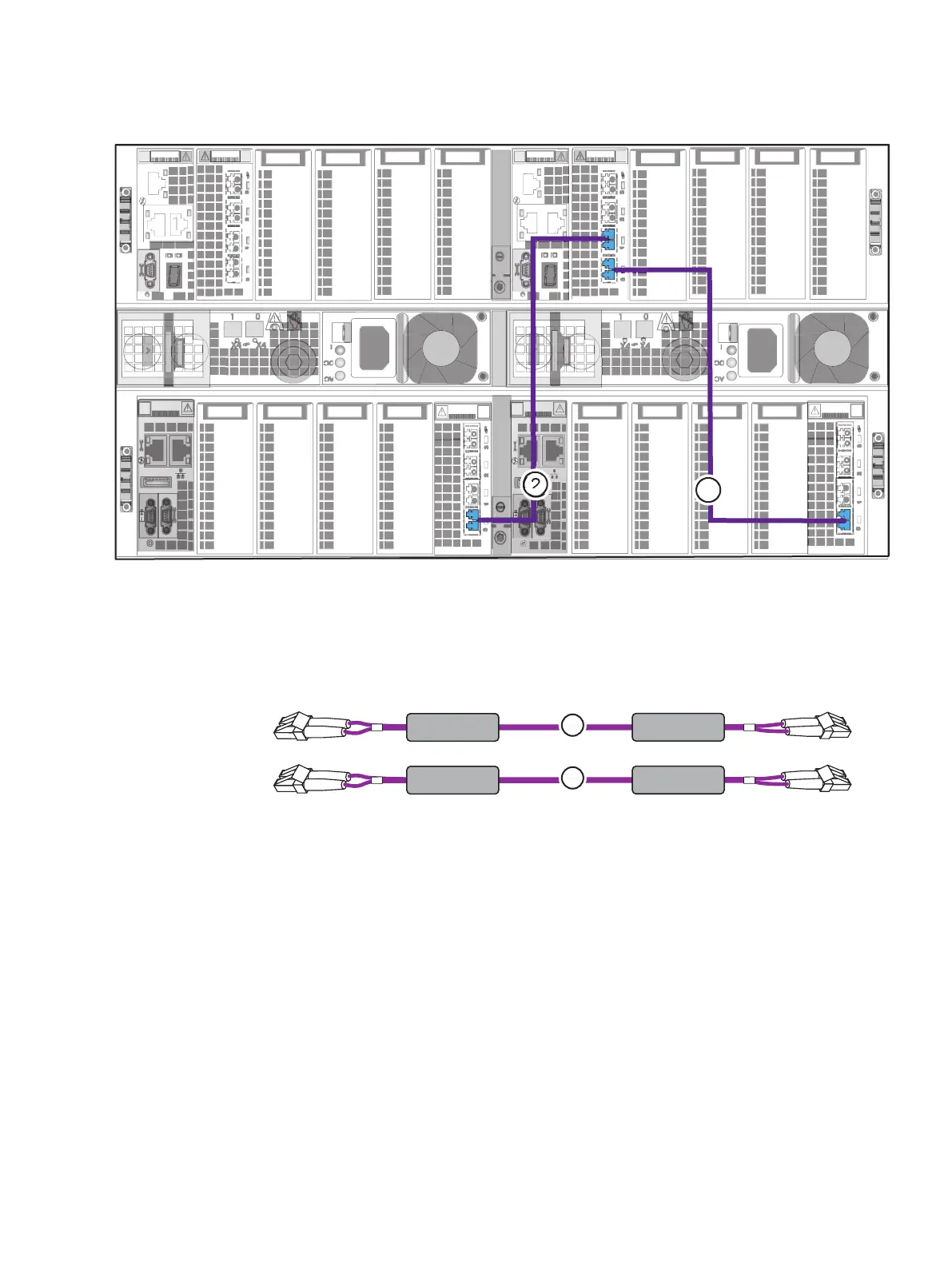

Cabling storage processors to blade 3
Before you begin
If your VNX shipped un-cabled, locate the Fibre Channel cables required to connect blade
3.
SP A A4
Port 1
Blade3 Slot 0
Port 0
Blade3 Slot 0
Port 1
SP B B4
Port 1
1
2
Refer to Figure 33 on page 47 when completing this task.
Procedure
1. Connect SP A slot A4 port 1 to blade 3 slot 0 port 0. See cable 1.
2. Connect SP B slot B4 port 1 to blade 3 slot 0 port 1. See cable 2.
Cable your system
46 EMC VNX Series VNX5600 Unified Installation Guide

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
