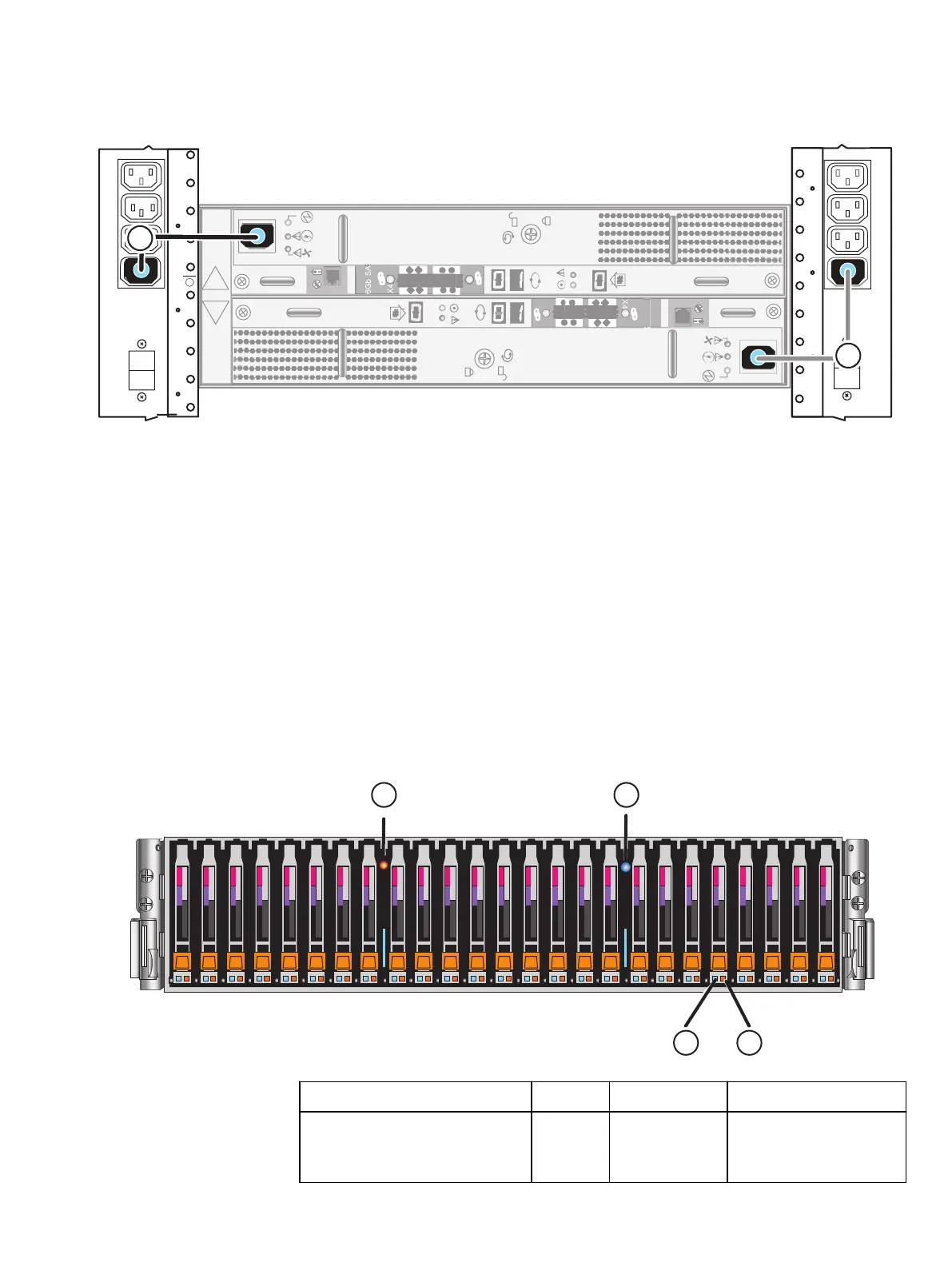

Figure 59 Power up a 3U DAE

6Gb SAS

Verify DAE status

Ensure that the optional DAEs powered up correctly using the physical indicators on each

enclosure. The hardware information guide for your system provides more information on

all the LEDs.

Verify 2U, 25 2.5” drive DAE status

Procedure

1. Verify that the status of the 2U DAE Power LED located on the front is solid blue and

the DAE Fault/Status is off as shown in Figure 60 on page 75.

2. If any fault LEDs are on, or if any power LEDs are flashing, contact your authorized

service provider.

Figure 60 2U, 25 2.5" drive DAE LEDs

1 2

LEDs Location State/Color Description

DAE Fault/Status 1 Off

On/Amber

Fault has occurred

Add additional storage

Verify DAE status 75
