EMC VNX Series Installation Guide

Figure 17 Installing blade enclosure 0
A
SP
1
G
b
E
0 1
X4
6Gb SAS
6Gb SAS
2
3
1
0
1
G
b
E
0 1
X4
6Gb SAS
6Gb SAS
2 3
1
0
0
Will Make the Array Unusable
Caution: Array Software on drives 0-3. Removing or relocating them
A
B
VNX-000424

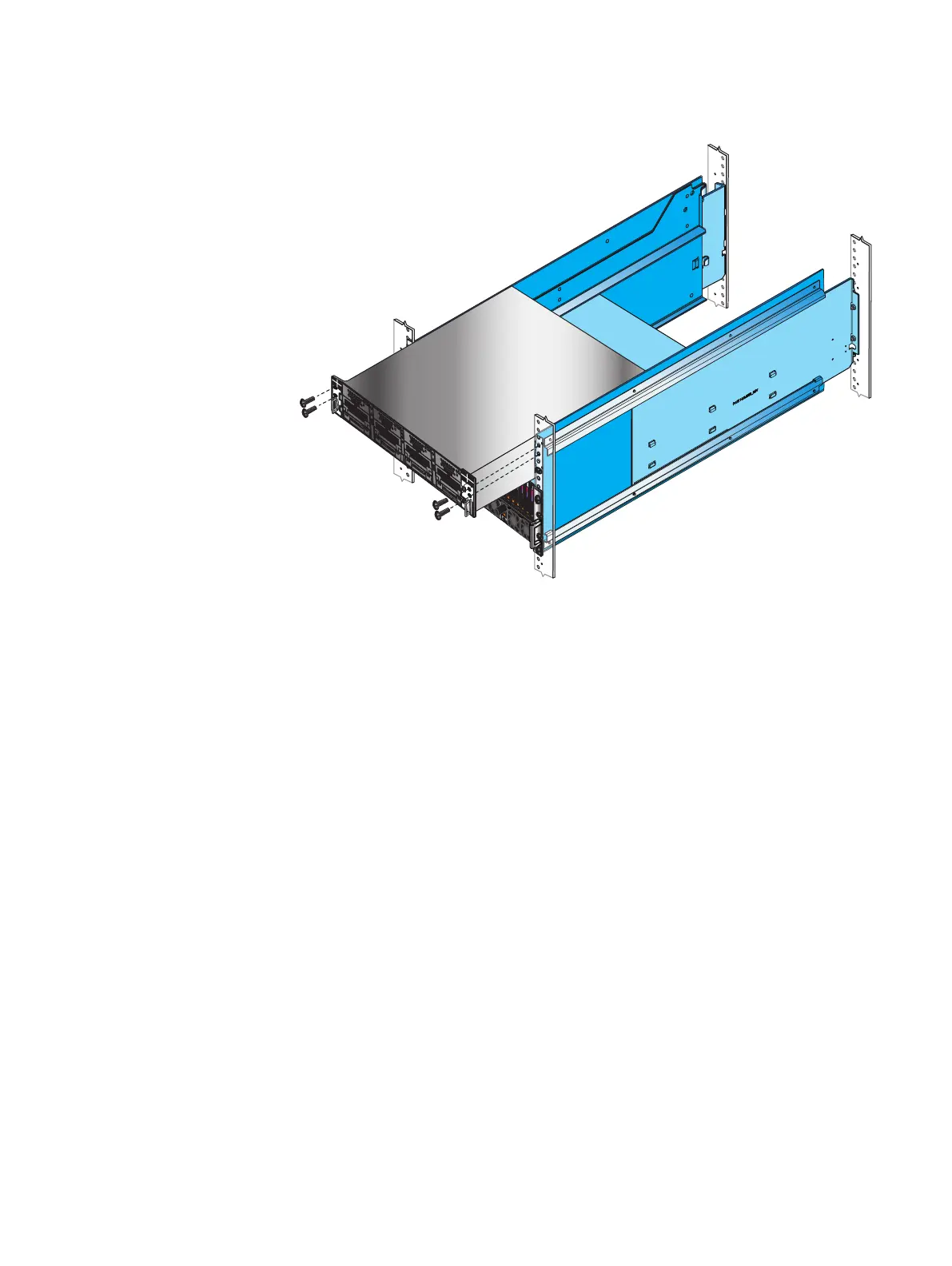

Installing blade enclosure 1
Refer to Figure 18 on page 35 while performing the procedure.
Procedure
1. Slide blade enclosure 1 above blade enclosure 0 into the adjustable rails by inserting
the component into the tabs at the rear of the rails.
2. Insert the four screws previously removed (but do not fasten) in a diagonal pattern
(bottom left, top right, bottom right, and top left) through the blade enclosure, the
cabinet or rack post, and then into the rail.
Assemble components in your cabinet
34 EMC VNX Series VNX5600 Unified Installation Guide

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
