Emerson Bettis RTS CL Series User Manual

February 2019
User Instructions
MAN-02-04-60-0350-EN Rev. 3
5
Section 2: General
General
2.2 Serial Number and Type Label
Each actuator of the RTS Compact Linear CL series carries a serial number. The serial
number is a 10-digit number that begins with the year and that can be read from the type
label (see Figure 3) of the actuator (the type label is located next to the handwheel – see
Figure 4).
Using this serial number, Emerson can uniquely identify the actuator (type, size, design,
options, technical data and test report).

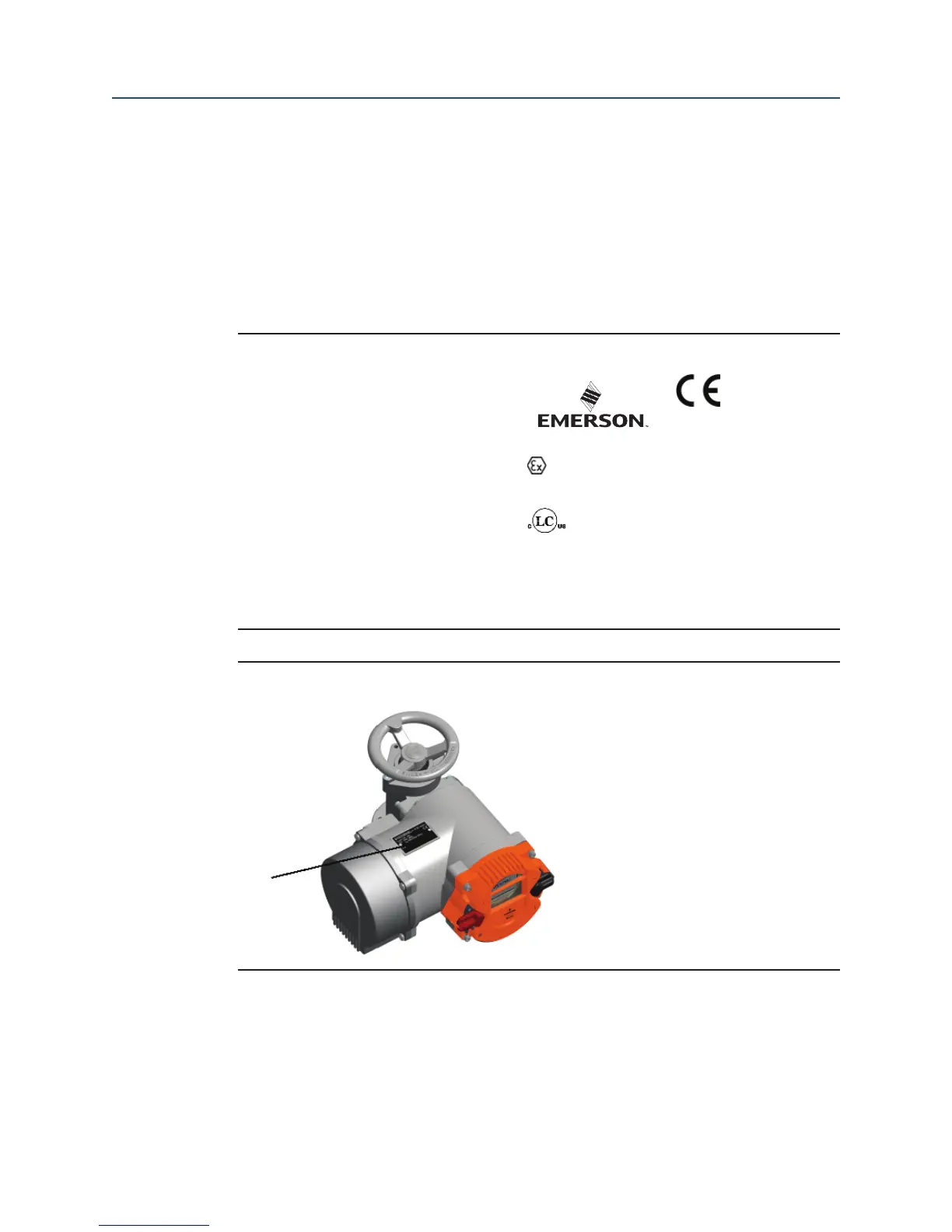

Figure 3 Bettis RTS Tag and Serial Number
180966
/
1
No.:
18113E04275
Type:
CL-15A-1M0HE
0,17-4,8mm/sec
75mm
1
5,7-451sec
IP68
Open:
15,0kN
Close:
15,0kN
TÜV-A16ATEX0007X
Tamb-40..+60°C
2018
II 2 G Ex de IIC T4 Gb
S2-15min
1026
S4-1200c/h - 40%ED
1x115V-230V +/-10% AC/D
1,47A/230VAC
I :
N
LC16.13198-1S
AEx de IIC T4 Gb
19200 Northwest Fw
y,
Houston
,
TX 77065
Class 1 Div 1 & 2 Group D
IECEx LC 17.0003X
Ex de IIC T4 Gb
Figure 4 Label 1 - Type Label
1
2.3 Operating Mode
RTS Compact Linear CL actuators are suitable for open-loop control (S2 operating mode -
on/off duty) and closed-loop control (S9 operating mode - modulating duty) according to
EN 60034-1.
