Emerson Bettis RTS CL Series User Manual

February 2019
User Instructions
MAN-02-04-60-0350-EN Rev. 3
61
Section 8: Status Area
Status Area
Section 8: Status Area
The status area presents current process and diagnostic data. There data is read-only.
To access the status area, move the control switch in the direction where the selector
switch should be in the neutral position or in the remote position.
The status area is divided into 2 sub-areas:
• Status
• History
8.1 Status
8.1.1 Status – Binary Outputs
Display of binary outputs: The display shows output control as opposed to output
status, i.e. the supply of the binary outputs is ignored. A switched output is
represented by 1.

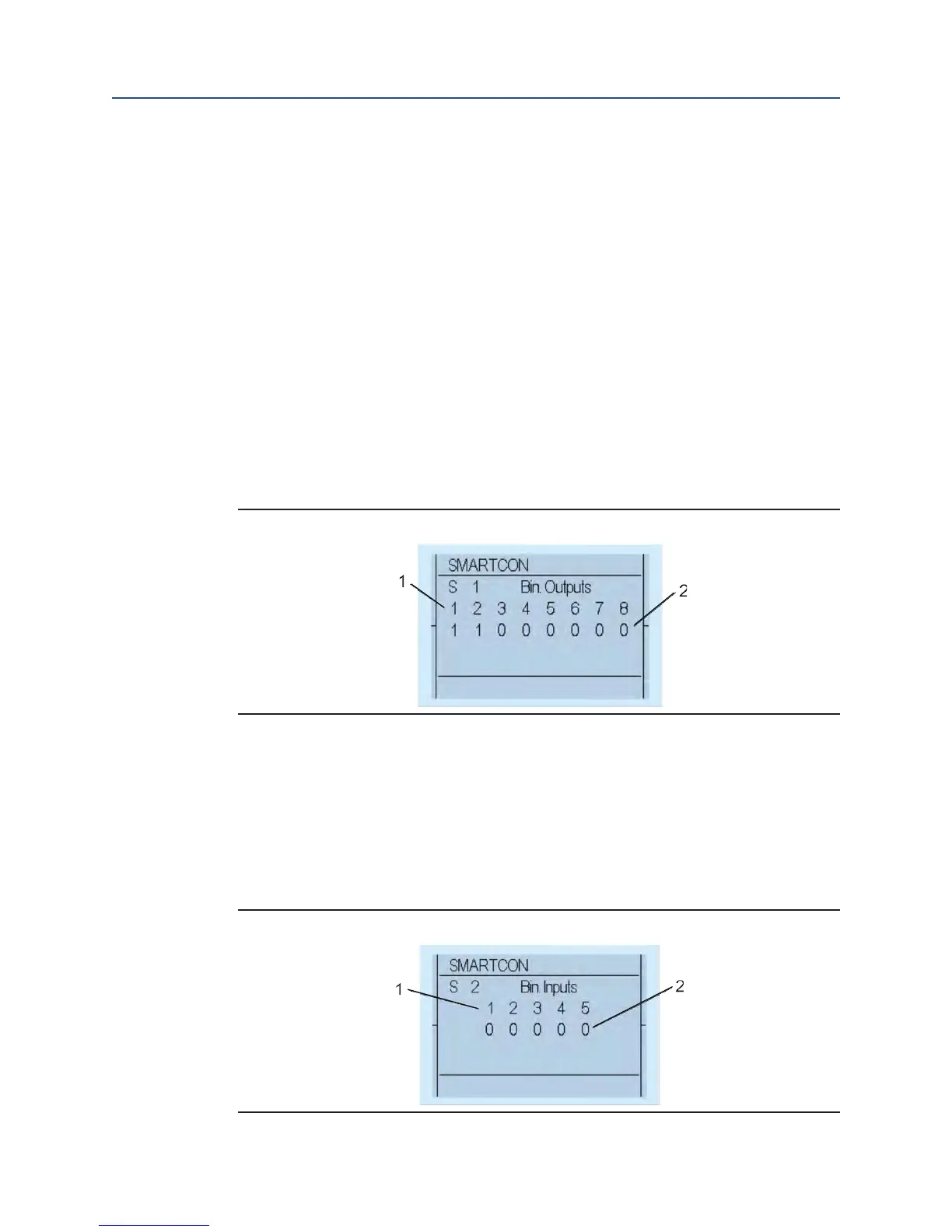

Figure 55 Binary Output Display
Display Overview:
1. Output Number
2. Signal (0 = Low; 1 = High)
8.1.2 Status – Binary Inputs
Display of binary inputs: A set input is represented by 1.
Figure 56 Binary Input Display
