Table 32. Binary Outputs
Characteristic Value
Count 8
Power supply
24VDC nominal range: 11. . . 35VDC
(either from internal or external)
Max voltage drop at set output 1 V
Output voltage at non-set output <1 V
Maximum current per output: 500mA (short circuit proof)
Maximum permissible total current for all outputs: 4A
Fuse (Fuse F2, see Figure 68) 4 A slow (Littelfuse 454 NANO2 Slo-Blo®)
Binary outputs with external supply are separated from other controllers via optocouplers.
16.2 Binary Inputs
Table 33. Binary inputs
Characteristic Value
Count 5
Nominal voltage 24VDC towards common ground
Thresholf voltage for input set >10 V max. (8.5V typ.)
Treshold voltage for input not set <10 V
Maximum voltage: 30VDC
Current consumtion at 24VDC 10.5mA typ.
Binary inputs are separated from other controllers via optocouplers.

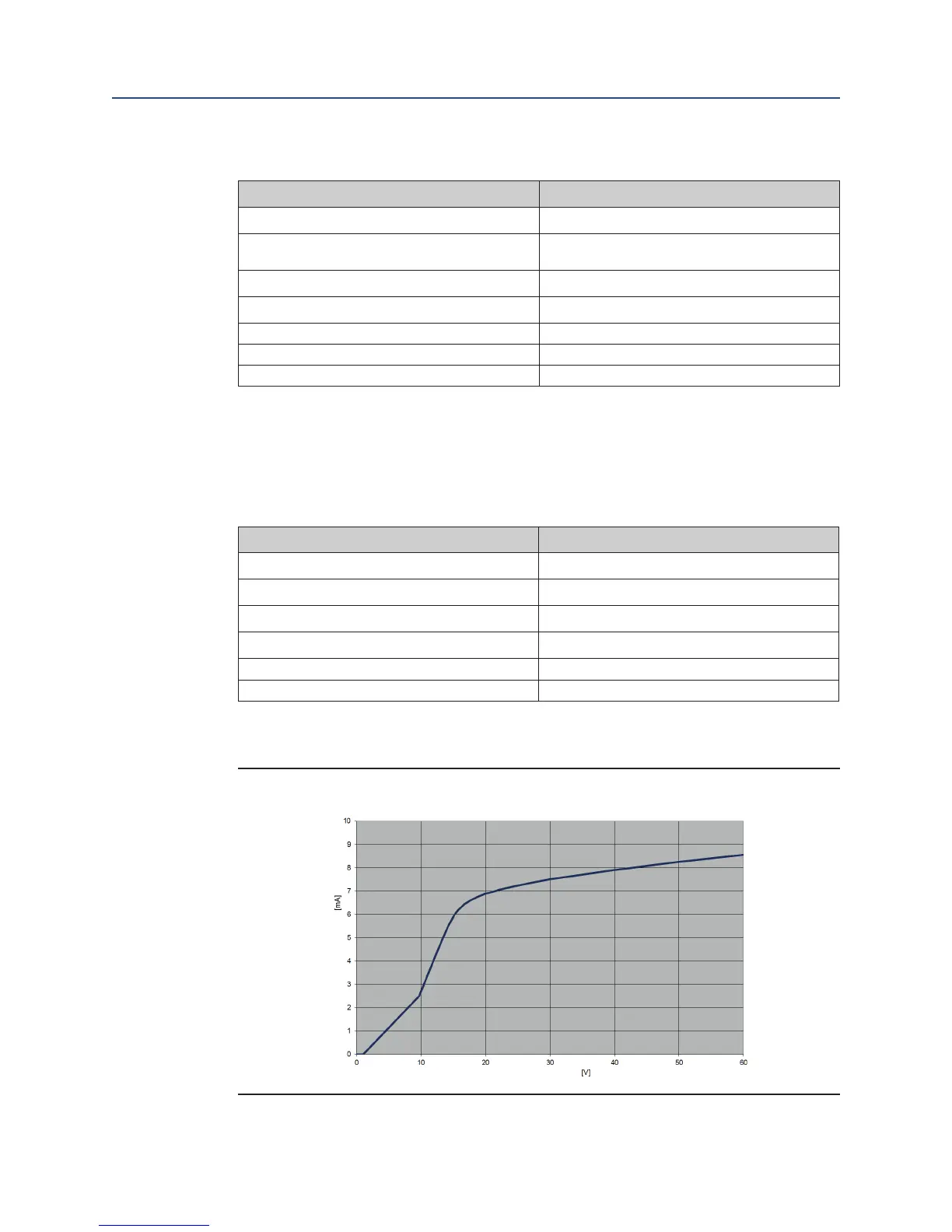

Figure 66 Current/Voltage Relation
Input Voltage
Input Current Typ.
