Section 2: General
General
2.9 Delivery Condition of the Actuators
For each actuator, an inspection report is generated upon nal inspection. In particular, this
comprises a full visual inspection, calibration of the torque measurement in connection
with an extensive run examination and a functional test of the micro controllers.
These inspections are conducted and documented according to the quality system and can
be made available if necessary. The basic setting of the end position must be performed
after assembly on the actuator.
CAUTION: OBSERVE COMMISSIONING INSTRUCTIONS
Commissioning instructions (see Section 5) must be strictly observed. During assembly
of the supplied valves at the factory, end postions are set and documented by attaching a
label (see Figure 7). During commissioning at the plant, these settings must be veried.
2.10 Information Notice (Tag)
Each actuator is provided with a bilingual tag containing key information, which is attached
to the handwheel after nal inspection. This tag also shows the internal commission
registration number (see Figure 7).

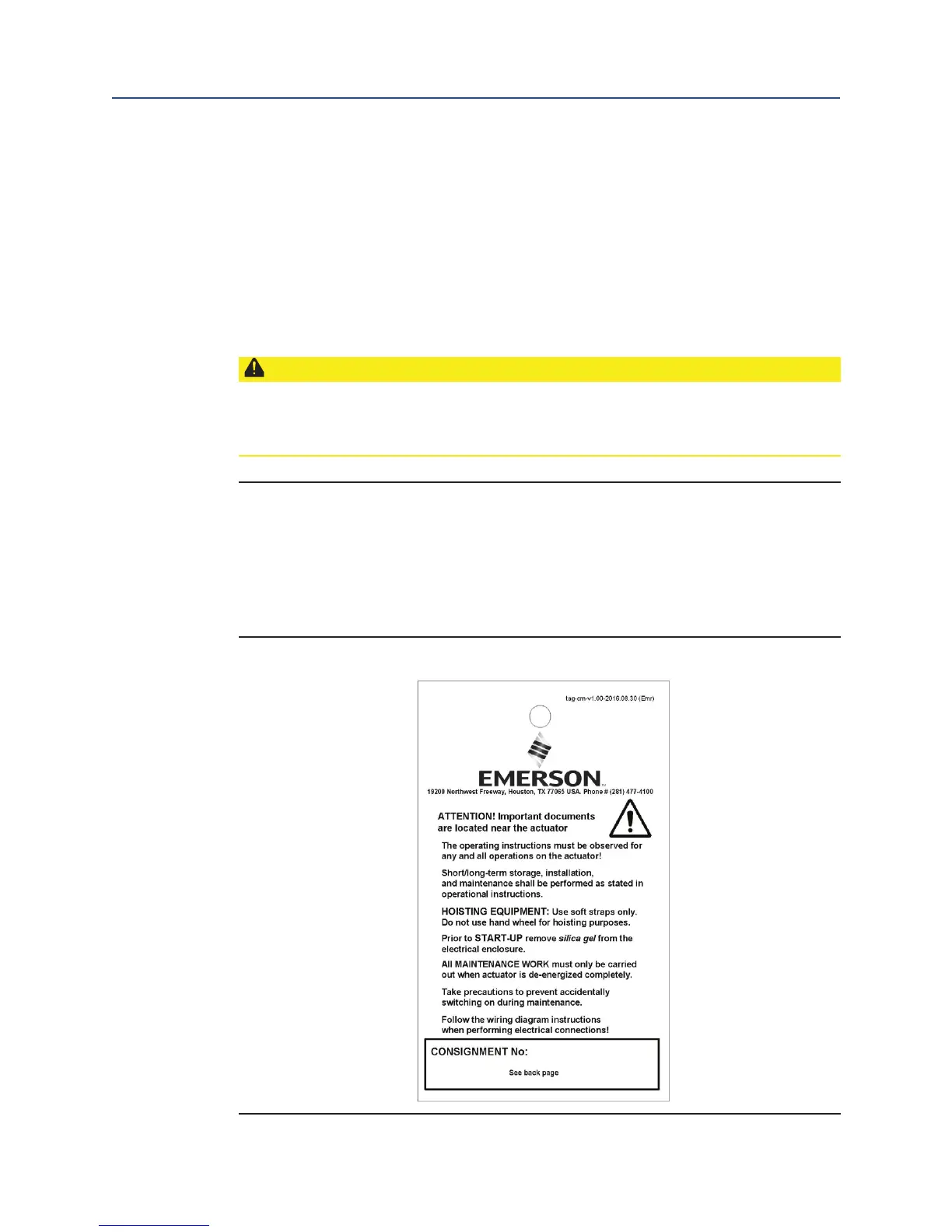

Figure 7 Tag
