Section 13: Fuses
Fuses
Section 13: Fuses
The logic board of the controller cover (see Figure 63) features two miniature fuses for the
control lines.

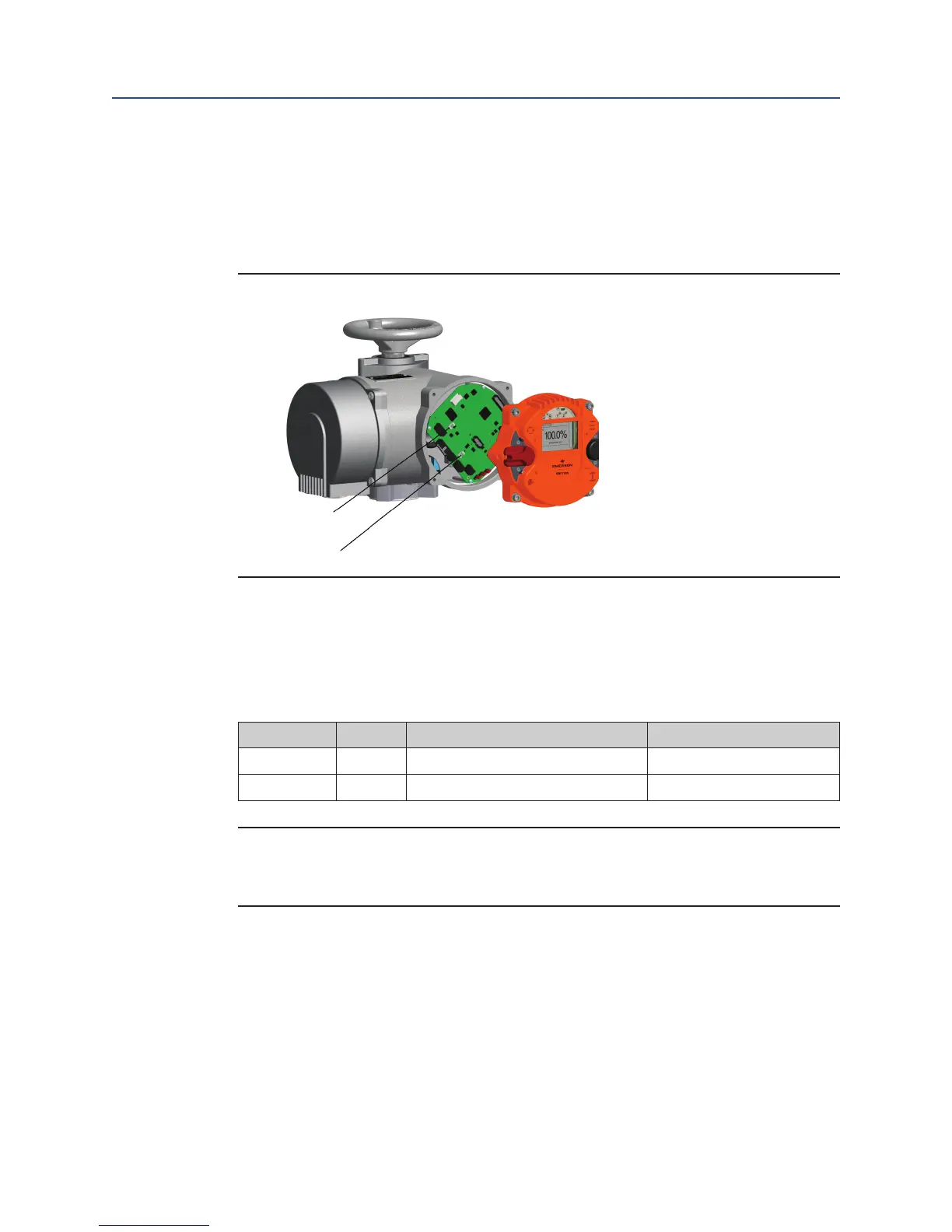

Figure 63 Fuse Location
F2
F1
Display Overview:
1. Fuse F10a for the binary outputs
2. Fuse F10b fuse for auxiliary supply
Table 30. Fuses on the Logic Board
Fuse Value Manufacturer List of spare parts
F10a 1AT Littelfuse 454 NANO2 Slo-BloQR träge C302c
F10b 4AT Littelfuse 454 NANO2 Slo-BloQR träge C302d
NOTE:
The frequency inverter is protected by an input fuse and the explosion-proof version also
has a thermal fuse. (see Section 2.7.3).
